Beschreibung - TECHCON SYSTEMS TS5420 Manuel D'utilisation

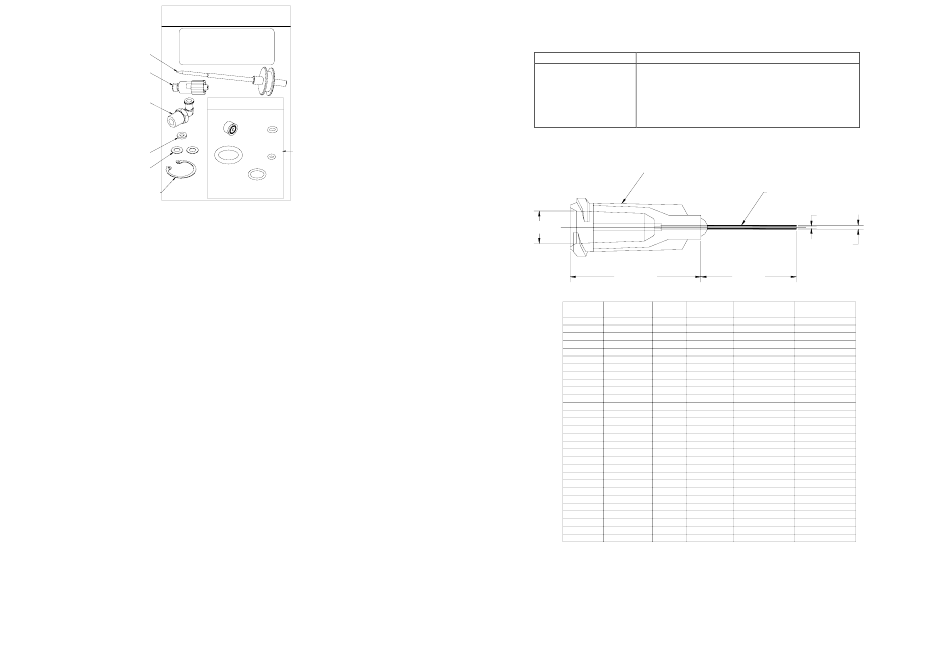

5420-VALVEKIT
REPAIR KIT, NEEDLE VALVE
NEEDLE/PISTON ASSY (5)
Nadel/Kolben (5)
LUER ADAPTER ASSY (9)
Luer-Lock Adapter (9)
FLUID INLET FITTING
LL-Adapter/NPT
Nylon-
Dichtungsscheibe
NYLON WASHER (12)
(12)
MYLAR WASHER (14)
Mylar-Dichtungsscheibe (14)
Haltering (3)
RETAINING RING (3)
Abb. 6.0
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
23
Dichtungssatz
SEAL KIT
9.2 Zubehör
Tisch-Montagesatz:
TEILENUMMER

BESCHREIBUNG

918-033-000 Ventilständer
918-000-012 Klemmhalterung
1212-000-008 Montagestange
(diese drei Komponenten sind für einen Tisch-
Montageständer erforderlich)
Grafik und Tabelle TE Nadel
HUB (POLYPROPYLENE)
Nabe (Polypropylen)
(Ø.170)
(.684±.025)
PART # COLOR HUB GAUGE "C" DIM.
TE714050 OLIVE 14 1/2"
TE714100 OLIVE 14 1.0"
TE714150 OLIVE 14 1-1/2"
TE715050 AMBER 15 1/2"
TE715100 AMBER 15 1.0"
TE715150 AMBER 15 1-1/2"
TE718050 GREEN 18 1/2"
TE718100 GREEN 18 1.0"
TE718150 GREEN 18 1-1/2"
TE720050 PINK 20 1/2"
TE720100 PINK 20 1.0"
TE720150 PINK 20 1-1/2"
TE721050 PURPLE 21 1/2"
TE721100 PURPLE 21 1.0"
TE721150 PURPLE 21 1-1/2"
TE722050 BLUE 22 1/2"
TE722100 BLUE 22 1.0"
TE722150 BLUE 22 1-1/2"
TE723050 ORANGE 23 1/2"
TE723100 ORANGE 23 1.0"
TE723150 ORANGE 23 1-1/2"
TE725050 RED 25 1/2"
TE725100 RED 25 1.0"
TE725150 RED 25 1-1/2"
TE727025 CLEAR 27 1/4"
TE727050 CLEAR 27 1/2"
TE730025 LAVENDER 30 1/4"
TE730050 LAVENDER 30 1/2"
TE732025 YELLOW 32 1/4"
Techcon Systems is an OK International Brand
Copyright © All Rights Reserved • TS941 Rev 04/04
24
Kanüle (Edelstahl)
CANNULA (STAINLESS STEEL)
"A" DIM.
"B" DIM.
"C" DIM.
Ø"A" DIM. Ø"B" DIM.
0.0610/0.0650 0.0820/0.0840
0.0610/0.0650 0.0820/0.0840
0.0610/0.0650 0.0820/0.0840
0.0525/0.0555 0.0715/0.0725
0.0525/0.0555 0.0715/0.0725
0.0525/0.0555 0.0715/0.0725
0.0315/0.0345 0.0495/0.0505
0.0315/0.0345 0.0495/0.0505
0.0315/0.0345 0.0495/0.0505
0.0230/0.0245 0.0355/0.0360
0.0230/0.0245 0.0355/0.0360
0.0230/0.0245 0.0355/0.0360
0.0195/0.0210 0.0320/0.0325
0.0195/0.0210 0.0320/0.0325
0.0195/0.0210 0.0320/0.0325
0.0155/0.0170 0.0280/0.0285
0.0155/0.0170 0.0280/0.0285
0.0155/0.0170 0.0280/0.0285
0.0125/0.0140 0.0250/0.0255
0.0125/0.0140 0.0250/0.0255
0.0125/0.0140 0.0250/0.0255
0.0095/0.0110 0.0200/0.0205
0.0095/0.0110 0.0200/0.0205
0.0095/0.0110 0.0200/0.0205
0.0075/0.0090 0.0160/0.0165
0.0075/0.0090 0.0160/0.0165
0.0055/0.0070 0.0120/0.0125
0.0055/0.0070 0.0120/0.0125
0.0035/0.0050 0.0090/0.0095
