6 CONTROLS

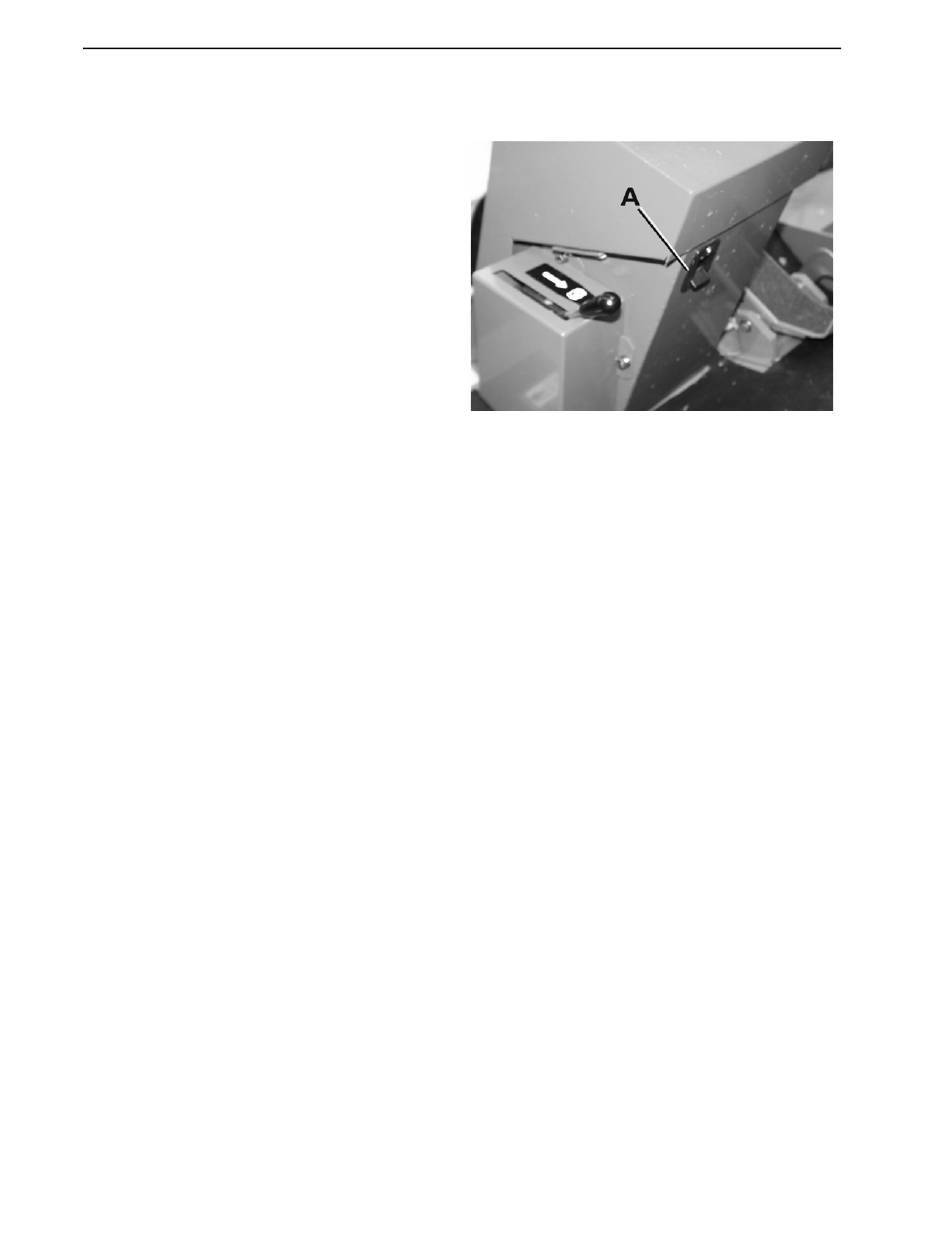

6.16 STEERING WHEEL RAKE ADJUSTMENT (A) _________________________
The steering wheel is adjustable for rake. The
clamping release latch is situated on the centre of
the steering column housing. To adjust release the
clamping latch and pivot the steering wheel
backwards and forwards to obtain desired setting
then lock in position by releasing the clamping latch.
en-28
