OPERATION AND MAINTENANCE MANUAL

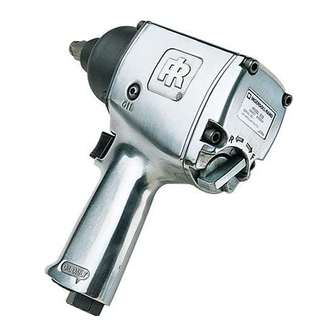

MODEL 235G HEAVY DUTY IMPACT WRENCH
Model 235G Impact Wrench is designed for use in general automotive repair.
IMPORTANT SAFETY INFORMATION ENCLOSED - SAVE THESE INSTRUCTIONS
READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THIS PRODUCT
IT IS YOUR RESPONSIBILITY TO MAKE THIS SAFETY INFORMATION
AVAILABLE TO OTHERS THAT WILL OPERATE THIS PRODUCT
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY
•
Always install, operate, inspect and maintain this
product in accordance with all applicable standards
and regulations (local, state, country, federal, etc.).
•
Always use clean, dry air at 90 psig (6.2 bar/620
kPa) maximum air pressure at the inlet. Higher
pressure may result in hazardous situations includ-
ing excessive speed, rupture, or incorrect output
torque or force.
•
Be sure all hoses and fittings are the correct size and
are tightly secured. See Dwg. TPD905-2 for a typi-
cal piping arrangement.
•
Ensure an accessible emergency shut off valve has
been installed in the air supply line, and make
others aware of its location.
•
Do not use damaged, frayed or deteriorated air
hoses and fittings.
•
Keep clear of whipping air hoses. Shut off the com-
pressed air before approaching a whipping hose.
•
Always wear eye protection when operating or per-
forming maintenance on this tool.
•
Always wear hearing protection when operating
this tool.
•
Always use Personal Protective Equipment appro-
priate to the tool used and material worked. This
may include dust mask or other breathing appara-
tus, safety glasses, ear plugs, gloves, apron, safety
shoes, hard hat and other equipment.
•
When wearing gloves always be sure that the gloves
will not prevent the throttle mechanism from being
released.
•
This tool is not designed for working in explosive
environments, including those caused by fumes and
dust, or near flammable materials.
•
This tool is not insulated against electric shock.
Refer all communications to the nearest Ingersoll-Rand
Office or Distributor
© Ingersoll-Rand Company 2003
Printed in Japan
