Page 1 All manuals and user guides at all-guides.com Deutsch Montageanleitung...
Page 2 All manuals and user guides at all-guides.com...
Page 3 All manuals and user guides at all-guides.com Montage Anschlussschlauch...
Page 4 All manuals and user guides at all-guides.com schließen öffnen...
Page 5 All manuals and user guides at all-guides.com Montageanleitung Hansgrohe Einhandmischer können in Achtung! Die Armatur muss nach den gültigen Normen montiert, gespült und geprüft werden! Verbindung mit hydraulisch und thermisch gesteuerten Durchlauferhitzern eingesetzt Montage werden wenn der Fließdruck mindestens 0,15 MPa beträgt.
Page 6 All manuals and user guides at all-guides.com Warmwasserbegrenzung: Warmwassertemperatur 60 C, Kaltwassertemperatur 10 C, Fließdruck 0,3 MPa.
Page 7 Strahlformer durch einfaches rubbeln vom Kalk befreit werden. Prüfzeichen DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 8 All manuals and user guides at all-guides.com...
Page 9 All manuals and user guides at all-guides.com Français Instructions de montage...
Page 10 All manuals and user guides at all-guides.com...
Page 11 All manuals and user guides at all-guides.com Montage flexible de raccordement...
Page 12 All manuals and user guides at all-guides.com fermé ouvert...
Page 13 All manuals and user guides at all-guides.com Instructions de montage Les mitigeurs monocommandes Hansgrohe Attention! La robinetterie doit être installée, rincée et contrôlée conformément aux normes fonctionnent également en association à des chauffe-eau à commande hydraulique ou valables! thermique à condition que la pression soit au minimum de 0,15 MPa.
Page 14 All manuals and user guides at all-guides.com Limiteur d'eau chaude: Température d'eau chaude 60 C, Température d'eau froide 10 C, Pression dynamique 0,3 MPa.
Page 15 éponge sur les ouvertures de jets élastiques. Classification acoustique et débit DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 16 All manuals and user guides at all-guides.com...
Page 17 All manuals and user guides at all-guides.com English assembly instructions...
Page 18 All manuals and user guides at all-guides.com...
Page 19 All manuals and user guides at all-guides.com Assembly connecting hoses...
Page 20 All manuals and user guides at all-guides.com close open...
Page 21 All manuals and user guides at all-guides.com assembly instructions Important! The fitting must be installed, flushed Hansgrohe single lever mixers can be used and tested after the valid norms! together with hydraulically and thermically controlled continuous flow heaters if the flow Assembly pressure is at least 0,15 MPa.
Page 22 All manuals and user guides at all-guides.com Hot water limiter: hot water temperature 60 C, cold water temperature 10 C, flow rate 0,3 MPa.
Page 23 Test certificate DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 24 All manuals and user guides at all-guides.com...
Page 25 All manuals and user guides at all-guides.com Italiano Istruzioni per Installazione...
Page 26 All manuals and user guides at all-guides.com...
Page 27 All manuals and user guides at all-guides.com Montaggio flessibile...
Page 28 All manuals and user guides at all-guides.com chiudere aperto...
Page 29 All manuals and user guides at all-guides.com Istruzioni per Installazione I miscelatori Hansgrohe possono venire usati con Attenzione! La rubinetteria deve essere installata, pulita e testata secondo le istruzioni caldaie a "bassa pressione" se la pressione del flusso è almeno di 0,15 MPa.
Page 30 All manuals and user guides at all-guides.com Limitatore di acqua calda: temperatura dell’acqua calda 60 C, temperatura dell’acqua fredda 10 C, pressione 0,3 MPa.
Page 31 Segno di verifica DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 32 All manuals and user guides at all-guides.com...
Page 33 All manuals and user guides at all-guides.com Español Instrucciones de montaje...
Page 34 All manuals and user guides at all-guides.com...
Page 35 All manuals and user guides at all-guides.com Montaje conexión flexible...
Page 36 All manuals and user guides at all-guides.com cerrar abierto...
Page 37 All manuals and user guides at all-guides.com Instrucciones de montaje Los mezcladores Hansgrohe pueden ser ¡Atención! El grifo tiene que ser instalado, probado y testado, según las normas en vigor. utilizado junto con calentadores continuos de agua que sean manejados de manera hidráulica Montaje o térmica, siempre que la presión del caudal...
Page 38 All manuals and user guides at all-guides.com Limitación del agua caliente: temperature del agua caliente 60 C, temperatura del agua fria 10 C, presión dinámica 0,3 MPa.
Page 39 Marca de verificación DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 40 All manuals and user guides at all-guides.com...
Page 41 All manuals and user guides at all-guides.com Nederlands Handleiding...
Page 42 All manuals and user guides at all-guides.com...
Page 43 All manuals and user guides at all-guides.com Montage aansluitslangen...
Page 44 All manuals and user guides at all-guides.com sluiten open...
Page 45 All manuals and user guides at all-guides.com Handleiding Hansgrohe ééngreepsmengkranen kunnen Attentie! Leidingen doorspoelen volgens Norm. De mengkraan vervolgens monteren en samen met hydraulisch en thermisch gestuurde geisers gebruikt worden indien de uitstroomdruk controleren! min. 0,15 MPa bedraagt. Montage Eéngreepsmengkranen met warmwaterbegrenzing, instelling zie blz.
Page 46 All manuals and user guides at all-guides.com Warmwaterbegrenzing: Warmwatertemperatuur 60 C, Koudwatertemperatuur 10 C, stroomdruk 0,3 MPa.
Page 47 Keurmerk DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 48 All manuals and user guides at all-guides.com...
Page 49 All manuals and user guides at all-guides.com Dansk Monteringsvejledning...
Page 50 All manuals and user guides at all-guides.com...
Page 51 All manuals and user guides at all-guides.com Montering tilslutingslangerne...
Page 52 All manuals and user guides at all-guides.com lukke åbne...
Page 53 All manuals and user guides at all-guides.com Monteringsvejledning Hansgrohe etgrebsarmaturer kan anvendes i Advarsel! Ifølge gældende regler, skal armaturet monteres, skylles igennem og afprøves. forbindelse med hydraulisk- og termiskstyrede gennemstrømningsvandvarmere ved et vandtryk Montering på 0,15 MPa. Skyl tilførselsledningene grundig.
Page 54 All manuals and user guides at all-guides.com Varmtvandsbegrænsning: Varmtvandstemperatur 60o C, koldtvandstemperatur 10o C, vandtryk 0,3 MPa.
Page 55 - der skal blot gnubbes! Godkendelse DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 56 All manuals and user guides at all-guides.com...
Page 57 All manuals and user guides at all-guides.com Português Manual de Instalación...
Page 58 All manuals and user guides at all-guides.com...
Page 59 All manuals and user guides at all-guides.com Montagem tubo flexível...
Page 60 All manuals and user guides at all-guides.com fechar abrir...
Page 61 All manuals and user guides at all-guides.com Manual de Instalación Atenção! A misturadora deve ser instalada, As misturadoras monocomando Hansgrohe purgada e testada de acordo com as normas em podem ser utilizadas com esquentadores (de vigor! controlo térmico ou hidráulico) desde que a pressão de utilização seja, no minimo, de 0,15...
Page 62 All manuals and user guides at all-guides.com Limitador de água quente: Temperatura da água quente 60 C, Temperatura da água fria 10 C, Pressão 0,3 MPa.
Page 63 Marca de controlo DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 64 All manuals and user guides at all-guides.com...
Page 65 All manuals and user guides at all-guides.com Polski Instrukcja montażu...
Page 66 All manuals and user guides at all-guides.com...
Page 67 All manuals and user guides at all-guides.com Montaż węża przyłączeniowego...
Page 68 All manuals and user guides at all-guides.com zamknąć otworzyć...
Page 69 All manuals and user guides at all-guides.com Instrukcja montażu Uwaga! Armatura musi być zamontowana, Mieszacze jednouchwytowe Hansgrohe mogą przepłukana i wypróbowana według być stosowane w połączeniu z przepływowymi podgrzewaczami wody, sterowanymi obowiązujących norm! hydraulicznie i termicznie, gdy ciśnienie wody Montaż...
Page 70 All manuals and user guides at all-guides.com Ogranicznik ciepłej wody: Temperatura ciepłej wody 60 C, temperatura zimnej wody 10 C, ciśnienie przepływu 0,3 MPa.
Page 71 Znak jakości DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 72 All manuals and user guides at all-guides.com...
Page 73 All manuals and user guides at all-guides.com Česky Montážní návod...
Page 74 All manuals and user guides at all-guides.com...
Page 75 All manuals and user guides at all-guides.com Montáž připojovací hadičky...
Page 76 All manuals and user guides at all-guides.com zavřít otevřít...
Page 77 All manuals and user guides at all-guides.com Montážní návod Pákové baterie Hansgrohe mohou být používány Pozor! Armatura se musí montovat, proplachovat a testovat podle platných norem! ve spojení s hydraulicky nebo tepelnĕ řízenými průtokovými ohřívači, pokud tlak při průtoku je Montáž...
Page 78 All manuals and user guides at all-guides.com Omezení teplé vody: teplota vody (teplé) 60 C, teplota studené vody 10 C, tlak proudu 0,3 MPa.
Page 79 DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 80 All manuals and user guides at all-guides.com...
Page 81 All manuals and user guides at all-guides.com Slovensky Montážny návod...
Page 82 All manuals and user guides at all-guides.com...
Page 83 All manuals and user guides at all-guides.com Montáž pripojovacej hadičky...
Page 84 All manuals and user guides at all-guides.com uzavrieť otvoriť...
Page 85 All manuals and user guides at all-guides.com Montážny návod Pákové batérie firmy Hansgrohe môžu byť Pozor! Batéria sa musí montovať, preplachovať a testovať podľa platných noriem! používané v spojení s hydraulicky a tepelne riadenými prietokovými ohrievačmi, pokiaľ je tlak Montáž...
Page 86 All manuals and user guides at all-guides.com Obmedzenie teplej vody: teplota teplej vody 60 C, teplota studené vody 10 C, tlak prúdu 0,3 MPa.
Page 87 Osvedčenie o skúške DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 88 All manuals and user guides at all-guides.com...
Page 89 All manuals and user guides at all-guides.com 中文组装说明...
Page 90 All manuals and user guides at all-guides.com...
Page 91 All manuals and user guides at all-guides.com 安装连接软管...
Page 92 All manuals and user guides at all-guides.com 关开...
Page 93 All manuals and user guides at all-guides.com 组装说明注意！如果水压达到1.5 必须按照现行的规定安装，冲洗和测试产品！ bar以上，汉斯格雅单手柄龙头可以和液压式或热控式直流式热水器一起使用。安装带有热水控制器的单手柄龙头的调节方法，参见将进水管洗净。第_1b页。把龙头和密封垫圈装在盥洗台上。如果与连续流热水器一起使用，则不必作任何调将塑料垫圈、滑动垫圈、金属垫圈和带台螺节。母套到螺丝接管上，并用手旋紧带台螺母。备用零件参见第页 3 + 4 如果空间不够，请去掉塑料垫圈。旋紧一字螺钉。 33891000 手柄连接三角阀和连接软管：左热右冷。 1.1 螺钉帽 96338000 96391000 冷热水管间过大的压力差必须予以平衡。法兰 94194000 螺母操作...
Page 94 All manuals and user guides at all-guides.com 热水限制：热水温度60 C，冷水温度10 C，流动压力3 bar...
Page 95 All manuals and user guides at all-guides.com 清洗有了QuickClean，手工清洁功能，要去掉喷头上的水垢，只需简单地搓除即可。检验标记 DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 96 All manuals and user guides at all-guides.com...
Page 97 All manuals and user guides at all-guides.com Русский Инструкция по монтажу...
Page 98 All manuals and user guides at all-guides.com...
Page 99 All manuals and user guides at all-guides.com Монтаж подводки...
Page 100 All manuals and user guides at all-guides.com закрыть открыть...
Page 101 All manuals and user guides at all-guides.com Инструкция по монтажу Oстopoжнo! Смеситель должен быть Однорычажные смесители фирмы смонтирован по действующим нормам и в HANSGROHE можно использоватЬ с соответствии с настоящей инструкцией, электроводонагревателями бойлерного типа проверен на геметичность и безупречность при минимальном давлении 0,15 МПа.
Page 102 All manuals and user guides at all-guides.com Ограничение расхода горячей воды: температура горячей воды 60 С, температура холодной воды 10 С, давление 0,3 МПа.
Page 103 известковые отложения будут удалены. Знак технического контроля DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 104 All manuals and user guides at all-guides.com...
Page 105 All manuals and user guides at all-guides.com Magyar Szerelési útmutató...
Page 106 All manuals and user guides at all-guides.com...
Page 107 All manuals and user guides at all-guides.com bekötőcső összeszerelése...
Page 108 All manuals and user guides at all-guides.com bezárás nyitás...
Page 109 All manuals and user guides at all-guides.com Szerelési útmutató A Hansgrohe egykaros keverő csaptelepek Figyelem! A csaptelepet az érvényben lévő előírásoknak megfelelően kell felszerelni, beépíthetők hidraulikus- és hőszabályozással ellátott átfolyós vízmelegítőknél egyaránt, ha a átöblíteni és ellenőrizni! víznyomás legalább 0,15 MPa.
Page 110 All manuals and user guides at all-guides.com Melegvíz-korlátozás: melegvíz-hőmérséklet 60 C, hidegvíz-hőmérséklet 10 C, víznyomás 0,3 MPa.
Page 111 Vizsgajel DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 112 All manuals and user guides at all-guides.com...
Page 113 All manuals and user guides at all-guides.com Suomi Asennusohje...
Page 114 All manuals and user guides at all-guides.com...
Page 115 All manuals and user guides at all-guides.com Liitäntäletkun asennus...
Page 116 All manuals and user guides at all-guides.com sulkeminen avaaminen...
Page 117 All manuals and user guides at all-guides.com Asennusohje Hansgrohe yksivipuisia sekoittimia voi käyttää Huomio! Kaluste on asennettava, huuhdeltava ja tarkastettava voimassa olevien määräysten hydraulisesti tai termisesti ohjattujen läpivirtauskuumentimien yhteydessä, jos mukaisesti! virtauspaine on vähintään 0,15 MPa. Asennus Yksivipuinen sekoittaja lämpimän veden rajoituksella, katso säätö...
Page 118 All manuals and user guides at all-guides.com Kuumanveden rajoitin: kuuman veden lämpötila 60 C, kylmän veden lämpötila 10 C, virtauspaine 0,3 MPa.
Page 119 Koestusmerkki DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 120 All manuals and user guides at all-guides.com...
Page 121 All manuals and user guides at all-guides.com Svenska Monteringsanvisning...
Page 122 All manuals and user guides at all-guides.com...
Page 123 All manuals and user guides at all-guides.com Montering anslutningsslang...
Page 124 All manuals and user guides at all-guides.com stänga öppna...
Page 125 All manuals and user guides at all-guides.com Monteringsanvisning Hansgrohe enhandsblandare kan användas OBS! Blandaren måste installeras, genomspolas och testas enligt gällande föreskrifter. tillsammans med hydrauliskt och termiskt styrda varmvattenberedare när flödestrycket uppgår till Montering minst 0,15 MPa. Skölj tillförselledningarna noga.
Page 126 All manuals and user guides at all-guides.com Varmvattenreglering: Varmvattentemperatur 60 C, Kallvattentemperatur 10 C, flödestryck 0,3 MPa.
Page 127 - de ska bar gnuggas. Testsigill DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 128 All manuals and user guides at all-guides.com...
Page 129 All manuals and user guides at all-guides.com Lietuviškai Montavimo instrukcijos...
Page 130 All manuals and user guides at all-guides.com...
Page 131 All manuals and user guides at all-guides.com Prijungimo žarnų montavimas...
Page 132 All manuals and user guides at all-guides.com uždaryti atidaryti...
Page 133 All manuals and user guides at all-guides.com Montavimo instrukcijos Dėmesio! Maišytuvas privalo būti montuojamas, "Hansgrohe" vienos rankenėlės maišytuvai gali išleidžiamas ir patikrinamas pagal galiojančias būti naudojami su hidrauliškai ir termiškai normas! reguliuojamais momentiniais šildikliais, kai vandens slėgis mažesnis kaip 0,15 MPa.
Page 134 All manuals and user guides at all-guides.com Karšto vandens ribotuvas: karšto vandens temperatūra 60 С, šalto vandens - 10 С, slėgis 0,3 MPa..
Page 135 Užtenka pirštu nubraukti atsiradusius nešvarumus nuo srovės angų. Bandymo pažyma DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 136 All manuals and user guides at all-guides.com...
Page 137 All manuals and user guides at all-guides.com Hrvatski Uputstva za instalaciju...
Page 138 All manuals and user guides at all-guides.com...
Page 139 All manuals and user guides at all-guides.com montaža priključne cijevi...
Page 140 All manuals and user guides at all-guides.com Zatvaranje Otvaranje...
Page 141 All manuals and user guides at all-guides.com Uputstva za instalaciju Pažnja! Cijevi moraju biti postavljene, isprane i Hansgrohe jednoručne slavine se mogu koristiti testirane prema važećim normama! sa hidraulični i termički kontroliranim protočnim bojlerima ako je tlak najmanje 0,15 MPa.
Page 142 All manuals and user guides at all-guides.com Limiter vruće vode: temperatura vruće vode 60 C, temperatura hladne vode 10 C, tlak 0,3 MPa.
Page 143 Oznaka testiranja DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 144 All manuals and user guides at all-guides.com...
Page 145 All manuals and user guides at all-guides.com Türkçe Montaj kılavuzu...
Page 146 All manuals and user guides at all-guides.com...
Page 147 All manuals and user guides at all-guides.com Bağlantı hortumunun montajı...
Page 148 All manuals and user guides at all-guides.com kapatmak açmak...
Page 149 Montaj kılavuzu Önemli! Batarya geçerli normlara göre monte Su akış basıncı en azından 0,15 MPa olan edilmeli, yıkanmalı ve kontrol edilmelidir! yerlerde Hansgrohe tek kollu bataryalarını, hidrolik ve termik kumandalı şofbenlerle birlikte Montajı kullanabilirsiniz. Su giriş hatlarından su akıtarak boruları...
Page 150 All manuals and user guides at all-guides.com Sıcak su sınırlaması: Sıcak su sıcaklığı 60 C, soğuk su sıcaklığı 10 C, akma basıncı 0,3 MPa.
Page 151 Basit bir ovuşturma ile sprey modüllerdeki kireci çözer. Kontrol işareti DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 152 All manuals and user guides at all-guides.com...
Page 153 All manuals and user guides at all-guides.com Română Instrucţiuni de montare...
Page 154 All manuals and user guides at all-guides.com...
Page 155 All manuals and user guides at all-guides.com Montarea furtunului de racord...
Page 156 All manuals and user guides at all-guides.com închide deschide...
Page 157 All manuals and user guides at all-guides.com Instrucţiuni de montare Atenţie! Bateria trebuie montată, clătită şi Bateriile monocomadă Hansgrohe pot fi utilizate verificată conform normelor în vigoare. cu boiler instant cu comandă termică sau hidraulică dacă presiunea apei de alimentare Montare este de min.
Page 158 All manuals and user guides at all-guides.com Limitator pentru apă caldă: Temperatură apă caldă: 60 C, temperatură apă rece: 10 C, presiune de curgere: 0,3 MPa.
Page 159 Certificat de testare DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 160 All manuals and user guides at all-guides.com...
Page 161 All manuals and user guides at all-guides.com Ελληνικά Οδηγία συναρμολόγησης...
Page 162 All manuals and user guides at all-guides.com...
Page 163 All manuals and user guides at all-guides.com Συναρμολόγηση σωλήνα σύνδεσης...
Page 164 All manuals and user guides at all-guides.com κλειστό ανοικτό...
Page 165 All manuals and user guides at all-guides.com Οδηγία συναρμολόγησης Προσοχή! Η κεντρική βάνα πρέπει να Οι αναμεικτικές μπαταρίες Hansgrohe μπορούν τοποθετηθεί, να πλυθεί και να ελεγχθεί με βάση να λειτουργούν και σε συνδυασμό με τους ισχύοντες κανόνες υδραυλικής τέχνης! ταχυθερμοσίφωνες θερμικού ή υδραυλικού...
Page 166 All manuals and user guides at all-guides.com Διάταξη περιορισμού ζεστού νερού: θερμοκρασία ζεστού νερού 60 C, θερμοκρασία κρύου νερού 10 C, πίεση ροής 0,3 MPa.
Page 167 τα άλατα από τα κανάλια του καταιονιστήρα. Σήμα ελέγχου DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 168 All manuals and user guides at all-guides.com...
Page 169 All manuals and user guides at all-guides.com ‫ﻋﺮﺑﻲ‬ ‫ﺗﻌﻠﻴﻤﺎت اﻟﺘﺠﻤﻴﻊ‬...
Page 170 All manuals and user guides at all-guides.com...
Page 171 All manuals and user guides at all-guides.com ‫ﺗﺠﻤﻴﻊ ﺧﺮاﻃﻴﻢ اﻟﺘﻮﺻﻴﻞ‬...
Page 172 All manuals and user guides at all-guides.com ‫إﻏﻼق‬ ‫ﻓﺘﺢ‬...
Page 173 All manuals and user guides at all-guides.com ‫ﺗﻌﻠﻴﻤﺎت اﻟﺘﺠﻤﻴﻊ‬ ‫ﻳﺠﺐ ﺗﺮآﻴﺐ اﻟﻮﺻﻠﺔ، وﻏﻤﺮهﺎ ﺑﺎﻟﻤﺎء واﺧﺘﺒﺎرهﺎ وﻓﻘ ﺎ ً ﻟﻠﻤﻌﺎﻳﻴﺮ‬ ‫ﺗﻨﺒﻴﻪ‬ ‫ﻳﻤﻜﻦ اﺳﺘﺨﺪام ﺧﻼﻃﺎت هﺎﻧﺰﺟﺮوهﻪ أﺣﺎدﻳﺔ اﻟﻤﻘﺒﺾ ﻣﻊ ﺳﺨﺎﻧﺎت ﺗﺪﻓﻖ‬ ‫اﻟﺴﺎرﻳﺔ‬ ‫اﻟﻤﺎء ذات اﻟﺘﺤﻜﻢ اﻟﻬﻴﺪروﻟﻴﻜﻲ أو اﻟﺤﺮاري، ﻣﻊ ﺿﻐﻂ ﺗﺪﻓﻖ ﻻ ﻳﻘﻞ ﻋﻦ‬ ‫ﺑﺎر‬...
Page 174 All manuals and user guides at all-guides.com ‫ﺑﺎر‬ ‫اﻟﺘﺪﻓﻖ‬ ‫ﻣﺌﻮﻳﺔ، ﺿﻐﻂ‬ ‫ﻣﺌﻮﻳﺔ، درﺟﺔ ﺣﺮارة اﻟﻤﺎء اﻟﺒﺎرد ﺗﺒﻠﻎ‬ ‫درﺟﺔ ﺣﺮارة اﻟﻤﺎء اﻟﺴﺎﺧﻦ‬ ‫ﻣﺤﺪد اﻟﻤﺎء اﻟﺴﺎﺧﻦ‬...
Page 175 ‫اﻟﺘﻨﻈﻴﻒ اﻵﻟﻲ، ﻳﻤﻜﻦ ﺗﻨﻈﻴﻒ وﺣﺪات دﻓﻊ اﻟﻤﻴﺎﻩ ﻣﻦ اﻟﺠﻴﺮ ﻋﻦ ﻃﺮﻳﻖ ﺣﻜﻬﺎ‬ ‫ﺑﺮﻓﻖ‬ ‫ﺷﻬﺎدة اﺧﺘﺒﺎر‬ DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 176 All manuals and user guides at all-guides.com...
Page 177 All manuals and user guides at all-guides.com Slovenski Navodila za montažo...
Page 178 All manuals and user guides at all-guides.com...
Page 179 All manuals and user guides at all-guides.com Montaža priključne gibke cevi...
Page 180 All manuals and user guides at all-guides.com zapreti odpreti...
Page 181 All manuals and user guides at all-guides.com Navodila za montažo Attention! Armaturo je potrebno montirati, sprati Enoročne mešalne baterije Hansgrohe lahko in testirati v skladu z veljavnimi normami! uporabljate v povezavi s hidravlično in termično uravnavanimi pretočnimi grelniki, če je pretočni Montaža...
Page 182 All manuals and user guides at all-guides.com Omejitev tople vode: temperatura tople vode 60 C, temperatura mrzle vode 10 C, pretočni tlak 0,3 MPa.
Page 183 šobe enostavno podrgnemo. Preskusni znak DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 184 All manuals and user guides at all-guides.com...
Page 185 All manuals and user guides at all-guides.com Estonia Paigaldusjuhend...
Page 186 All manuals and user guides at all-guides.com...
Page 187 All manuals and user guides at all-guides.com Ühendusvooliku paigaldamine...
Page 188 All manuals and user guides at all-guides.com sulgege avage...
Page 189 All manuals and user guides at all-guides.com Paigaldusjuhend Hansgrohe ühekäe segisteid võib kasutada koos Tähelepanu! Segisti paigaldamine, loputamine ja kontroll peab toimuma vastavalt kehtivatele hüdrauliliselt ja termiliselt juhitavate boileritega, kui vee rõhk on vähemalt 0,15 MPa. normidele! Ühe juhtkangiga segisti kuuma vee piiraja Paigaldamine reguleerimise kohta vt lk _1b.
Page 190 All manuals and user guides at all-guides.com Kuuma vee piiraja: kuum vesi 60 C, külm vesi 10 C, rõhk 0,3 MPa.
Page 191 ülehõõrumine, eemaldamaks dušikanalitest katlakivi. Kontrollsertifikaat DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 192 All manuals and user guides at all-guides.com...
Page 193 All manuals and user guides at all-guides.com Latviski Montāžas instrukcija...
Page 194 All manuals and user guides at all-guides.com...
Page 195 All manuals and user guides at all-guides.com Pieslēguma šļūtenes montāža...
Page 196 All manuals and user guides at all-guides.com aizvērt atvērt...
Page 197 All manuals and user guides at all-guides.com Montāžas instrukcija Uzmanību! Armatūra jāuzstāda, jāizskalo un Hansgrohe viensviras jaucējkrānus var izmantot jāpārbauda atbilstoši spēkā esošajām normām! kombinācijā ar hidrauliski un termiski vadāmiem caurteces sildītājiem, ja plūsmas spiediens ir Montāža vismaz 0,15 MPa.
Page 198 All manuals and user guides at all-guides.com Karstā ūdens ierobežotājs: karstā ūdens temperatūra 60 C, aukstā ūdens temperatūra 10 C, plūsmas spiediens 0,3 MPa.
Page 199 Pārbaudes zīme DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 200 All manuals and user guides at all-guides.com...
Page 201 All manuals and user guides at all-guides.com Srpski Uputstvo za montažu...
Page 202 All manuals and user guides at all-guides.com...
Page 203 All manuals and user guides at all-guides.com Montaža priključne cevi...
Page 204 All manuals and user guides at all-guides.com zatvori otvoriti...
Page 205 All manuals and user guides at all-guides.com Uputstvo za montažu Hansgrohe jednoručni mešači se mogu koristiti s Pažnja! Armatura mora biti postavljena, isprana i testirana prema važećim normama! hidraulički i termički kontrolisanim protočnim bojlerima, ako je pritisak najmanje 0,15 MPa.
Page 206 All manuals and user guides at all-guides.com Ograničavač vruće vode: temperatura vruće vode 60 C, temperatura hladne vode 10 C, pritisak 0,3 MPa.
Page 207 All manuals and user guides at all-guides.com Čišćenje Čišćenje Ispitni znak DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 208 All manuals and user guides at all-guides.com...
Page 209 All manuals and user guides at all-guides.com Norsk Montasjeveiledning...
Page 210 All manuals and user guides at all-guides.com...
Page 211 All manuals and user guides at all-guides.com Montasje tilkoblingsslange...
Page 212 All manuals and user guides at all-guides.com lukke åpne...
Page 213 All manuals and user guides at all-guides.com Montasjeveiledning Armaturer fra Hansgrohe kan brukes sammen Obs! Armaturen skal monteres iht. gyldige standarder. De skal spyles og sjekkes! med hydraulisk og termisk stryrte gjennomstrømningsovner når Montasje gjennomstrømningstrykket er på minst 0,15 Mpa.
Page 214 All manuals and user guides at all-guides.com Varmtvannsbegrensning: Varmtvanns-temperatur 60 C, kaldtvanns-temperatur 10 C, gjennomstrømningstrykk 0,3 bar.
Page 215 Prøvemerke DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 216 All manuals and user guides at all-guides.com...
Page 217 All manuals and user guides at all-guides.com БЪЛГАРСКИ Ръководство за монтаж...
Page 218 All manuals and user guides at all-guides.com...
Page 219 All manuals and user guides at all-guides.com Монтаж на свързващия маркуч...
Page 220 All manuals and user guides at all-guides.com затваряне отваряне...
Page 221 All manuals and user guides at all-guides.com Ръководство за монтаж Внимание! Арматурата трябва да се Смесителите с една ръкохватка на Hansgrohe монтира, промие и провери в съответствие с могат да се използват във връзка с валидните норми! хидравлично и термично управляеми...
Page 222 All manuals and user guides at all-guides.com Ограничител за топлата вода: Температура на топлата вода 60 C, Температура на студената вода 10 C, хидравлично налягане 0,3 МПа.
Page 223 могат да се почистват от варовика с просто разтъркване. Контролен знак DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
Page 224 All manuals and user guides at all-guides.com...
Page 225 All manuals and user guides at all-guides.com Shqip Udhëzime rreth montimit...
Page 226 All manuals and user guides at all-guides.com...
Page 227 All manuals and user guides at all-guides.com Montimi i zorrës së lidhjes...
Page 228 All manuals and user guides at all-guides.com mbylle hape...
Page 229 All manuals and user guides at all-guides.com Udhëzime rreth montimit Armaturat me ujë të përzier të Hansgrohe mund Kujdes! Armatura duhet montuar, shpërlarë dhe kontrolluar në bazë të normave të vlefshme! të përdoren në kombinim me ngrohës elektrikë të ujit të drejtuar në mënyrë hidraulike ose termike Montimi nëse presioni i rrjedhjes është...
Page 230 All manuals and user guides at all-guides.com Kufizimi i ujit të ngrohtë: Temperatura e ujit të ngrohtë 60 C, temperatura e ujit të ftohtë 10 C, presioni i rrjedhjes 0,3 MPa.
Page 231 Shenja e kontrollit DVGW P-IX SVGW WRAS KIWA 33802000 P-IX 33810000 9172/IA 33815000 Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...

Ce manuel est également adapté pour:

Elegance 33810000 Elegance 33815000

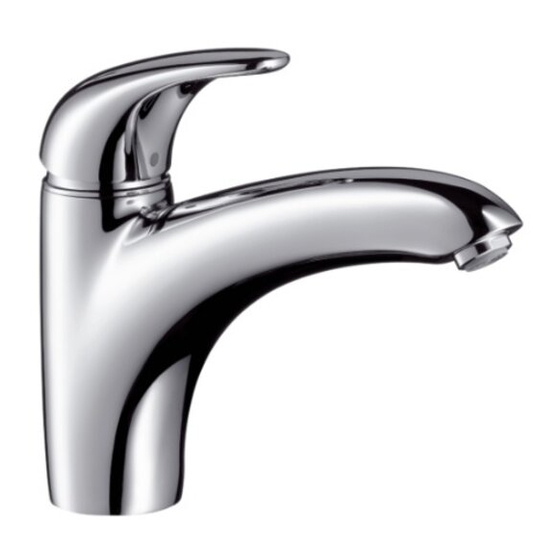

Hansgrohe Elegance 33802000 Instructions De Montage

Liens rapides

Manuels Connexes pour Hansgrohe Elegance 33802000

Sommaire des Matières pour Hansgrohe Elegance 33802000

Ce manuel est également adapté pour:
