CONNECTIONS

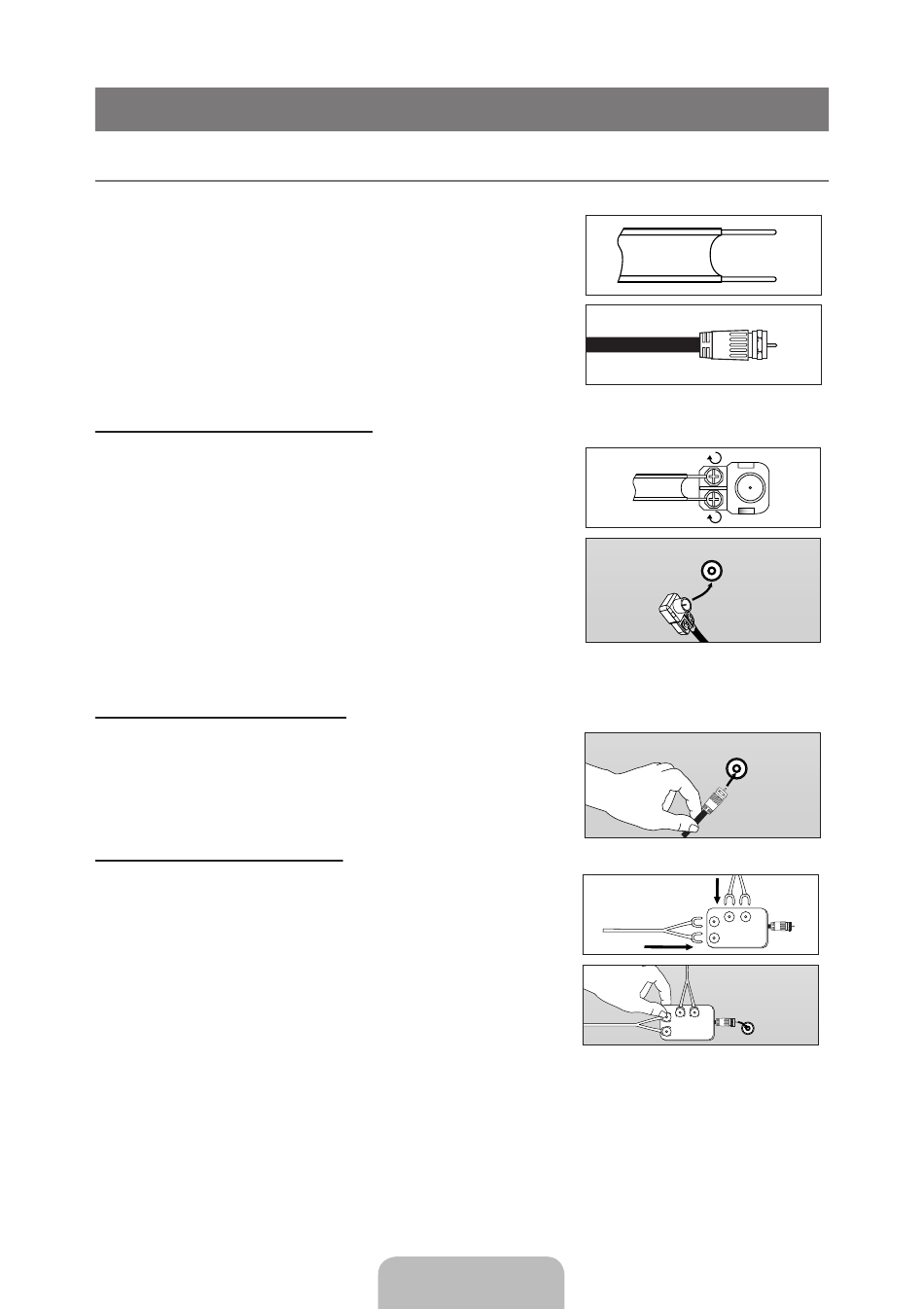

Connecting VHF and UHF Antennas
¦
If your antenna has a set of leads that look like the diagram to the right, see 'Antennas with 300 Ω
Flat Twin Leads' below.
If your antenna has one lead that looks like the diagram to the
right, see 'Antennas with 75 Ω Round Leads'.
If you have two antennas, see 'Separate VHF and UHF
Antennas'.
Antennas with 300 Ω Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or
'rabbit ears') that has 300Ω twin flat leads, follow the directions
below.
1. Place the wires from the twin leads under the screws on a 300-
75 Ω adapter (not supplied). Use a screwdriver to tighten the
screws.
2. Plug the adaptor into the ANT IN terminal on the back of the TV.
Antennas with 75 Ω Round Leads
Plug the antenna lead into the ANT IN terminal on the back of
the TV.
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and
one UHF), you must combine the two antenna signals before
connecting the antennas to the TV. This procedure requires
an optional combiner-adaptor (available at most electronics
shops).
1. Connect both antenna leads to the combiner.
2. Plug the combiner into the ANT IN terminal on the bottom of
the rear panel.
English - 5
ANT IN
ANT IN
UHF
VHF
ANT IN
UHF
VHF
