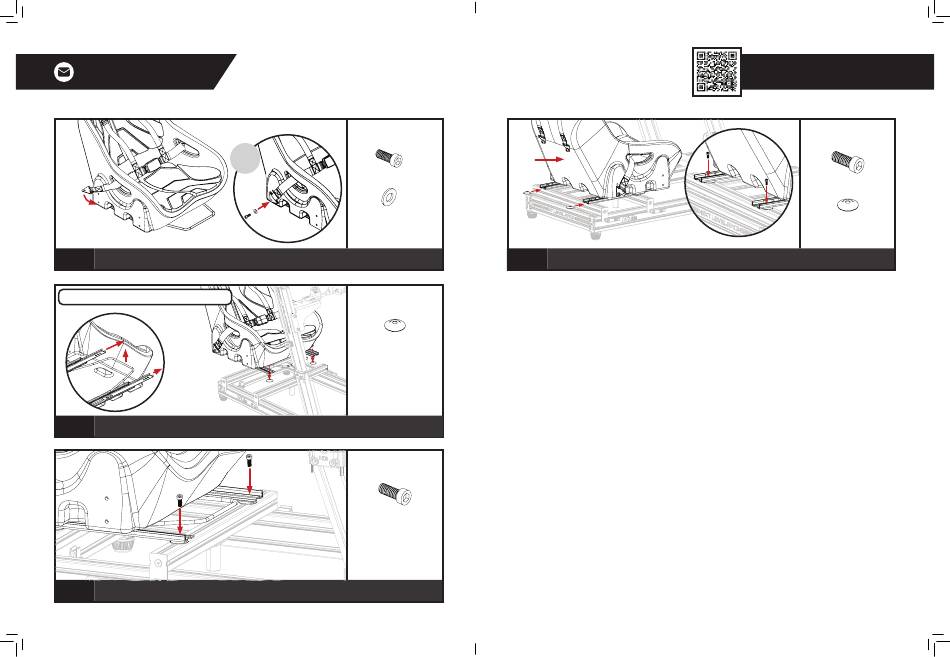

COMPLETE STEPS 01 - 02b. Align the holes on the Harness mounting plates with the threaded inserts
on the sides of the ES1 Seat. Bolt through and secure with 2 x M8 Bolts and Washers.
ALUMINIUM COCKPIT INSTALLATION
07
Slide the Seat Sliders forward and align the front mounting holes and Dome Spacers with the T-Nuts
on the cockpit frame.
08
Bolt through and secure with 2 x M8 Low Profile Bolts.
PARTS:
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
PARTS:
• • 2 x Dome Spacers
PARTS:
• • 2 x M8 20mm Low Profile Bolts
8
09
Slide the Seat forward and align the rear mounting holes and Dome Spacers with the T-Nuts on the cockpit frame.
Bolt through and secure with 2 x M8 Low Profile Bolts.
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 2 x M8 20mm Low Profile Bolts
• • 2 x Dome Spacers
