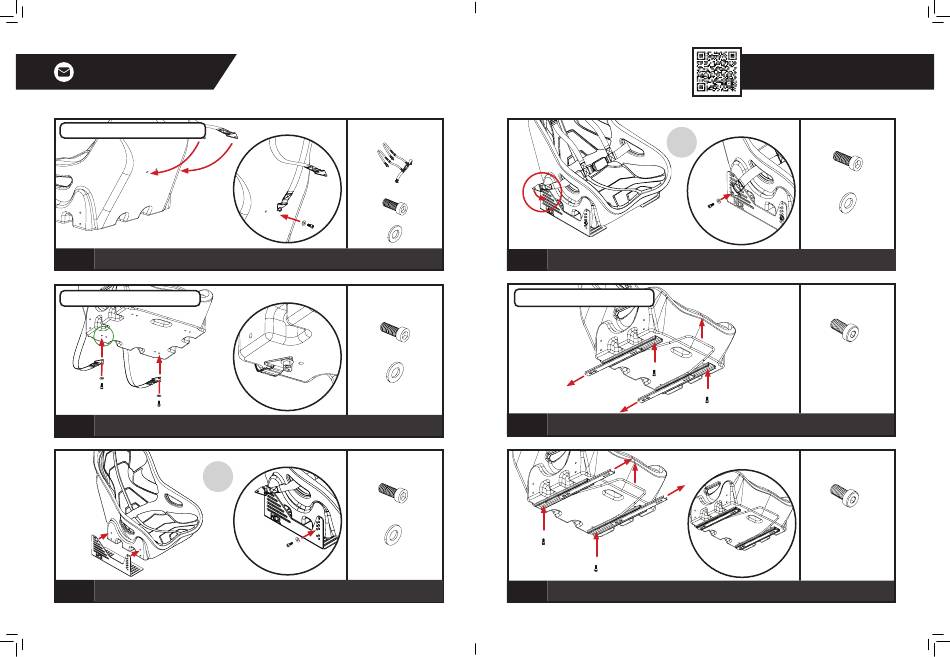

FOR USERS UNDER 170cm TALL
A)
B)
01a
A) Align the holes on the harness mounting plates with the threaded holes at the back of seat.
B) Bolt through and secure with 2 x M8 Bolts and Washers.
FOR USERS OVER 170cm TALL
A)
B)
01b
A) Align the holes on the harness mounting plates with the threaded holes at the bottom of the seat.
B) Bolt through and secure with 2 x M8 Bolts and Washers.
Repeat
on Other
Side
02
Align the front holes on the Seat Brackets with the threaded inserts on the ES1 Seat.
Bolt through and secure using 1 x M8 Bolt and Washer. Repeat on the other side.
PARTS:
• • 1x Harness
• • 2x M8 20mm Bolts
• • 2x M8 Washers
PARTS:
• • 2x M8 20mm Bolts
• • 2x M8 Washers
PARTS:
• • 2x M8 20mm Bolts
• • 2x M8 Washers
NOTE:
Seat Brackets Not Included.
6
Repeat
on Other
Side
03
A) Align the mounting hole on the Seatbelt mounting plate with the slots on the Seat Bracket and the
threaded insert on the seat.B) Bolt through and secure using 2 x M8 Bolts and Washers.
)
A
SEAT SLIDERS INSTALLATION
04
Slide the rails all the way to the rear and align the front holes on the Seat Sliders with the threaded
inserts on the bottom of the ES1 Seat. Bolt through and secure with 2 x M8 Low Profile Bolts.
05
Slide the rails all the way to the front and align the rear holes on the Seat Sliders with the threaded
inserts on the bottom of the ES1 Seat. Bolt through and secure with 2 x M8 Low Profile Bolts.
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 2x M8 20mm Bolts
• • 2x M8 Washers
PARTS:
• • 2x M8 16mm Low Profile Bolts
NOTE:
Seat Sliders Not Included.
PARTS:
• • 2x M8 16mm Low Profile Bolts
7
