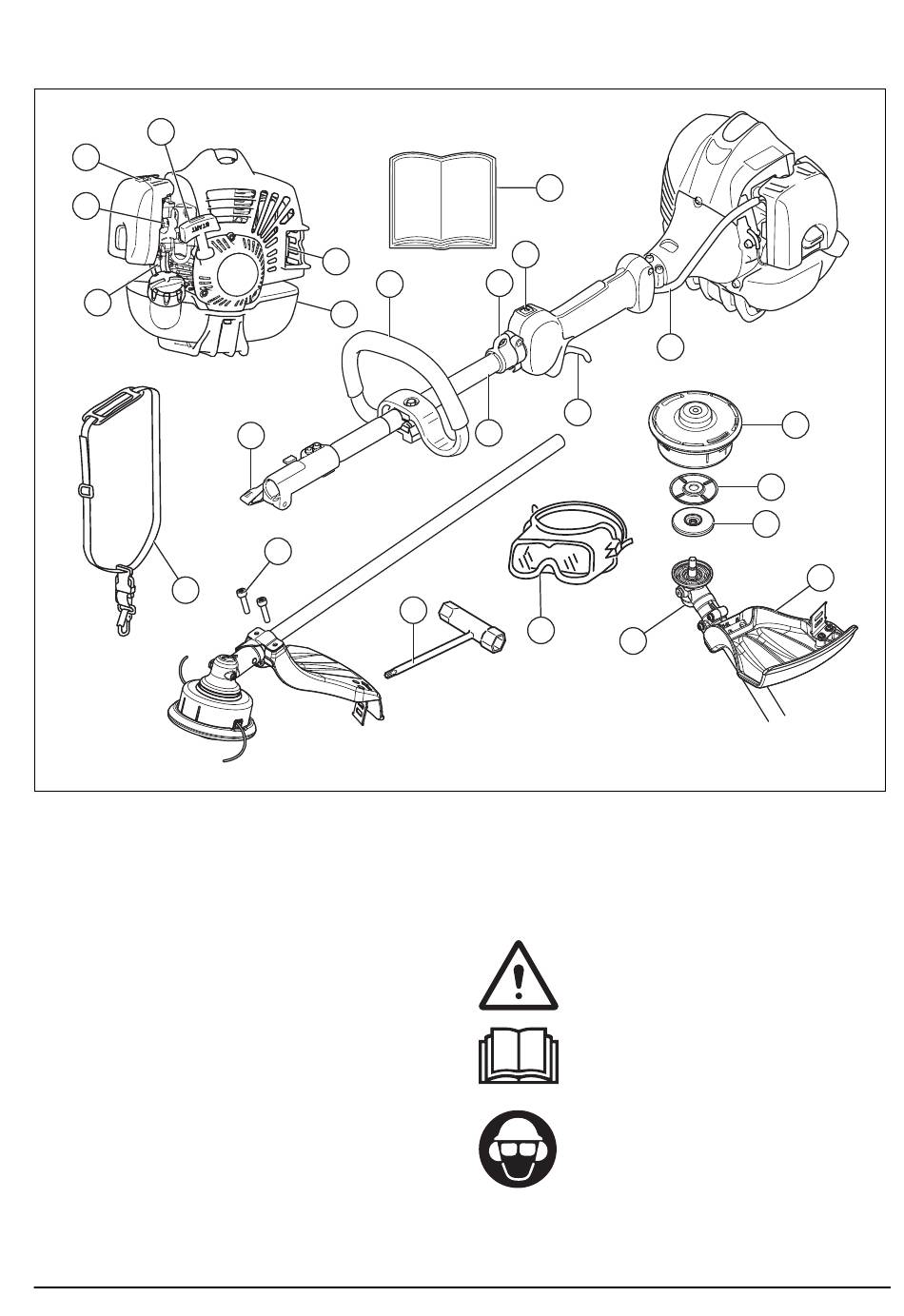

Product overview

9
13
12
11
16
1. Loop handle
2. Suspension point
3. Stop switch
4. Throttle cable
5. Throttle trigger
6. Drive shaft housing
7. Knob bolt
8. Spark arrester
9. Starter knob
10. Fuel tank
11. Primer pump
12. Choke lever
13. Air filter cover
14. Combination wrench
15. Goggles
16. Shoulder strap
17. Screws
18. Trimmer head
19. Spacer
1111 - 002 - 21.03.2019
8
1
10
7
17
14
23
3
2
5
6
15
21
20. Drive disc
21. Bevel gear
22. Cutting attachment guard
23. Operator's manual

Symbols on the product

Be careful and use the product correctly.
This product can cause serious injury or
death to the operator or others.
Read the operator's manual carefully and
make sure that you understand the
instructions before you use this product.
Use a protective helmet in locations where
objects can fall on you. Use approved
hearing protection. Use approved eye
protection.
4
18
19
20
22
3
