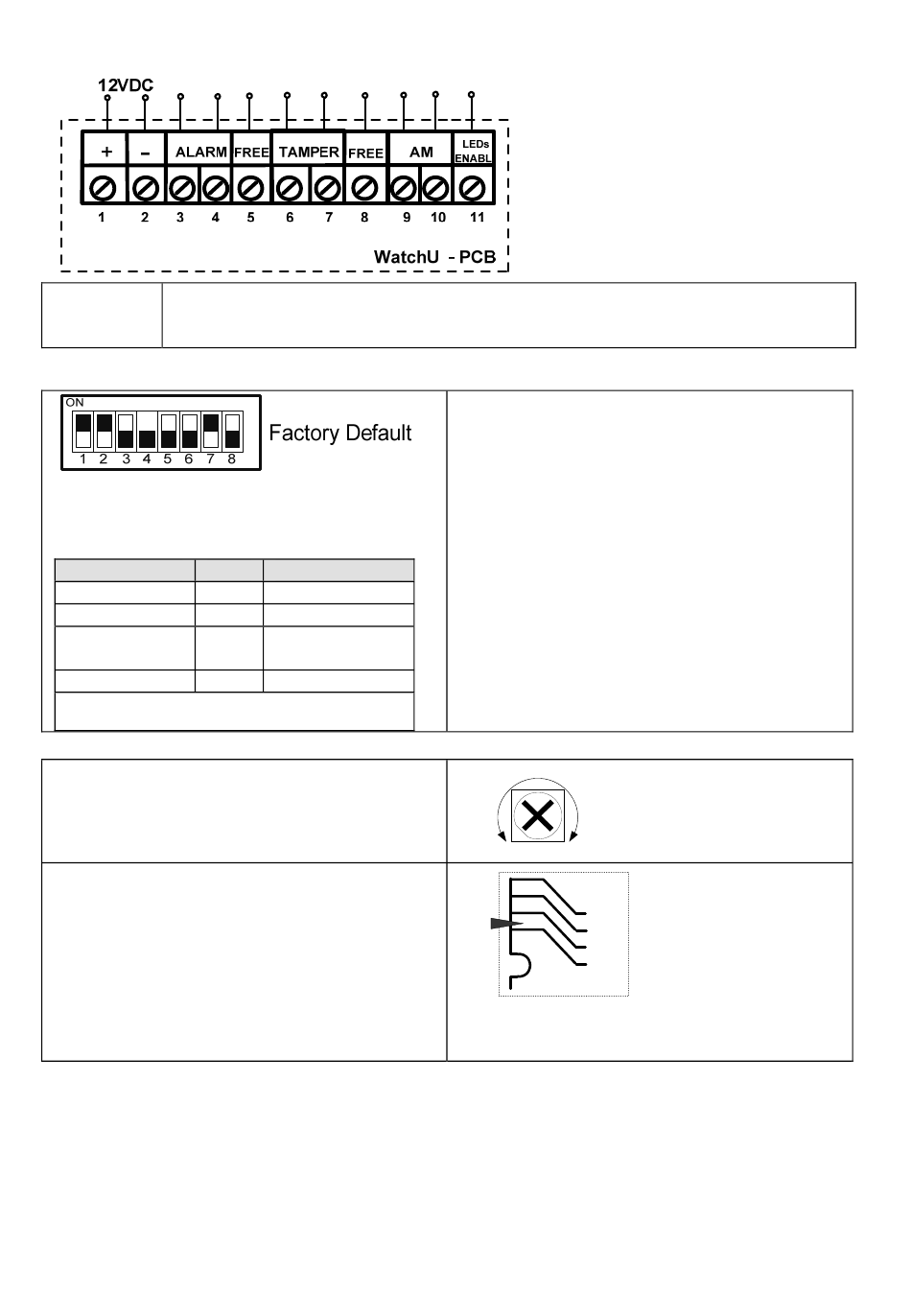

Terminal Wiring

LED Used to remotely control the LEDs when DIP1 is set to ON.
ENABLE Enable: input is +12V OR no terminal connection
Disable: Connect the input to 0V

DIP Switch Settings

DIP 1: LEDs operation
On: LEDs Enabled
Off: LEDs Disabled
DIP 2-3: Detection Sensitivity
Sensitivity DIP2
Low Off
Mid Off
Normal On
(Default)
Maximum* On
* In maximum sensitivity sway recognition is
disabled to achieve maximum sensitivity

Microwave Adjustment

Adjust Microwave coverage area by using the
trimmer on the PCB.
Walk test
Two minutes after applying power, walk test
the protected area to verify proper operation.
For installations on uneven surfaces slide the
PCB inside the internal base to the
appropriate setting according to the desired
height (1.0m, 1.5m, 2.2m, 2.7m) as printed on
the bottom left corner of the PCB.
DIP3
Off
On
Off
On
DIP 4: Anti masking Sensitivity
On: High
Off: Low
DIP 5: Detector's optics
On: Barrier / Long range
Off: Wide angle
DIP 6: Red LED /3 LED
On: Red LED only
Off: 3 LEDs
DIP 7: Anti masking operation
On: Enabled
Off: Disabled
DIP 8: N/A
MIN MAX
PCB
1.00M
1.50M
2.20M
2.70M
3
