installation and maintenance sheet
NB: These assembly instructions must be given to end users for correct maintenance and so that they know how to change the bulb. The appliance must not be tampered with or
transformed and it must be installed and used as supplied and in compliance with the National Rules on Installations. Any non-compliant installations will invalidate all forms of
guarantee. The company cannot be held responsible for damage caused by incorrect assembly.

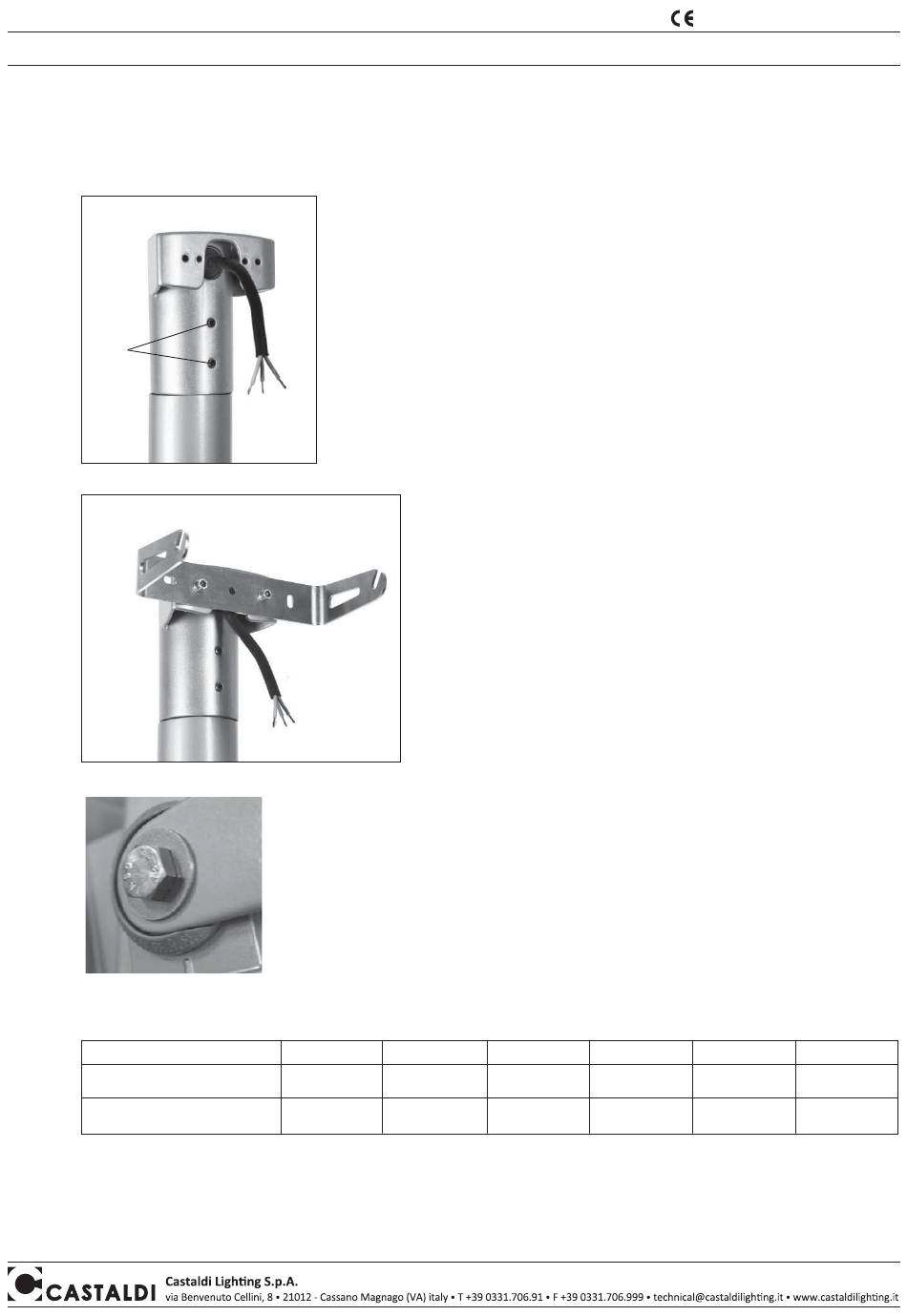

C
(pict.1)
(pict.2)
(pict.3)
floodlight type
Wind exposed surface
Max total weight
ACS/TP60 + floodlight
The ACS/TP60 pole connection is suitable for poles with Ø 60 mm x h. 100
mm top entry, for the assembly of floodlights equipped with bracket having
fixing holes interaxis 44 or 70 mm.
Instructions for a correct installation
•
•
•
Quality control
Should you have any complaint please get in touch with our company or its
sales organization. Please give the number of your order as well as the serial
number that recognizes the fixture
D30
D30R
0.12m
0.07m
2
2
12.9kg
6.4kg
Fit the connection to the pole top, placing the power cable into
the grommet (pict.1) and screw tight the 2 dowels "C".
Fix the floodlight bracket to the pole connection using the given screws
and elastic washers, tightening completely (pict. 2).
Fix the floodlight to the bracket following the delivered instructions
(pict. 3).
•
Open and connect the fixture (see instructions delivered with
the fixture)
.
D30T
D26
0.05m
0.05m
2
5.7kg
2kg
product in compliance with the requirements
of the European Community Directories
ACS/TP60
D26MH
0.06m
0.07m
2
2
5.6kg
D02
2
8.3kg
