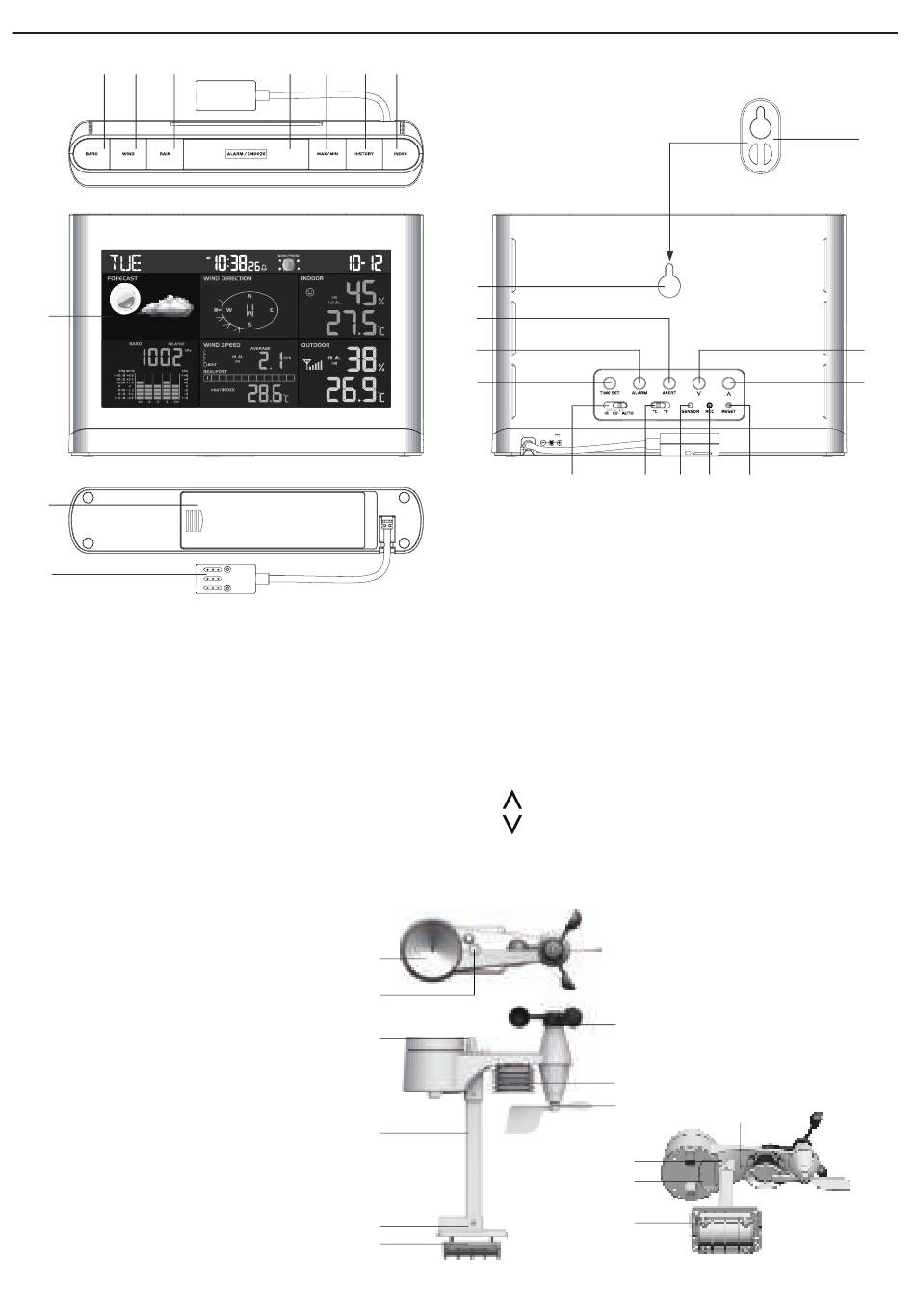

OVERVIEW

CONSOLE
1 2 3
8
9
10
1. [ BARO ] key
2. [ WIND ] key
3. [ RAIN ] key
4. [ ALARM / SNOOZE ] key
5. [ MAX / MIN ] key
6. [ HISTORY ] key
7. [ INDEX ] key
8. LCD display
9. AAA battery compartment
10. Power jack / Temperature sensor
11. Wall-mounting hole
WIRELESS 5-IN-1 SENSOR
1. Rain collector
2. Balance indicator
3. Antenna
4. Wind cups
5. Mounting pole
6. Radiation shield
7. Wind vane
8. Mounting base
9. Mounting claim
10. Red LED indicator
11. [ RESET ] key
12. Battery door
13. Screws
4 5 6 7
1
2
3
5
8
9
4
11
12
13
14
DC 5V 600m A
15
12. [ ALERT ] key
13. [ ALARM ] key
14. [ TIME SET ] key
15. [ HI / LO / AUTO ] dimmer slide switch
16. [ °C/°F ] slide switch
17. [ SENSOR ] key
18. [ RCC ] key
19. [ RESET ] key
20. [
] key
21. [ ] key
22. Extend wall mount holder
4
6
7
11
12
13
16 17 18 19
10
22
21
20
