Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.
RAVTRANS3 will fit an existing GE Appliance RAVTWPT8 plenum kit.
RAVTRANS3 kit is required when replacing an AZ90/AZ91 series vertical air conditioner with a new AZ95
series vertical air conditioner that is installed in an RAVWPT8 wall plenum. The RAVWPT8 is the black
telescopic sheet metal plenum that was used for AZ90/AZ91 installations with exterior walls less than 8
inches thick. Differences in chassis designs between the AZ90/AZ91 series and AZ95 series require careful
installation and planning. Changes in drain exit locations and drain routing, electrical connections, platform
height, and conditioned air duct locations are all items that need to be considered when replacing an AZ90/
AZ91 series unit with an AZ95 series unit.

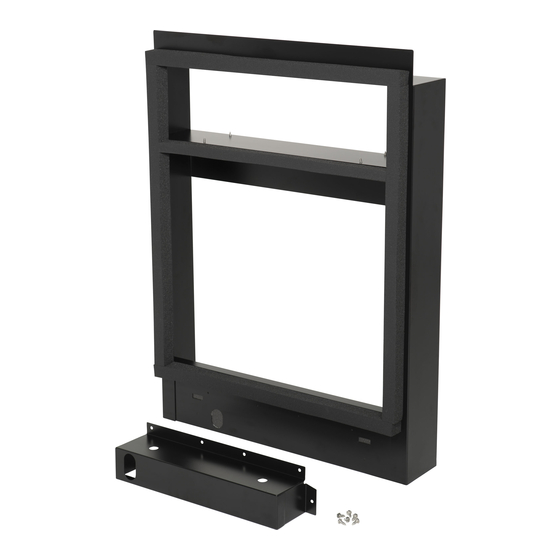

Parts Included
• Transition Plenum with Air Divider
• 10 - #10 ¾" long 5/16" hex head sheet metal screws
• Front Bracket

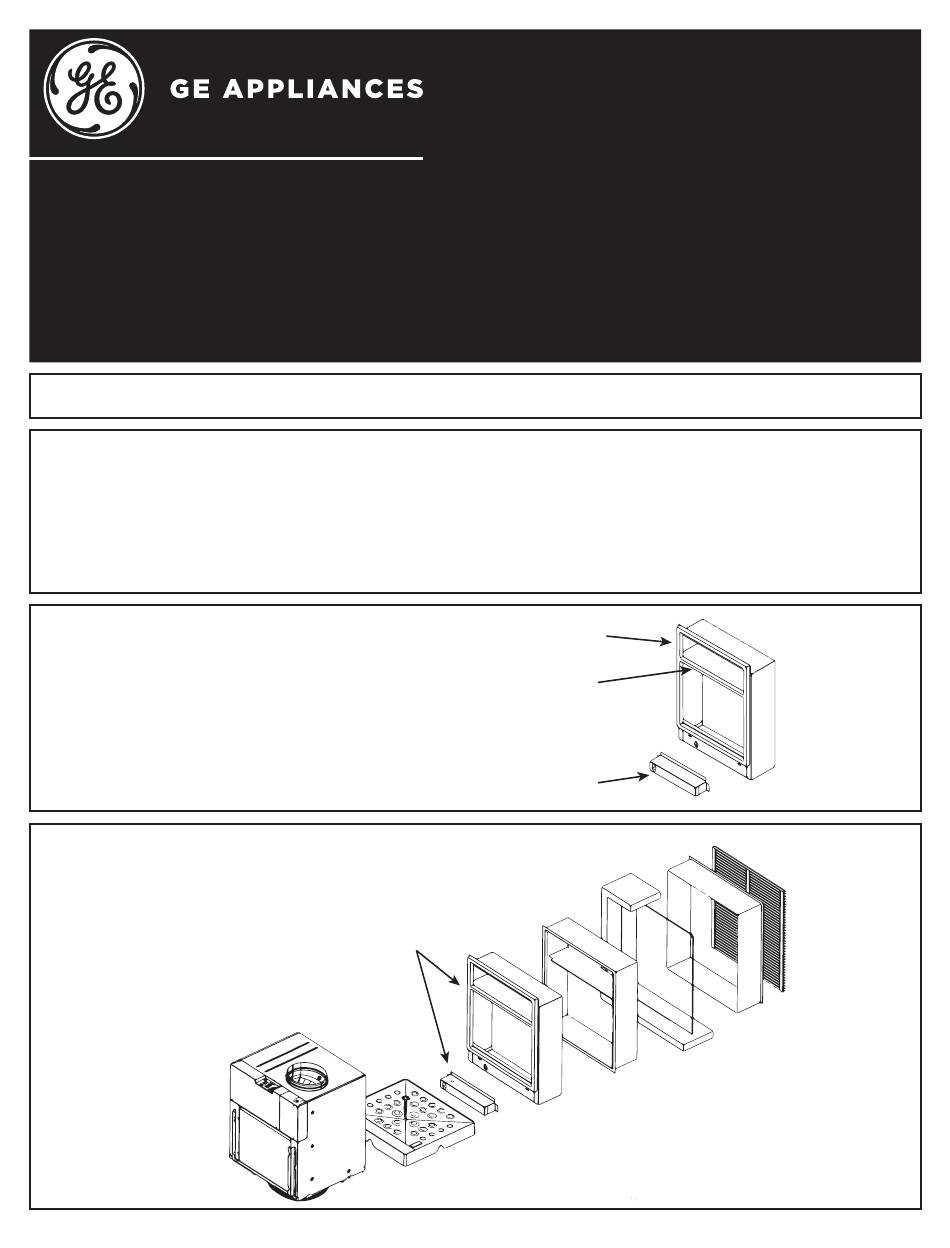

Installation Overview
Unit*
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Installation Instructions
for your new
RAVTRANS3
Transition Plenum
For replacing AZ90, AZ91 series units with a 5.5" -
8" outside wall depth
Air Divider
Front Bracket
Existing Wall
Plenum RAVWPT8
Inside*
Included in
RAVTRANS3
RAVTRANS3
RAVDPLAT*
Plenum
Exterior/ Outside
Wall
*Sold Separately
31-5000569 Rev. 0 11-20 GEA
Existing
Architectural
Louver*
Existing Wall Plenum
RAVWPT8 Outside*
