Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.
YOUR WALL PLENUM WILL ONLY WORK IF INSTALLED CORRECTLY. MAKE SURE TO INSTALL THE WALL PLENUM IN
THE CORRECT ORIENTATION AS SHOWN IN THE ILLUSTRATIONS. For easier installation, Grille Kit RAVAL4 should be installed
at time of Wall Plenum Installation.

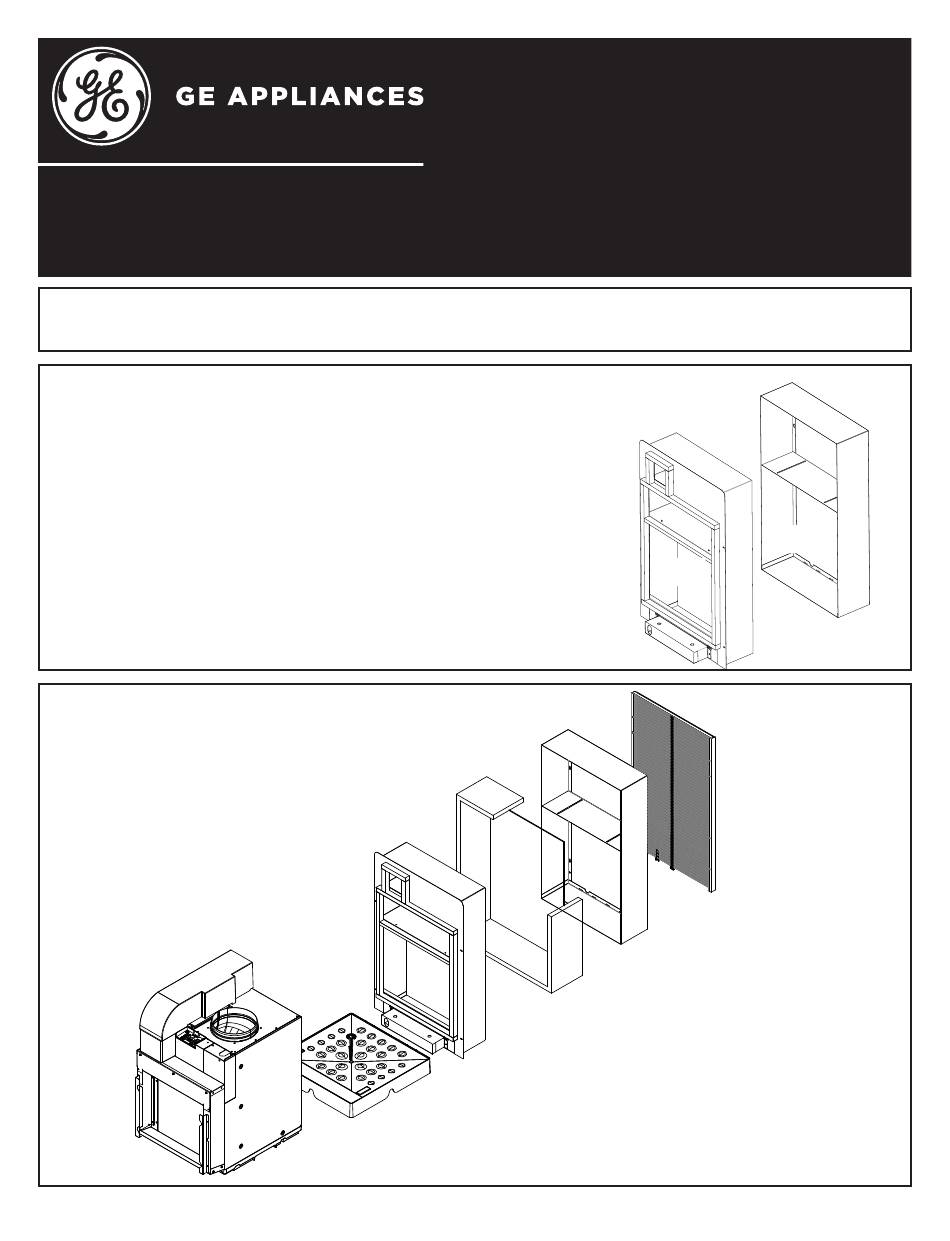

Parts Included
There are two parts to a Wall Plenum:
Part A - Outside Plenum
Installed so the large opening is on the bottom and the drain
holes and keyhole slots for attaching the grille are on the
outside of the building.
Part B - Inside Plenum
Installed so the large opening is on the bottom and the top and
side flanges are against the inside wall of the building.
Materials Needed (Field Supplied Parts)
• Exterior silicone caulk (recommended)
• Flashing
• Shims
• Header Material/Wall Studs
• 1"-3" Screws to attach the plenum assembly to the wall studs.
• Grille Kit RAVAL4 (sold separately)
Installation Overview
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Properly sized header
is required for structural
support. Proper caulking
and flashing are required
RAVDPLAT
Unit
Installation Instructions
for your new
RAVWPT15B
Wall Plenum
Part B Inside
Wall Plenum
Part A Outside
Wall Plenum
Exterior/Outside
Wall
Part B Inside
Wall Plenum
1
Large
opening
Large
opening
Part A outside
Wall Plenum
NOTE: The plenum has
a wax cardboard weather
cover. Do not remove this
cover until ready to install
the grille (RAVAL4)
31-5000601 Rev. 0 07-21 GEA
