Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the end user.
Note to end user – Keep these instructions with your Owner's Manual for future reference.
YOUR WALL PLENUM WILL ONLY WORK IF INSTALLED CORRECTLY. MAKE SURE TO INSTALL THE
WALL PLENUM IN THE CORRECT ORIENTATION AS SHOWN IN THE ILLUSTRATIONS. For easier
installation, Grille Kit RAVAL3 should be installed at time of Wall Plenum Installation.
Parts Included
There are two parts to a Wall Plenum:
Part A - Outside Plenum
Installed so the large opening is on the bottom and the drain holes
and keyhole slots for attaching the grille are on the outside of the
building.
Part B - Inside Plenum
Installed so the large opening is on the bottom and the top and side
flanges are against the inside wall of the building.
Materials Needed (Field Supplied Parts)
• Exterior silicone caulk (recommended)
• Flashing
• Shims
• Header Material/Wall Studs
• 1" - 3" Screws to attach the plenum assembly to the wall studs.
• Grille Kit RAVAL3 (sold separately)

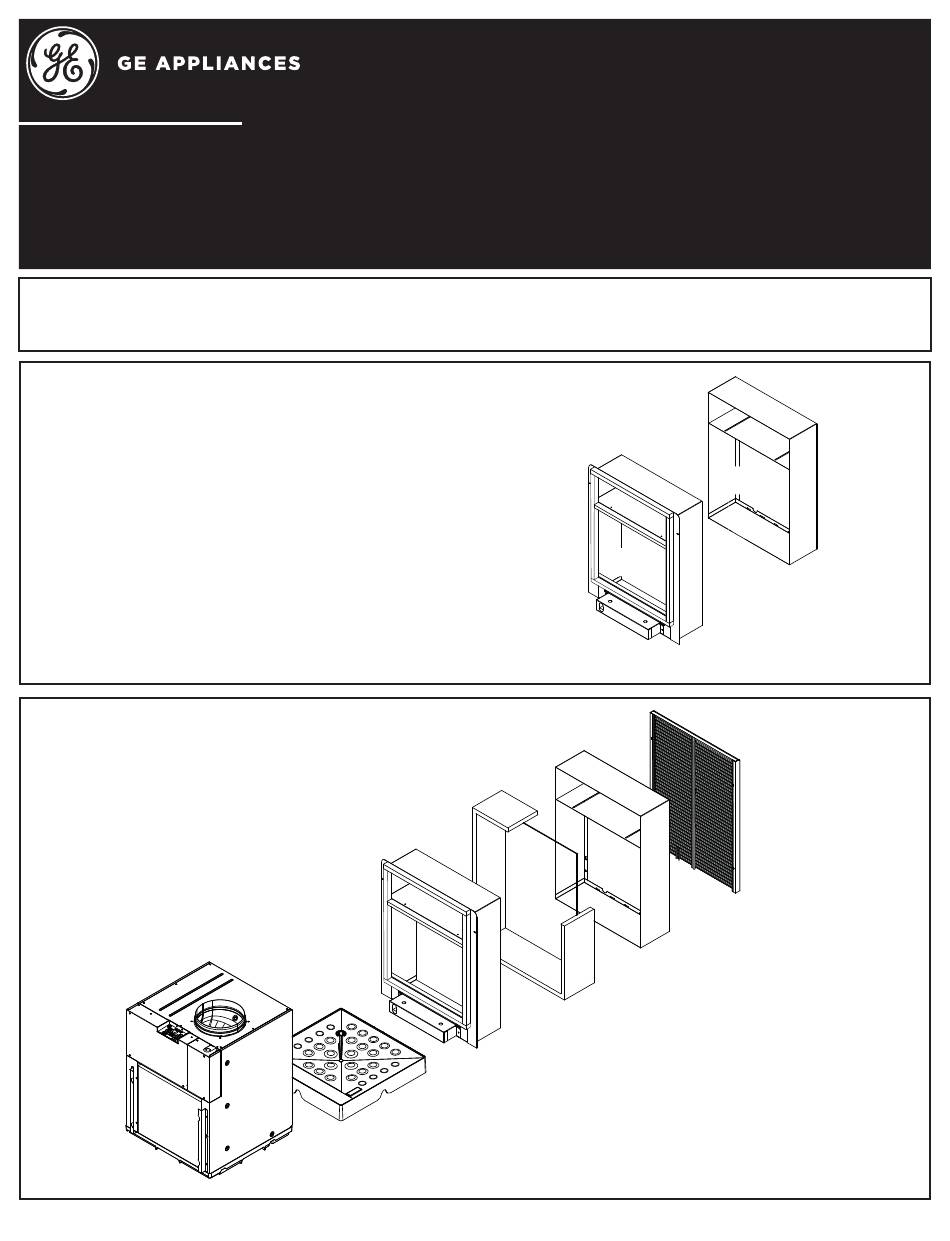

Installation Overview
Properly sized header is
required for structural
support. Proper caulking
and flashing are required
RAVDPLAT
Unit
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Installation Instructions
for your new
RAVWPT9 & RAVWPT15
Wall Plenum
Part B Inside
Wall Plenum
Large
opening
Exterior/
Outside Wall
Part B Inside
Wall Plenum
Large
opening
Part A outside
Wall Plenum
NOTE: The plenum has a
wax cardboard weather
cover. Do not remove
this cover until ready
to install the grille
(RAVAL3)
Part A Outside
Wall Plenum
31-5000506 Rev. 1 05-22 GEA
