Installation Instructions
Install Your Washer

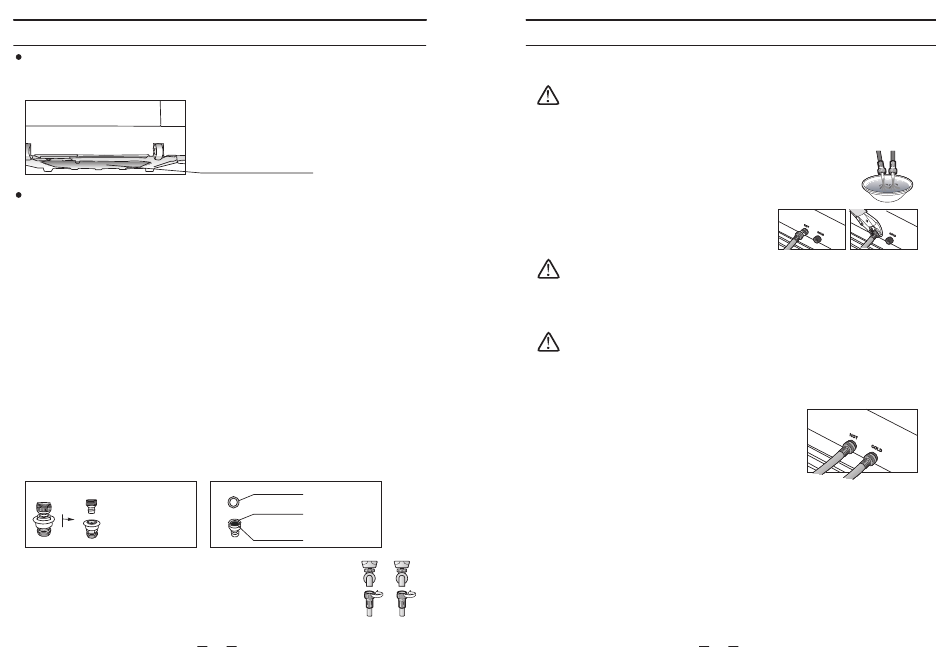

Step 2: Install the Bottom Cover
Slide the bottom cover into the slots on bottom surface of the unit as in the
following figure, and fix it with two screws attached with the unit.
Step 3: Connect the water hose
1.The Quick Connection Adaptor is primarily for quick connection to a single
faucet, such as a typical kitchen sink, in cases where the washer is stored in a
different place than where it is used. Skip this step if you are connecting the
washer to a sink with separate hot and cold faucets.
The adaptor consists of two parts that quickly connect or disconnect. One part,
the faucet fitting, is for connection to the faucet and the other part, the hose
fitting, connects to the cold water hose of the washer.
- Pull back on the white ring to free the faucet fitting from the adaptor for
installation into the faucet.
- Screw the end of the cold water hose onto the base of the hose fitting.
- If the faucet has internal screw threads, unscrew the aerator if present from
the tip of the faucet. Then screw the faucet fitting into the faucet. Make sure
that the black rubber gasket is on the top of the adaptor before screwing it in.
- If the faucet has external screw threads, remove the gasket from the top
of the faucet fitting, and screw the fitting over the external threads.
- Pull back on the white ring to connect the two parts of the adaptor back together.
NOTE:
When connected to a single faucet that can dispense either hot or cold water,
both hot and cold water can be run through the cold water line for washing use.
However, it is recommended to only run cold water washes when the adaptor is
connected to such a faucet.
Pull down on the white ring
to divide the adaptor into
two parts.
Top part: Faucet fitting
Bottom part: Hose fitting
2.Connect the ends of the water supply hoses to the HOT and
COLD faucets. For convenience, use the Quick Connection
Adaptor for connection to the cold water faucet. See instructions
for Quick Connection Adaptor use in Step 1 above.
Bottom Cover
Rubber gasket
Inner threads for outer threaded faucet.
Outer threads for inner threaded faucet
Cold
13
Installation Instructions
Install Your Washer
3.Tighten the fittings by hand until they are snug, and then tighten them an
additional two-thirds of a turn with a wrench.
When you fasten the fittings, do not fasten them too tightly or apply tape
or sealant to the faucets or water supply intakes. This can damage the
WARNING
fittings. After you have connected the water supply hoses to the faucets,
ensure that they are connected securely by pulling the water supply hoses
downwards.
4.Place the unconnected ends of the hoses into a bucket
and open the faucets connected to the two water supply
hoses for 10 or 15 seconds to remove any foreign substances
from the hoses. Close the faucets before continuing.
5. Connect the ends of the water supply
h o s e s t o t h e w a t e r s u p p l y i n t a k e
connections at the back of the washer.
The water supply hose connected to the HOT faucet must be connected to
the hot water supply intake and the water hose connected to the COLD
WARNING
faucet must be connected to the cold water supply intake.
6.Tighten the fittings by hand until they are snug, and then tighten them an
additional two-thirds of a turn with a wrench.
Confirm that the water supply hoses are not twisted or bent. If the hoses
are twisted or bent, the hoses can leak and cause electric shock due to the
WARNING
water leakage .To ensure the correct water usage, connect both the HOT
and COLD water faucets. If either or both are not connected ,an error
code can occur.
If you do not want to use the HOT water
supply hose, install the water intake cap
into the HOT water supply intake hole.
In this case, you must select Cold water
as the wash temperature choice
See Wash Temp in Control Panel section
on page
7. Turn on the HOT and COLD water supplies and check all the water supply intake
connections and the faucets for water leaks.
Hot
.
.
