Installation Instructions
Choose the Proper Location
Electric
Use 120Volt 60Hz 15 Amps fuse or circuit breaker.
Individual branch circuit serving only for your washer is recommended.
Never use an extension cord.
WARNING
Grounding
Electrical grounding is required for this washer.
This appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current.
This appliance is equipped with a power cord having a three-prong grounding
plug for use in a properly installed and grounded outlet.
The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
An improperly connected equipment-grounding conductor can increase the
risk of electrical shock. Check with a qualified electrician or serviceman if
WARNING
you are not sure whether the appliance is properly grounded. Do not modify
the plug provided with the appliance. If it does not fit the outlet, have a
proper outlet installed by a qualified electrician. To prevent unnecessary
risk of fire, electrical shock or personal injury, all wiring and grounding must
be done in accordance with the National Electrical Code ANSI/FNPA, No.70
Latest Revision and local codes and ordinances. It is the personal responsibility
of the appliance owner to provide adequate electrical service for this appliance.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot
water pipes.
WARNING
Water
To correctly fill your washer in the proper amount of time, water pressure of 14
to 70psi (100 to 500 kPa) is required.
Water pressure less than 14psi may cause water valve failure, or may not allow
the water valve to shot off completely, or may extend the fill time beyond what
your washer controls allow, causing your washer to turn off and alarm error.
A time limit is built into the controls to prevent flooding in your home if a hose
becomes loose.
The water faucet must be within 4 feet / 122cm of the back of your washer to
match the inlet hoses provided with your washer.
To avoid the possibility of water damage:
- Have water faucets easily accessible
- Turn off faucets when the washer is not in use.
- Periodically check that there is no leakage from the water inlet hose fittings.
11
Installation Instructions
Choose the Proper Location
Drain facility
The recommended height of the standpipe is 35in. or 90cm.
The drain hose must be routed through the drain hose clip to the standpipe.
The standpipe must be large enough to accept the outside diameter of the drain hose.

Install Your Washer

Before installing, make sure there are rubber gaskets
inside the fittings at both ends of the water supply
WARNING
hoses.
If there are no water inlet hoses packed with the washer
or if the hoses are damaged, Call Midea Service
Center at 1-866-646-4332 Installing the water supply .
hoses without rubber gaskets can cause water leakage.
When you initially install the washer, be sure to use
new hoses. Failing to do so may result in a water
leakage or overflow and may damage your property.
If a hose is too short, replace the hose with a longer,
high pressure hose.

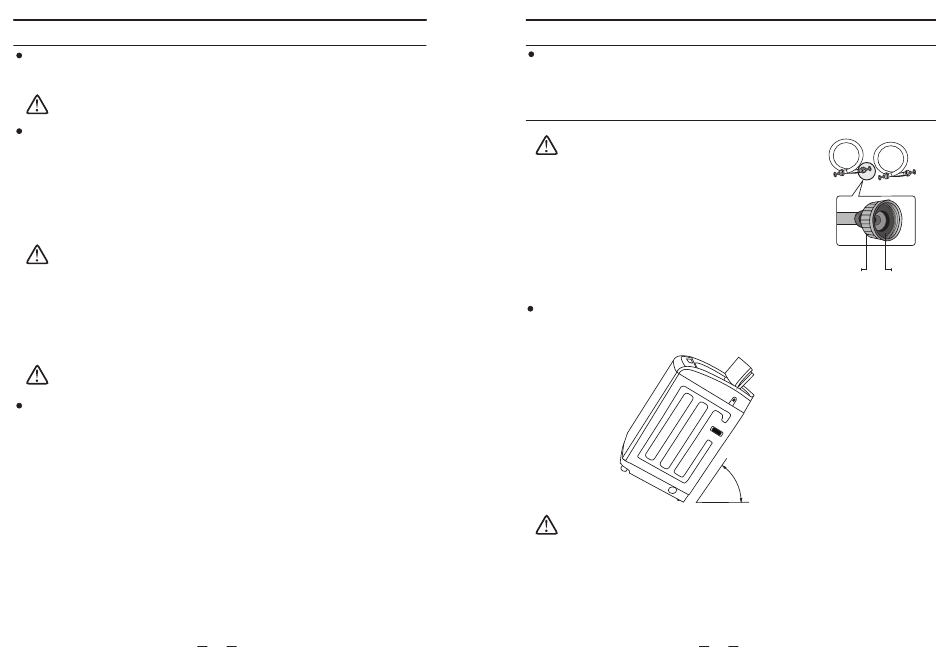

Step 1: Move your washer to selected position
Tilt the unit back onto its rear rollers and push it forward as shown in the figure
below. Move the unit to a location as described in the previous Choose the Proper
Location section.
Front of the
washer
Make sure the location has a hard, level surface without carpeting.
There should be no direct sunlight.
WARNING
Do not expose the unit to freezing temperatures (under 32° F or 0° C).
Coupling
Back of the
washer
O
60~70
12
Rubber
gasket
