QUICK USE GUIDE
ANTENNA/
CABLE SIGNAL
1
2

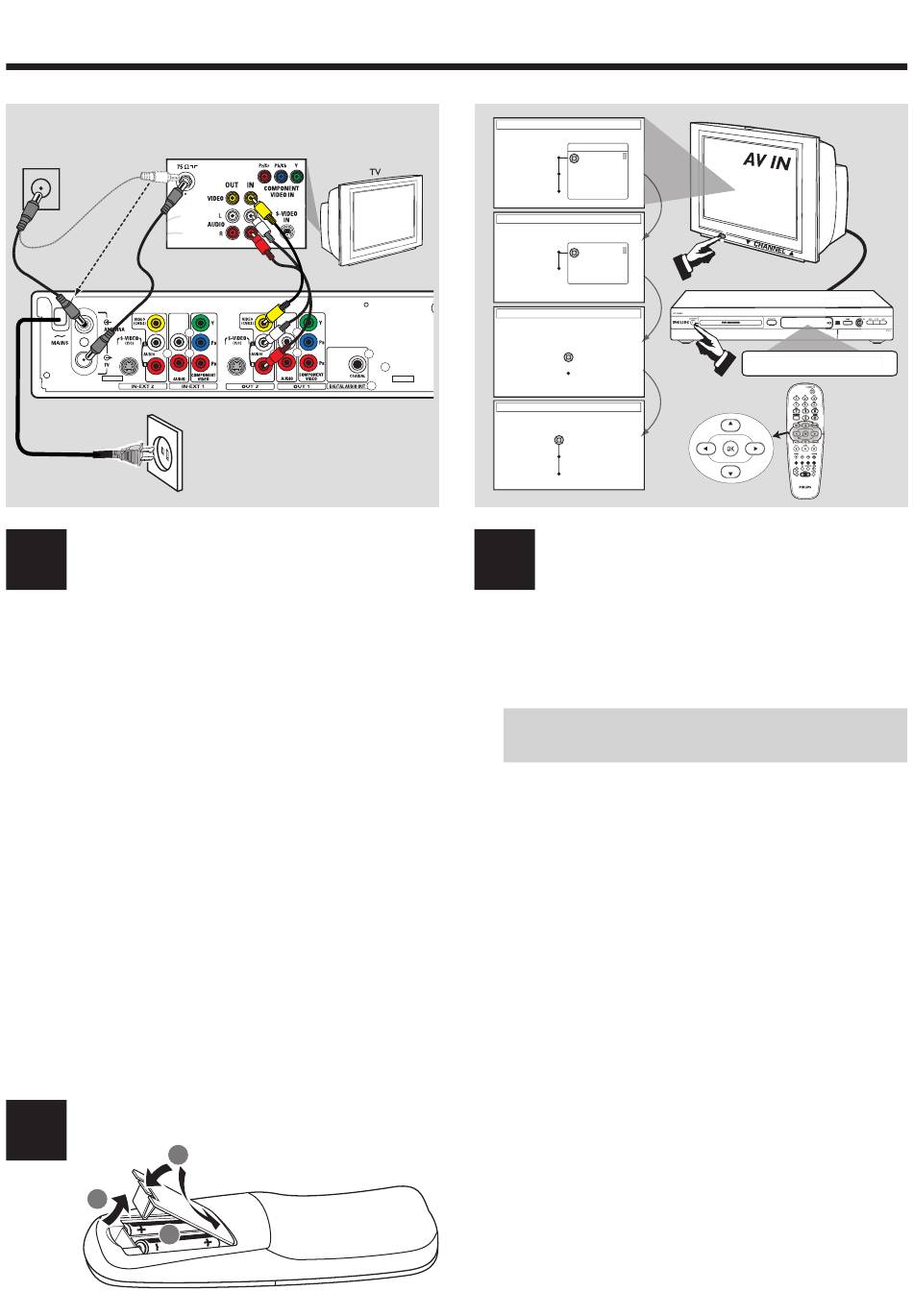

Connect DVD recorder
1
1
Remove the antenna cable plug from your TV (or Satellite
Receiver/Cable Box.) Connect it to the ANTENNA input
jack at the back of the DVD recorder.
2
Use the supplied antenna cable to connect the DVD
recorder's TV output jack to the antenna input jack at the
back of your TV set.
3
Use the supplied AV cables (yellow plug) to connect the
DVD recorder's VIDEO (CVBS) (OUT 2) jack to the
Video In jack at the back of your TV set.
4
Use the supplied AV cables (red/white plugs) to connect the
DVD recorder's AUDIO L/R (OUT 2) jack to the audio
input jack at the back of your TV set.
5
Connect the power cable from the DVD recorder's
~ MAINS to the power supply.
Helpful Hint:
If your TV does not have the above-mentioned
connectors, please refer to the user manual for more
information on others possible connection to your
TV set.
Prepare the remote control
2
3
1
2
3
4
DVD recorder back panel
5
4
LANGUAGE AND COUNTRY
Select Language and Country
Menu
Language
English
Spanish
Country
French
Done
5
TV FORMAT
Select your TV format
TV format 4:3 Panscan
4:3 Letterbox
Done
16:9
6
CHANNEL SEARCH
Automatic channel search will find and
store all channels. Make sure to connect
the Antenna.
Search Channels Start
Skip Search
TIME AND DATE 7
Please check the Date and if incorrect, navigate
right to correct the Date.
Time 09:00 AM
Date 06.30.2004
8
Done
OK
Start first installation
3
1
Press STANDBY-ON 2 on the DVD recorder to switch
it on.
2
Switch on the TV set and select the correct video in channel,
the First Installation menu appears on the TV.
NO PICTURE! Press the TV/AV button or CHANNEL 3 4
button on the TV to select the correct video in channel, for
example, 'EXT', '0', or 'AV'.
3
Press 3 4 to select an item in the menu.
Press 2 to access the selected item's options.
Press 1 to confirm your selection.
When you complete, select { Done } in the menu and press
OK to continue.
4
{ Language and Country } menu appears.
{ Language } – select on-screen display language.
{ Country } – select country of your residence.
5
{ TV Format } menu appears.
{ TV Format } – select TV screen display.
6
{ Channel Search } menu appears.
Press OK to start automatic TV channel search.
Once the TV channel search complete, the total number of
channels found appears.
7
{ Time and Date } menu appears.
If the time and date shown on the TV are not correct,
press 2 to enter the respective time/date field. Press 3 4 to
change the first digit and press 2 to go to the next digit field.
Once complete, press OK to confirm.
8
YesDVD introduction dialog appears. Press OK to exit.
➜
The first installation is now complete.
The DVD recorder is ready for use!
See next page for basic recording and playback.
DVDR615
12nc: 3139 246 14341
2
1.3
IS THE TV ON?
1
3
CH+
CH-
CH- CH+
