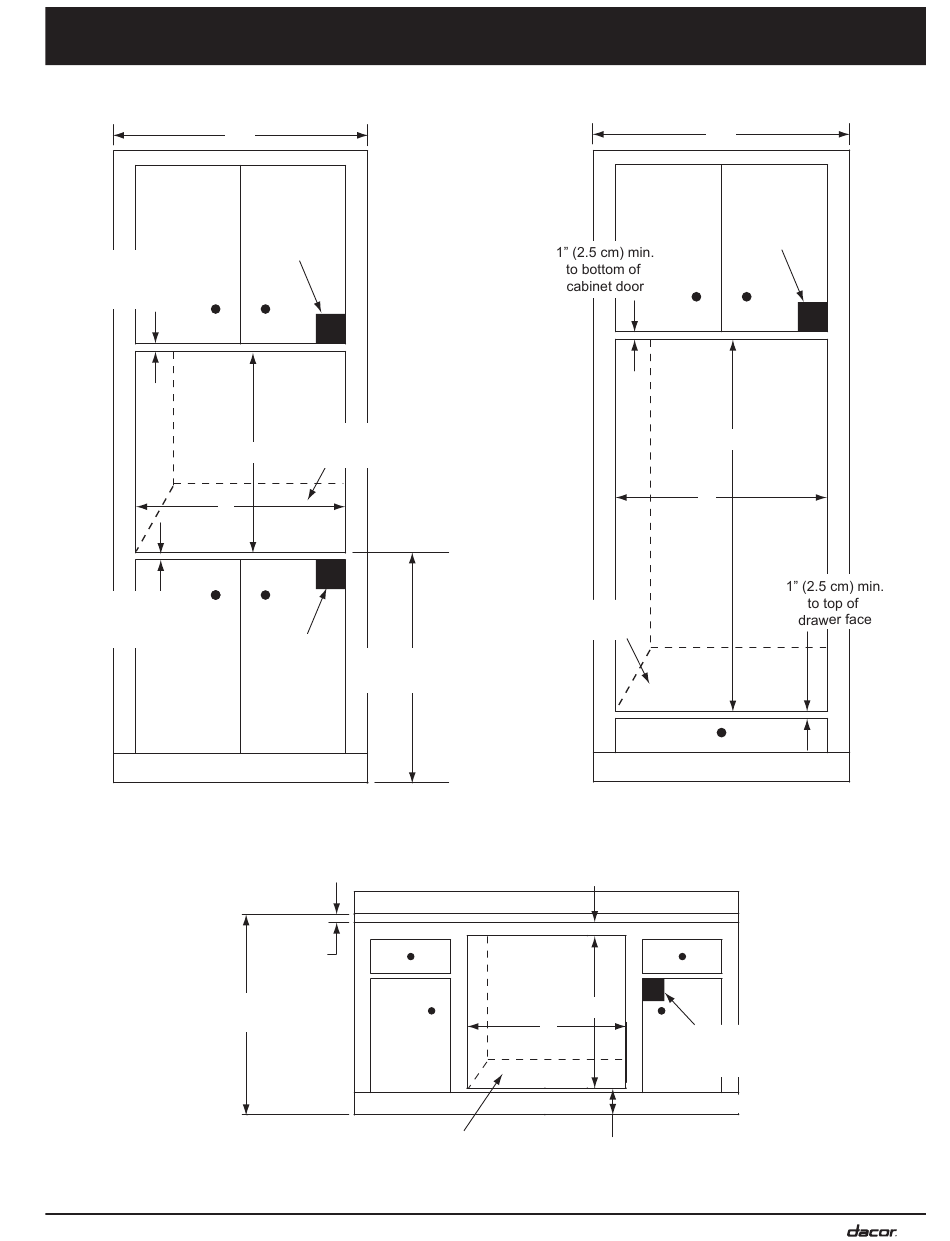

Cabinet Dimensions
1" (2.5 cm) min.
to bottom of
cabinet door
P
1" (2.5 cm) min.
to top of
cabinet door
4" typical toe kick
Single Wall Oven - Cutout Dimensions
36" typ.
(91.4 cm)
Installation Specifications
Cabinet tolerances: +1/16 (1.6 mm), -0, unless otherwise stated.
N
Recommended
electrical
location
3/4" (1.9 cm)
R
support platform
Alternate
electrical
31 1/4" (79.4 cm)
location
recommended
1 1/2"
(3.8 cm)
typical counter
3/4" (1.9 cm)
support platform
Single Wall Oven - Installed Under Counter
3/4" (1.9 cm)
support platform
4" typical toe kick
Double Wall Oven - Cutout Dimensions
1" (2.5 cm) min. to combustibles
R
P
4" typical toe kick
1" (2.5 cm) min.
to combustible floor
N
Recommended
electrical
location
R
P
Recommended
electrical
location
