Electrical Connection

WARNING
• If the electrical service provided does not meet the
Electrical Specifications (see page 4), do not
proceed with the installation. Call a licensed electrician
to correctly install the required wiring.
• Failure to disconnect power prior to installation may
result in an electric shock or fire hazard.
• Do not turn on power to the appliance until the oven is
properly grounded according to these instructions.
• The installer must connect the ground terminal (or
lead) on the appliance to a grounded, metallic, perma-
nent wiring system or grounding conductor. Failure to
do so may result in an electric shock hazard.
• Do not use an extension cord with this appliance. Such
use may result in fire, electric shock or personal injury.
• Do not install a fuse in the neutral or ground circuit. A
fuse in the neutral or ground circuit may result in an
electric shock hazard.
• The appliance must be connected to the power supply
with copper wire only. The use of aluminum wire may
result in unsatisfactory conditions.
IMPORTANT
Provide slack in the conduit to allow the oven to slide for-
ward for servicing.
The electrical connection leads from the supplied appli-
ance conduit may be a smaller gage than the standard
household wiring of the dedicated supply circuit. They
are suitable for connection to household wiring under the
jurisdiction of the National Electric Code, and/or the local
inspection authority.
1. Before proceeding, turn off power to the circuit to which
the oven will be connected at the circuit breaker panel
or fuse box.
2. Position the oven directly in front of the cabinet cutout.
3. Feed the appliance conduit into the junction box and
attach it using a UL approved strain relief.
4. Depending upon local codes, utilize one of three meth-
ods to connect the appliance to power:
◊ Connect to a four wire electrical system
◊ Connect to a three wire electrical system, where
local codes permit
◊ Connect to a three wire electrical system with
external ground, according to local codes.
See pages 9 to 11 for detailed directions.
Installation Instructions
NOTE
Connecting to a Four Wire Electrical
System
1. Separate the wires coming out of the appliance conduit.
2. Connect the white wire from the appliance conduit to
the white (neutral) supply wire in the junction box.
3. Connect the black wire from the appliance conduit to
the black (L1) supply wire in the junction box.
4. Connect the red wire from the appliance conduit to the
red (L2) supply wire in the junction box.
5. Connect the green wire from the appliance conduit to
the green (ground) wire in the junction box.

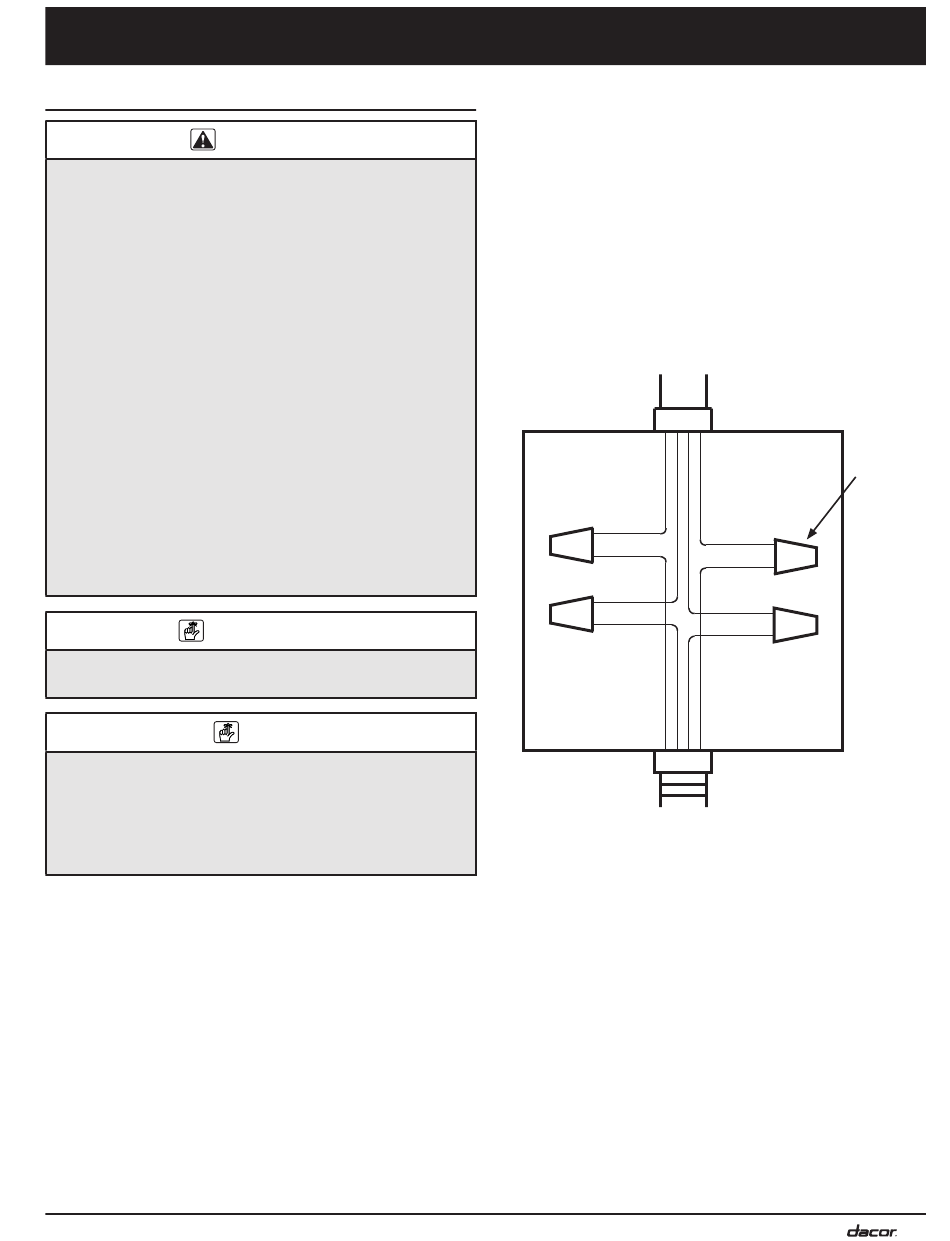

Junction box
RED
RED
GREEN
GREEN
Four Wire Connection
Incoming power
Wire nut,
4 places
WHITE
WHITE
BLACK
BLACK
Conduit to
oven
continued...
9
