EN
English (English)

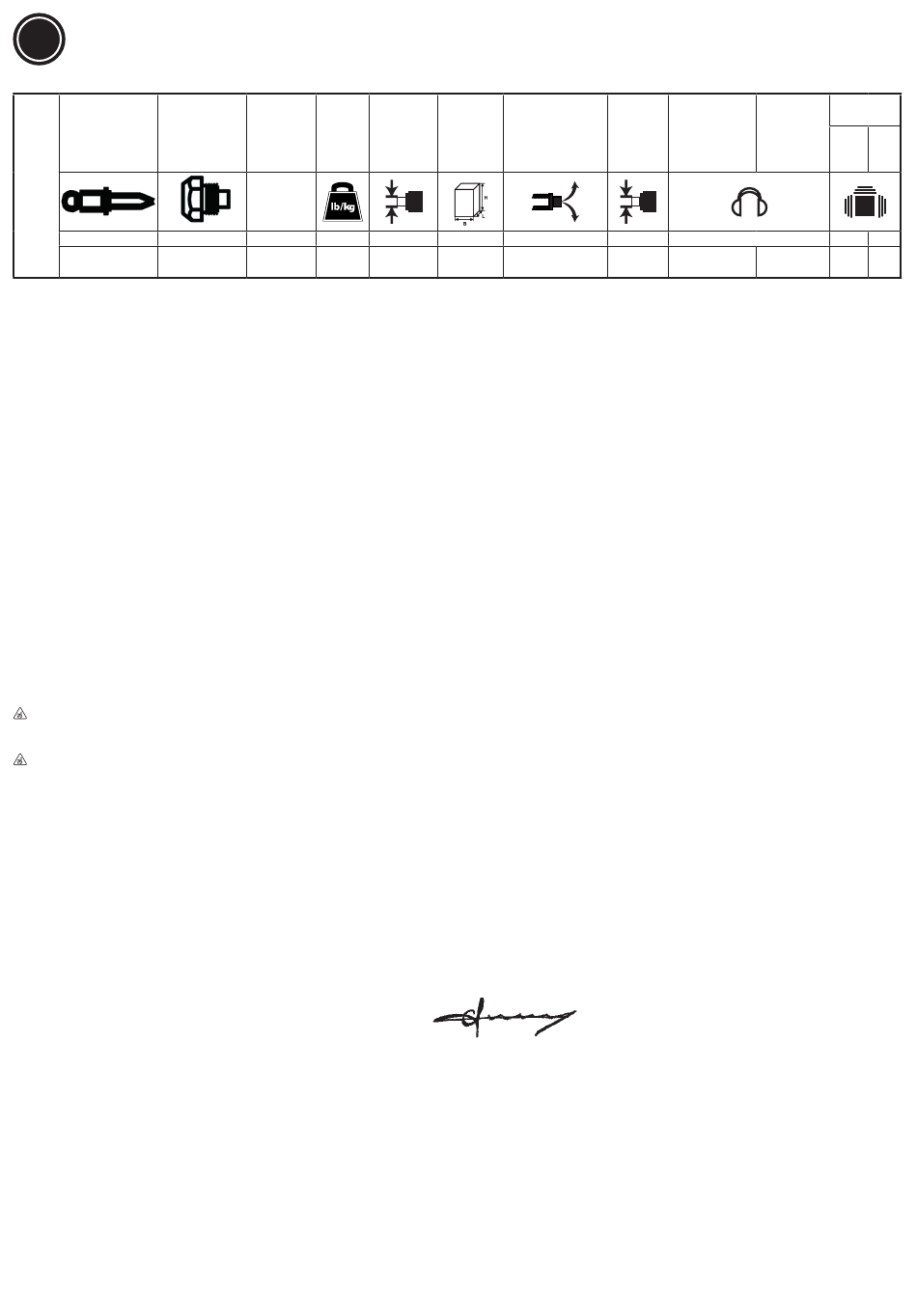

1.Technical Data
Rivet
Nozzle
Model
1
[mm]
max. pressure 6.3bar(90psi)
: Blows per minute, k Uncertainty; L
a
h
Declaration of noise and vibration statement (ISO 15744 and ISO 20643 and EN 12096)
These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared va-
lues of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured
in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way
the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user. We, RODCRAFT PNEUMA-
TIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual exposure, in an individual risk
assessment in a work place situation over which we have no control. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
An EU guide to managing hand-arm vibration can be found at www. pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf. We
recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management procedures
can be modified to help prevent future impairment.
2. Machine type(s)
• This rivet gun is designed for inserting rivets into all materials.No other use permitted. For professional use only.
• Please read the instructions carefully before starting the machine.
3. Mounting instruction
• Always mount rivet seat corresponding to selected rivets. Ensure the use of correct chuck jaws according to rivet size. The appropiate tools are supplied;
please see details under "Maintenance".
• Insert the blind rivet into the rivet seat.
• Press the trigger to pull the rivet (wear eye protection).
4. Lubrication
• Use an air line lubricator with SAE #10 oil, adjusted to two drops per minute. If an air line lubricator cannot be used, add air motor oil to the inlet once a day.
• Apply one drop of machine oil to the chuck jaws every 5,000 cycles.
5. Maintenance instruction
• Keep the tool clean and away from aggressive chemicals. Do not leave the tool outdoors.
• Unscrew the casing head with jaw spanner. Clean chuck jaws, chuck jaw seats and casing head. Lubricate the chuck jaws. Assemble casing head in opposite
sequence (do not overtighten casing head).
• Use jaw spanners to unscrew or replace chuck jaws or chuck jaw seats. Remove old chuck jaw from chuck jaw seat and replace.
Damages due to noncompliance are excluded from the warranty.
• A complete oil change is not necessary! Check and fill up hydraulic oil level if after approximately 100,000 cycles the travel decreases or a blind rivet is not
completely pulled. Observe the safety precautions.
Only use hydraulic oil (ISO VG22) approved by the manufacturer. Please note: Never use brake fluid.
6. Disposal
• The disposal of this equipment must follow the legislation of the respective country.
• All damaged, badly worn or improperly functioning devices MUST BE TAKEN OUT OF OPERATION.
• Repair only by technical maintenance staff.
7. Declaration of conformity
We,
Desoutter GmbH, Edmund-Seng-Str. 3-5, 63477 Maintal, Germany
Machine type(s):
Pneumatic Blind
Declare that the product(s): RC6738/RC6748
Serial Number: From A00001-YYYYMM to Z99999-YYYYMM
CHINA
Origin of the product:
is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : to "Machinery" 2006/42/EC
(17/05/2006)
applicable harmonised standard(s): EN ISO 11148-1:2011
Name and position of issuer
Pascal Roussy (R&D Manager)
:
Place & Date: Saint-Herblain, 19/11/2020
Technical file available from EU headquarter. Pascal Roussy R&D manager CP Technocenter 38, rue Bobby Sands - BP10273 44800 Saint Herblain - France
Copyright 2020, RODCRAFT
All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. This applies in particular to trademarks, model denominations,
part numbers and drawings. Use only authorized parts. Any damage or malfunction caused by the use of unauthorized parts is not covered by Warranty or
Product Liability.
Original Instructions
Force
Weight
F
2
3
4
[lb]
[mm]
[N]
[kg]
Sound pressure dB(A), K
pA
Riveter
Inner Hose
Dimension
Air Consumption
Dia.
L x W x H
5
6
[inch]
[inch.]
[Nl/s]
[mm]
[mm]
= K
= 3 dB Uncertainty.
pA
WA
Pneumatic Blind Riveter
Sound pressure
Air Inlet
L
pA
7
8
[mm]
[dB(A)]
RC6738 / RC6748
Vibrations
Sound power
L
wA
a
k
hd
9
10
11
[dB(A)]
[m/s²] [ m / s ² ]
