Yakima RimROC Instructions page 3

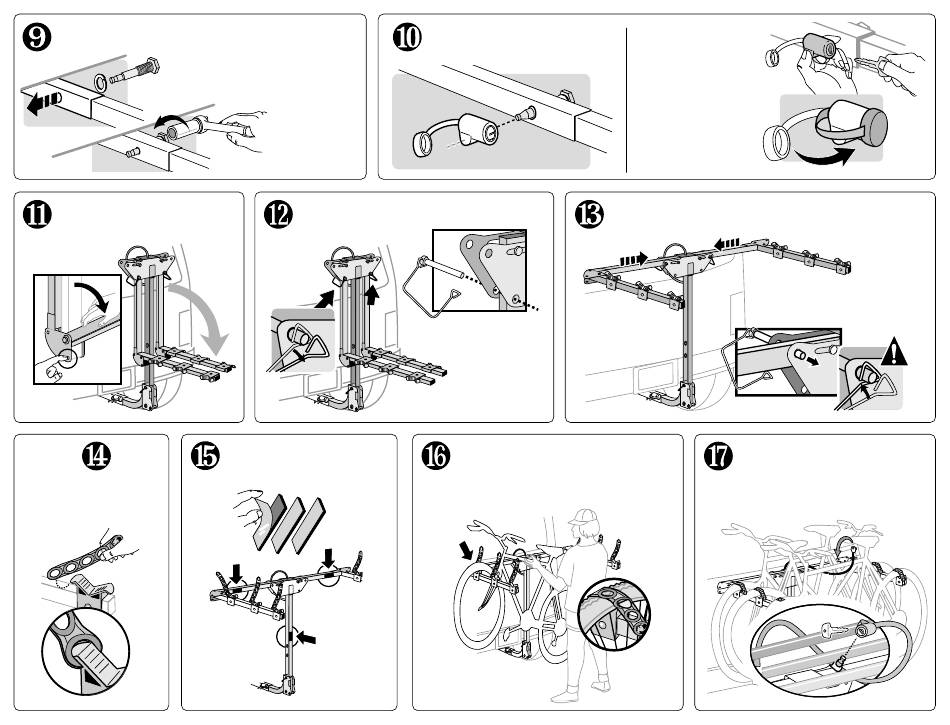

Install large HITCH-bolt and lock-washer.
Push the silver release
buttons and pivot the arms
down.
Hook a strap
onto each of the
six cradles.
1031832F-3/12
Use a 7/8 or 15/16
inch socket wrench
and TIGHTEN.
Remove the stop pins from both sides.
Position rubber pads to
protect bike finish.
Attach the hitch lock.
To load bike set ONE tire
at a time into cradles.
Pull hard to close straps.
Lock the carrier to
the vehicle.
Insert the key, lock
the hitch lock.
Cover the lock
opening.
Raise each arm and push it in toward
the mast until it stops.
Reset the pins into the upper
holes to secure the arms.
Pull cable through frames and
back over top of first bike.
Connect the lock to the lock
post. Lock it with key.
