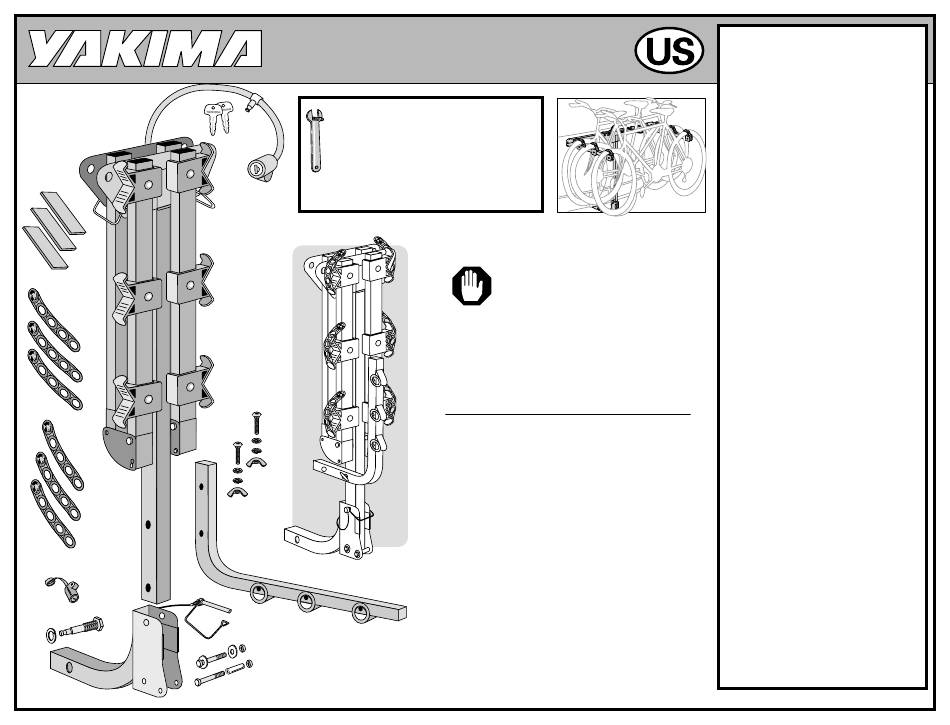

RimROC
TOOLS RECOMMENDED:
• You may need either a 7/8"
OR a 15/16" Socket wrench.
• 2 adjustable-end wrenches or
9/16" wrenches
• HITCH LOAD IS LIMITED TO THREE BIKES.
• OFF-ROAD DRIVING is not recommended
READ THESE
WARNINGS
and could result in damage to your
vehicle or your bikes.
This product is designed for a 2"
hitch receiver.
Some undersized receivers may
not accept this product.
A potential weak link is the hitch
receiver and the structure on
which it is mounted. Heavy bikes
or off-road driving could result in
damage to the hitch receiver. If
you do not know the capabilities
of your hitch receiver, seek a
professional to assess your
receiver and its mounting.
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL YAKIMA
RACKS AND ACCESSORIES BE
PROPERLY AND SECURELY
ATTACHED TO YOUR VEHICLE.
IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE
ACCIDENT, AND COULD CAUSE
SERIOUS BODILY INJURY OR
DEATH TO YOU OR TO OTHERS.
YOU ARE RESPONSIBLE FOR
SECURING THE RACKS AND
ACCESSORIES TO YOUR CAR,
CHECKING THE ATTACHMENTS
PRIOR TO USE, AND
PERIODICALLY INSPECTING THE
PRODUCTS FOR ADJUSTMENT,
WEAR, AND DAMAGE.
THEREFORE, YOU MUST READ
AND UNDERSTAND ALL OF THE
INSTRUCTIONS AND CAUTIONS
SUPPLIED WITH YOUR YAKIMA
PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO
NOT UNDERSTAND ALL OF THE
INSTRUCTIONS AND CAUTIONS,
OR IF YOU HAVE NO
MECHANICAL EXPERIENCE AND
ARE NOT THOROUGHLY FAMILIAR
WITH THE INSTALLATION
PROCEDURES, YOU SHOULD
HAVE THE PRODUCT INSTALLED
BY A PROFESSIONAL INSTALLER
SUCH AS A QUALIFIED GARAGE
OR AUTO BODY SHOP.
Part #1031832 Rev F
