5.4. Wiring of analog sensors

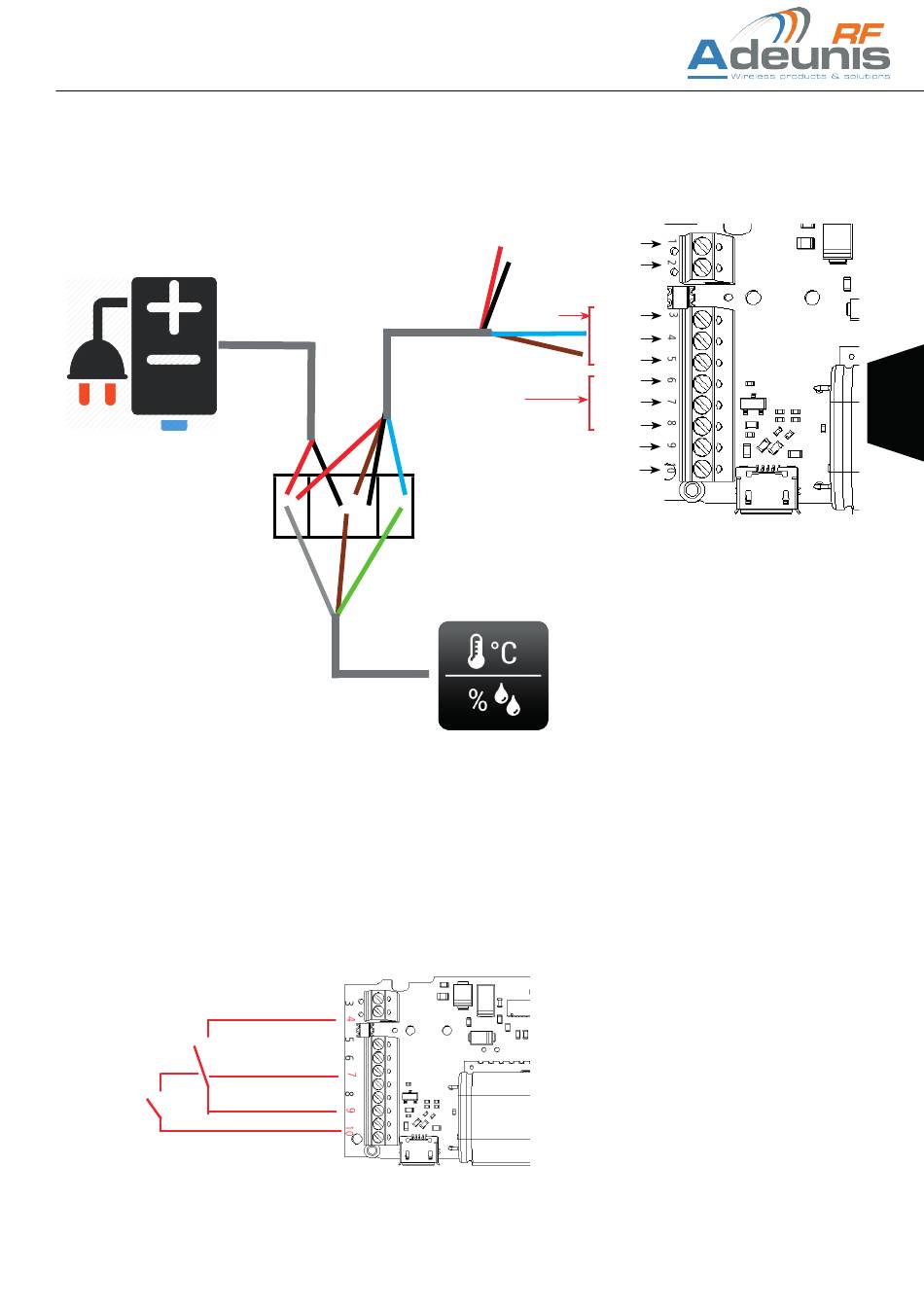

5.5. Example of Analog sensor(s) assembly

Electric power supply
example: 10-29 V, 100 mA (depending
on the sensor's needs

5.6. Wiring of the digital triggering inputs

The wiring of the digital inputs allows acquisition on the analog channels and a transmission of data on occurrence of an event on these inputs.
Capteur 1
Digital triggering on channel 1
Capteur 2
Digital triggering on channel 2
Channel 2
Temperature + humidity sensor
GND_1
GND_2
External power supply +
External power supply -
Channel 1
4-20mA
GND
0-10V
4-20mA
GND
0-10V
Digital triggering on channel 1
Digital triggering on channel 2
Direct mounting digital sensor(s)
