Basic operations
Main Menu
Push the [MENU] button (8) to show the main menu. On the home
screen you can choose the available modes (RADIO / DISC / Bluetooth
/ SD / USB / AUX / Bluetooth Music) or enter the CALENDAR, SWC
settings or SETUP menu.
Sound Control
• Volume
Turn the [VOL] button (9) to adjust the volume level.
• Audio settings
By pushing the [SEL] button (9) you will enter the audio menu and you
can adjust BASS / TREBLE / BALANCE / FADER.
Push to choose and rotate to adjust.
Note: when an EQ preset is chosen the bass and treble control are
not available.
• Other Audio Settings
Settings like preset equalizer or loudness can be set by tapping the
[SETUP] in the main menu.
Day/night display mode
Tap the onscreen Sun button in the top bar to increase brightness.
Tap again to reduce brightness during night time.
Tap again to black out the screen.
Setup
Enter the setup menu by tapping the [SETUP] icon on the main menu.
Tap the items you would like to set. You can adjust audio, date and time,
language, calibration, etc.
Radio operations
Band
Tap the onscreen [BAND] button to choose FM1, FM2, FM3, AM1 or
AM2. On each band up to 6 presets can be stored.
Radio Seek Function
In Radio Mode, touch and hold the < or > button to adjust seek the
frequency automatically. Tap the button to adjust the radio frequency
manually step-by-step.
Save preset stations
There are six numbered preset buttons on the screen (P1-P6), which
can store and recall stations for each band. Tune in to the station you
want to store, touch and hold any key from P1-P6 until you hear a beep.
The station will be saved in the designated number.
After saving the stations, you can listen to short intros of each preset by
touching the [SCAN] button.

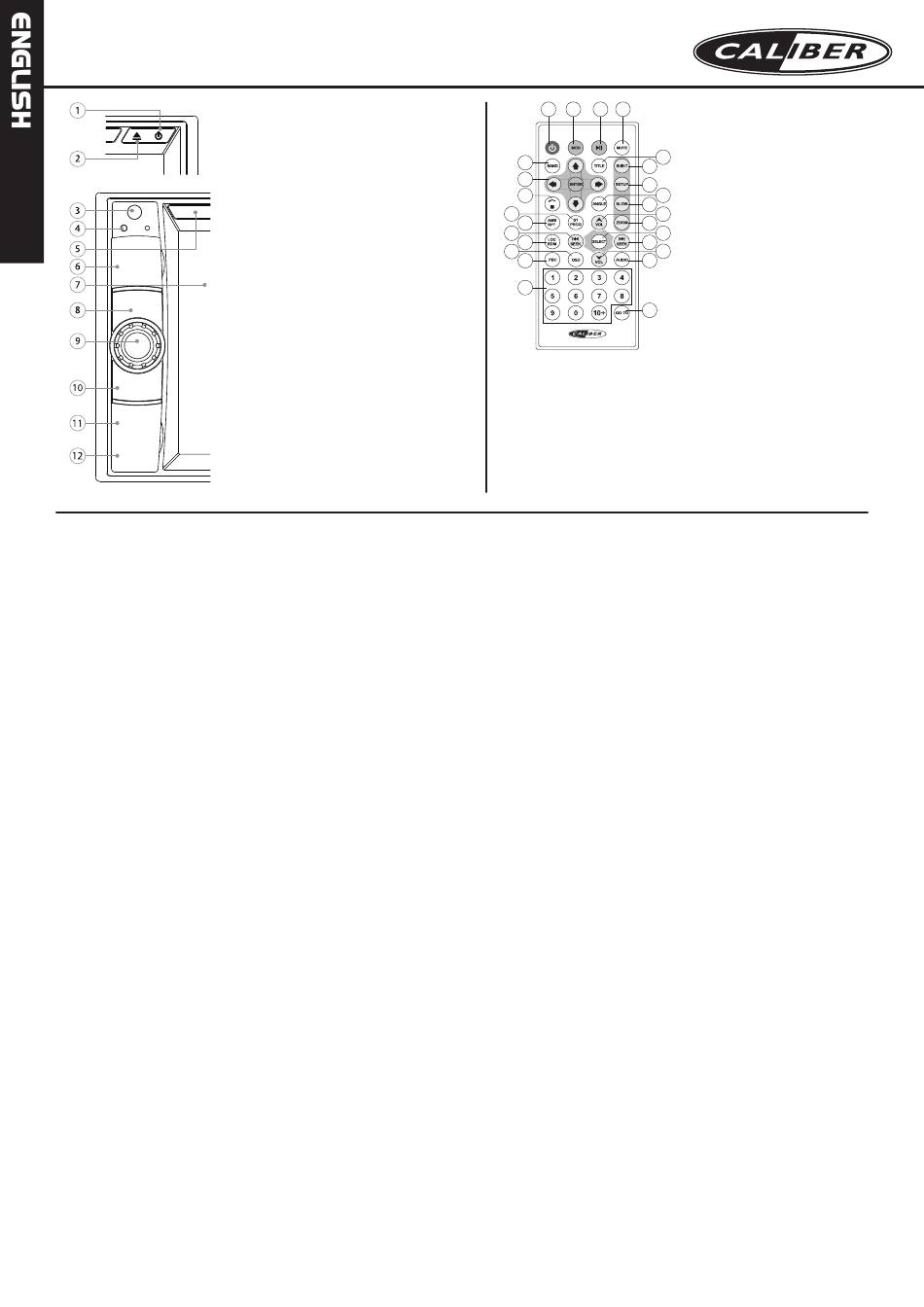

QUICKSTARTGUIDE
1. q:
Press to turn the unit ON.
When ON, press once to turn the display OFF
(During TFT off, the video out signal will be available
so that the connected monitor will show the screen of
the unit.) Press the button again to turn the display
back ON
Press and hold the button to turn the unit OFF
2. Eject:
Disc eject
3. IR sensor:
Remote control IR sensor
4. System reset:
Use a non-metal point to press the button
5. Disc slot:
6. SD / GPS:
Micro SD card reader (max. 32GB) - behind the cover
and slot with Micro SD including navi maps
7. Display:
6.5" TFT-LCD touch screen
8. Menu:
Go to main menu
9. VOL/SEL:
- Rotate for volume adjustment or adjust settings
- Push to enter the audio menu (rotate to adjust)
10. Mode / Mute
Choose between: Radio / AUX-in / Bluetooth tel.
/ AV-in / Bluetooth music (A2DP)
11. AUX:
3.5mm Jack-in - behind the cover cap
12. USB:
Standard USB port (max. 32GB) - behind the cover
1 2 3 4
5
6
7
8
9
10
11
12
13
14
1. q: power ON/OFF
2. MOD: mode select
3. 12: play/pause playback
4. MUTE: mute audio output
5. BAND: band select
(tuner)
6. Cursor buttons and
conformation button
7. 3: stop playback
4X 75 W
DVD/USB/SD/BLUETOOTH
8. ST/PROG: stereo selection / program
tracks to be played
(disc/USB/SD)
RDS
AF, TA, PTY are the RDS functions. Tap the onscreen buttons to turn
these functions ON/OFF.
Note: RDS might not be available in every country.
Bluetooth operations
Pairing
Activate Bluetooth on your mobile phone, and search for available
devices. Select "RDN802BT Caliber", password "0000".
If successful connected the Bluetooth logo stays ON, if not this logo
keeps flashing.
Dial pad
Touch the dial pad to dial the number you would like to call. Touch the
[CALL] (green) button to send the number.
Call list
Displays your phonebook and call history, if you've given permission.
A2DP
Go to the Bluetooth music mode to control playing music of your cell
phone using the onscreen controls (available if you device supports
A2DP).
Incoming calls
• Answer call: push the green horn at an incoming call
• End call: push the red horn
• Reject call: push the red horn at an incoming call
Disc/USB/SD operations
Place a the Disc/USB/SD card into the unit. The unit will start playing
the contents automatically, else go the right mode.
Audio playback
To control the audio playback, use the onscreen buttons.
DVD/Movie playback
Push the [SEL] button (9) to show the playback options
Image playback
Push the [SEL] button (9) to show the playback options
Folder/file list
To show the contents of the Disc/USB/SD, tap the 0 onscreen button to
go back till the file directory is shown. The files are divided into audio,
movies and pictures.
9. AMS/RPT: intro play stations
repeat options
(disc/USB/SD)
10. 7/ seek: previous track
(disc/USB/SD/
/ frequency seek down
BT)
11. LOC/RMD: local selection
15
shuffle play options
(disc/USB/SD)
16
12. OSD: show playback Menu
17
(disc/USB/SD)
18
13. PBC: playback control
(disc/USB/SD)
19
14. Numeric buttons
20
21
15. TITLE: shows title
(DVD only)
22
16. SUB-T: subtitle select
(DVD only)
23
17. SETUP: shows setup menu
24
25
18. ANGLE: change angle
(DVD only - if available)
19. SLOW: slow-motion playback
(DVD only)
26
20. Volume up
21. ZOOM: zoom steps
(DVD only)
22. SELECT: Audio menu
23. 8/ seek: next track
(disc/USB/SD/BT)
frequency seek up
(tuner)
24. Volume down
25. AUDIO: change audio output method
(DVD only)
26. GO TO: Track time search
(disc/USB/SD/BT)
/
(tuner)
