Caliber RDN 802BT Guide De Démarrage Rapide page 2

RDN 802BT
Radio
Antenna
(DIN)
Sub 1 OUT
Sub 2 OUT
Video 1 OUT
Video 2 OUT
Camera IN
RCA OUT F/L
RCA OUT F/R
RCA OUT R/L
RCA OUT R/R
ISO CONNECTOR:
A1. Rear right speaker(+) / Purple
A2. Rear right speaker(-) / Purple-Black
A3. Front right speaker(+) / Grey
A4. Front right speaker(-) / Grey-Black
A5. Front left speaker(+) / White
A6. Front left speaker(-) / White-Black
A7. Rear left speaker(+) / Green
A8. Rear left speaker(-) / Green-Black
B4. Battery 12V (+) / Yellow
B5. Antenna power / Blue-White
B7. ACC+ / Red
B8. Ground / Black

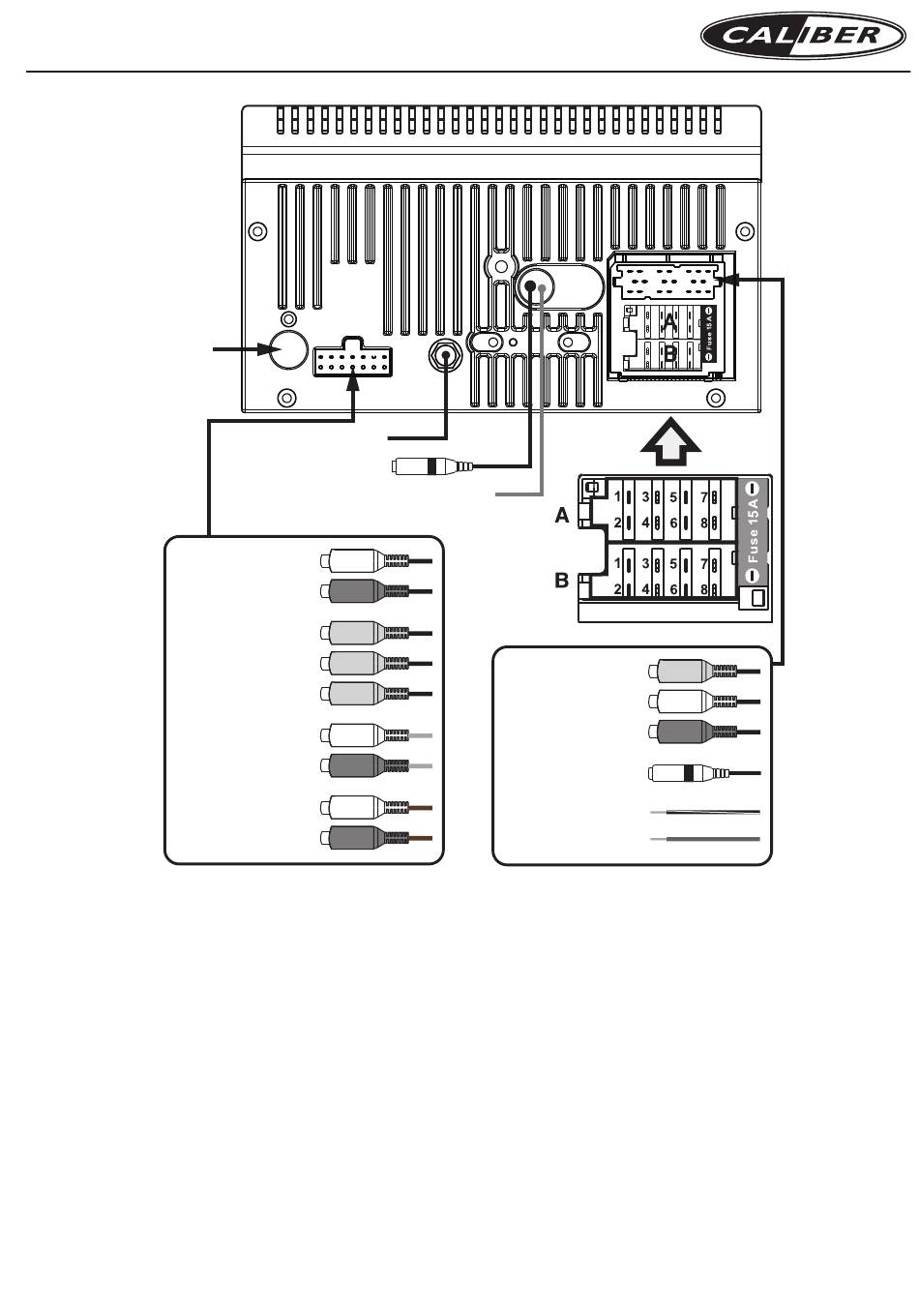

CONNECTION DIAGRAM
GPS Antenna IN
External Microphone
(black - 3.5mm jack)
Amp power
(+12V output - blue/white)
(white)
(red)
(yelow)
(yellow)
(yellow)
(white)
(red)
(white)
(red)
C
C
Video IN
(yelow)
RCA IN L
(white)
RCA IN R
(red)
SWC
(3.5mm Jack)
Reverse
(purple/white)
Parking
(green)
RCA CONNECTIONS:
Yellow RCA:
AV in: Video input
Camera back: Camera input
Video out: Video output (2x)
White RCA:
AUX in (L): Audio input - left channel
RCA out (R L): Audio output - rear/left
RCA out (F L): Audio output - front/left
Red RCA:
AUX in (R): Audio input - right channel
RCA out (R R): Audio output - rear/right
RCA out (F R): Audio output - front/right
