Specifications
Attenuation
Input Resistance
Input Capacitance
Compensation Range
System Bandwidth X100
Maximum Working Input Voltage
Cable Length
Weight
Operating Temperature
Storage Temperature
Humidity

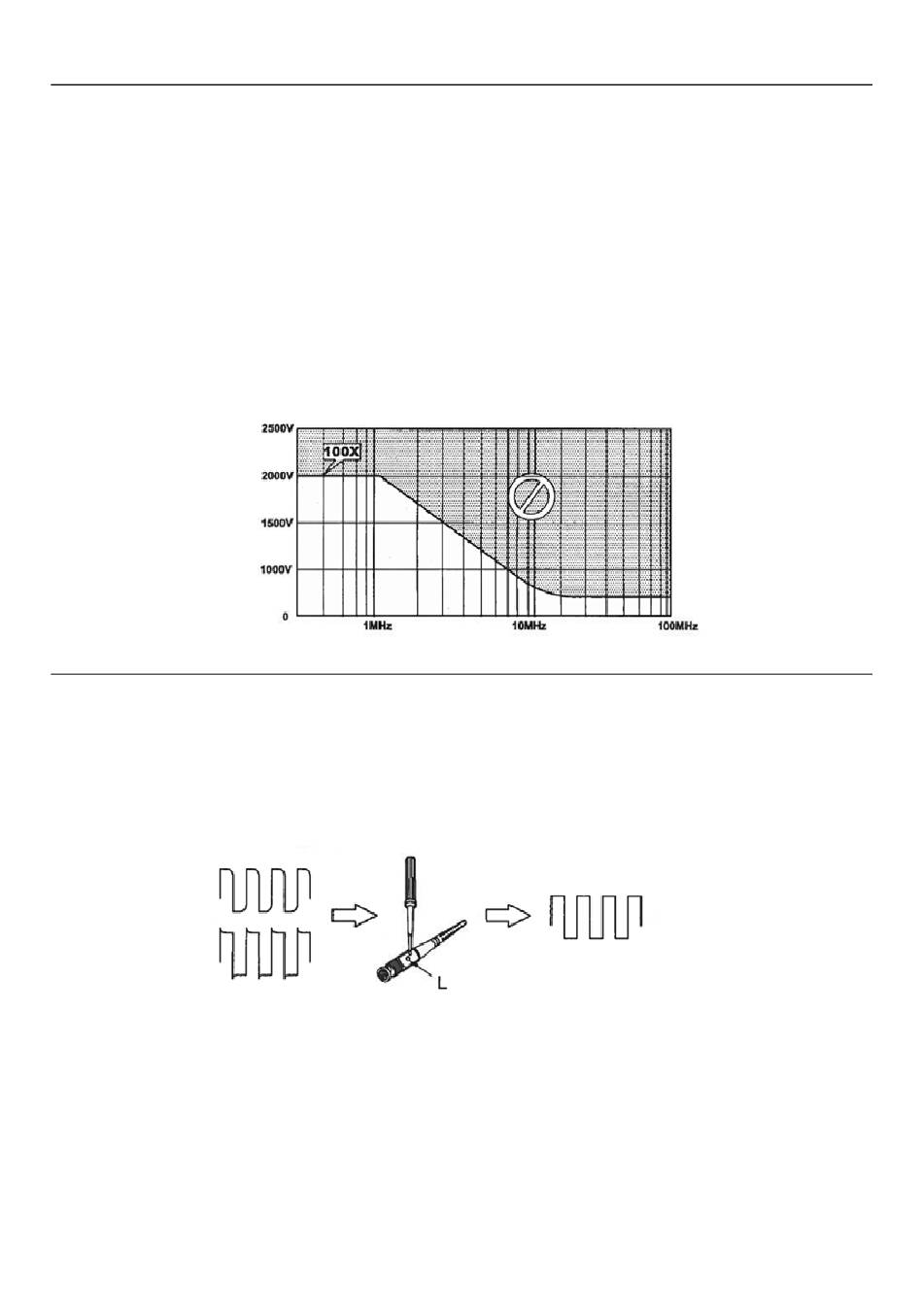

Low Frequency Probe Compensation
Before taking any measurements using the probe, first check the compensation and adjust it to match
the channel inputs. Most oscilloscopes have a square wave reference signal available at a terminal on
the front panel used to compensate the probe. Connect the probe to the signal source to display a 1
kHz test signal on the oscilloscope. Adjust the trimmer "L" until the signal displays a flat-top square
wave.
www.ponpe.com
Maximum Working Voltage De-rating Curve (VDC + Peak AC)
1:100
100MΩ
X100:14.5pF to 17.5pF
15pF to 35pF
DC to 100MHz
X100: <2000VDC + Peak AC
120 cm (47")
65 g (0.15 lbs.)
o
o
o
-10
C to 50
C (14
F to 122
o
o
o
-20
C to 75
C (-4
F to 167
<85% RH
2
o
F)
o
F)
TL625-EU-EN v1.1 07/13
