Introduction
Congratulations on your purchase of the Extech Model
CB10 Circuit Breaker Finder and Receptacle Tester. This
instrument is shipped fully tested and calibrated and, with
proper use, will provide years of reliable service.

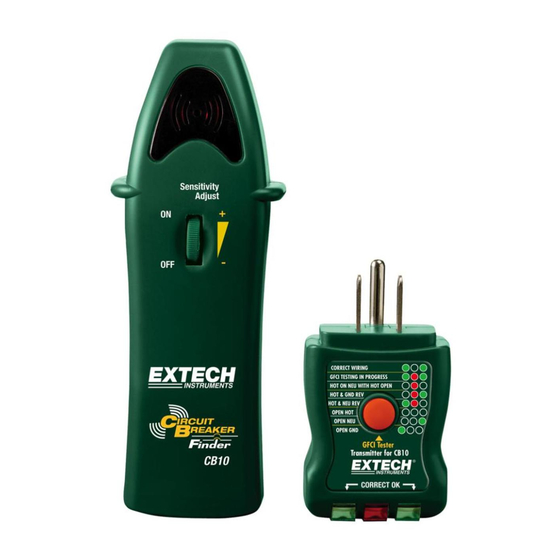

Meter Description
Receiver
1. Indicating L ED and Bee
2. ON/OFF and Sensitivity
3. Transmitter storage
Note that battery compartment is located on
rear of receiver
Transmitter
4. Receptacle LED coding scheme
5. GFCI test button
6. Receptacle LED's
Gf(]Tesler
Tra/lSMltltlforCB10
I
4
5
This symbol adjacent to another symbol,
terminal or operating device indicates that
the operator must refer to an explanation in
the Operatingilnstructions to avoid personal
injury or dam 9 ge to the meter.
NG
This WARNI
symbol indicates a
potentially ham.rdous situation, which if not
result in death or serious
avoided, coul
injury.
symbol indicates a
This
potentially ha
avoided, ma
This symbol
protected ghout by double insulation or
reinforced ins
Operating Voltage
90 to 120V
Operating Frequency
47 to 63Hz
Power supply
9V battery (receiver)
Operating Temperature
41 QF to 104QF (5QC to 402C)
Storage Temperature
_4°F to 140°F (-20°C to 60°C)
Operating Humidity
Max 80% up to 87QF (31QC)
decreasing linearly to 50% at
104QF (402C)
Storage Humidity
<80%
Operating Altitude
7000ft. (2000meters) maximum.
Weight
5.90z (167g)
Dimensions
8.5" x 2.2" x 1.5" (215 x 56 x
38mm)
Approvals
UL CE
UL Listed The UL mark does not indicate that
this product has been evaluated
for the accuracy of its readings.
