Disconnect battery pack from tool before making any assembly, adjustments
or changing accessories. Such preventive safety measures reduce the risk of
starting the tool accidentally.
Fig. 1
10
11
12
13
2610045267 A5.indd 7

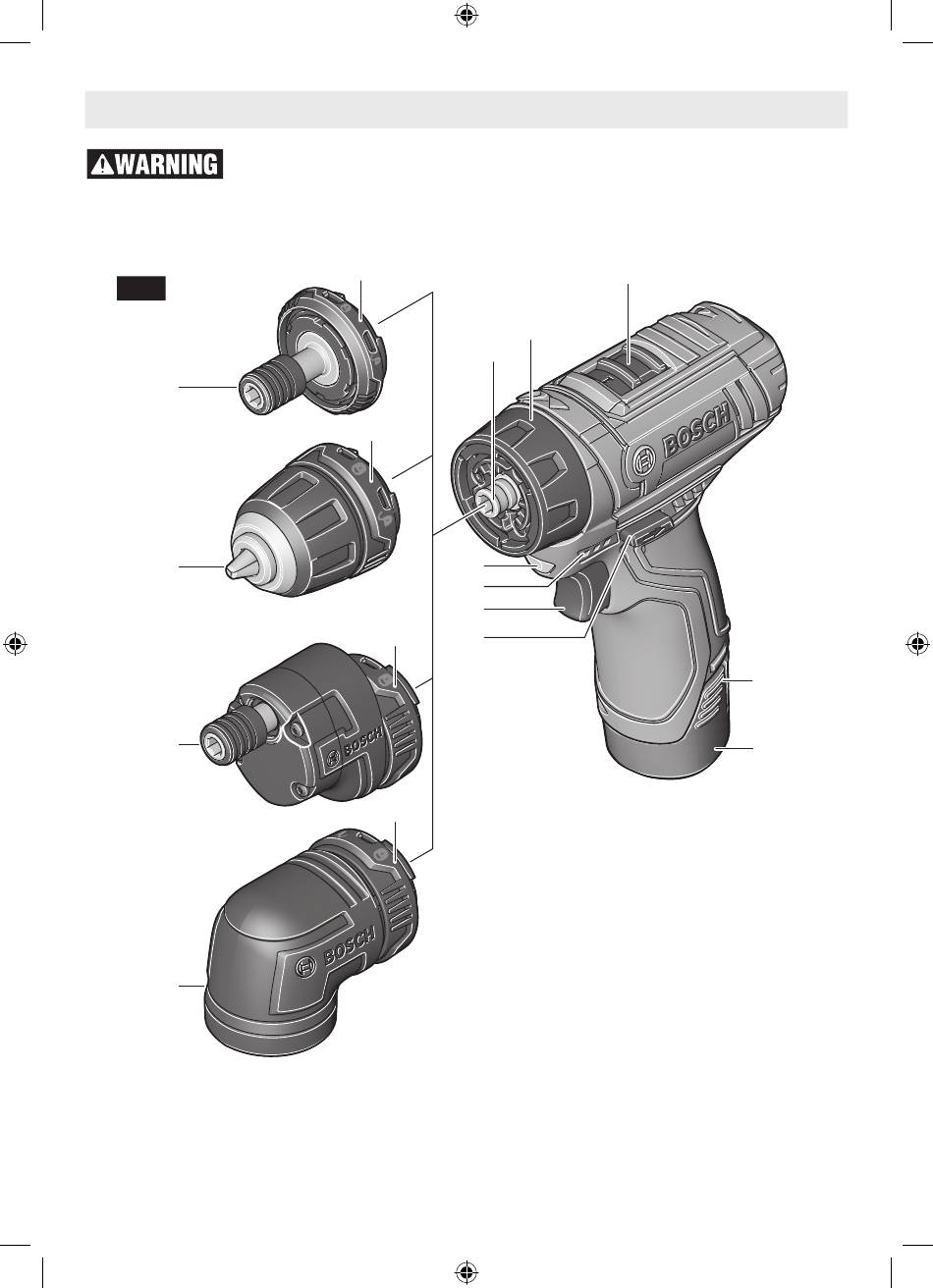

Functional Description
Cordless Drill/Driver
14
1
14
9
8
7
14
6
14
1 Hex Drive
2 Adjustable clutch
3 Gear shifter
4 Battery release tabs
5 Battery pack
6 Forward/reversing lever and trigger lock
7 Variable speed trigger switch
8 Battery charge status indicator lights
9 Built in work light
10 Bit holder adapter
11 Drill chuck adapter
12 Offset adapter
13 Right angle adapter
14 Lock ring
3
2
4
5
7
