tHanK YOu FOr CHOOsInG JBL

®
For more than 70 years, JBL has been providing audio equipment for concert halls, recording studios and movie
theaters around the world and has become the trusted choice of leading recording artists and sound engineers.The
4309 is a new small-size bookshelf/monitor of the JBL Studio Monitor family designed for home use. To get the best
performance from your new loudspeakers, please read these instructions thoroughly.

PaCKaGe COntents

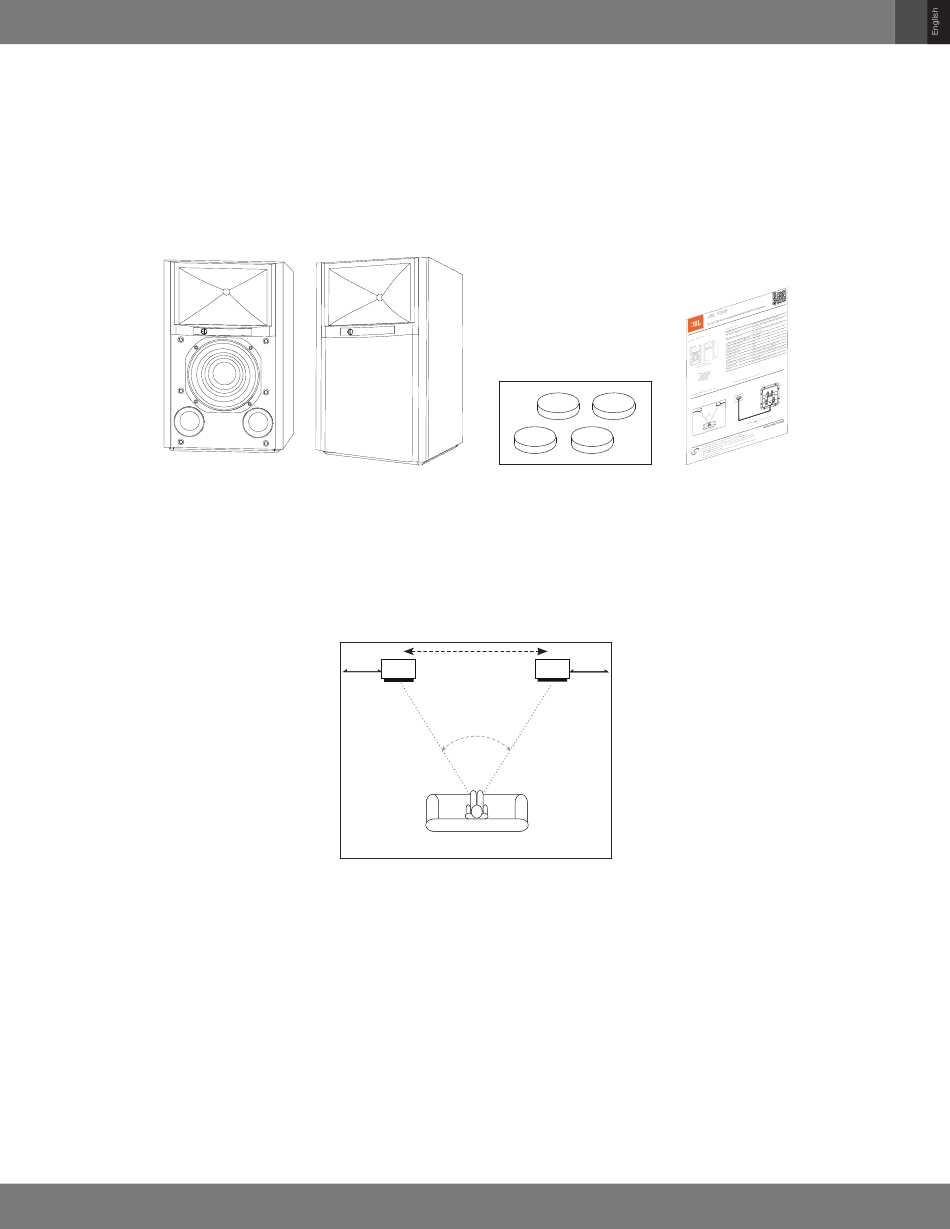

EACH JBL 4309 BOX CONTAINS:
2 x Loudspeakers 2 x 4 Feet Pads 1x Quick Start Guide
2 x Grilles (Pre-Installed)
If you suspect that there has been shipping damage, report it immediately to your dealer. We recommend that you
keep the box and packing materials for future use.

PLaCeMent anD POsItIOnInG

Before deciding where to place your speakers, survey your room and think about placement, using the illustration
below as a guide.
6-8 feet
1.8-2.4 m
>50 cm
>50 cm
(20 in) (20 in)
40°-60°
Listening Position
Avoid placing the speakers near power amplifiers, heat registers or other objects that generate large amounts of heat.
Do not place the speakers in very humid or dusty places.
Do not place the speakers in direct sunlight or where they will be exposed to other strong light.
For best results, place the speakers 6–8 feet (1.8-2.4m) apart. If you place the speakers farther apart than this, angle
them toward the listening position.
The speakers will produce the most accurate stereo soundstage when the angle at the listener between the speakers
is from 40 and 60 degrees.
Position each speaker so that its horn center is pointed approximatelyat ear level.
Generally, bass output will increase as the speaker is moved closer to a wall or corner. For best performance, we
recommend that you place the speakers at least 20 inches (50cm) away from the side walls.
