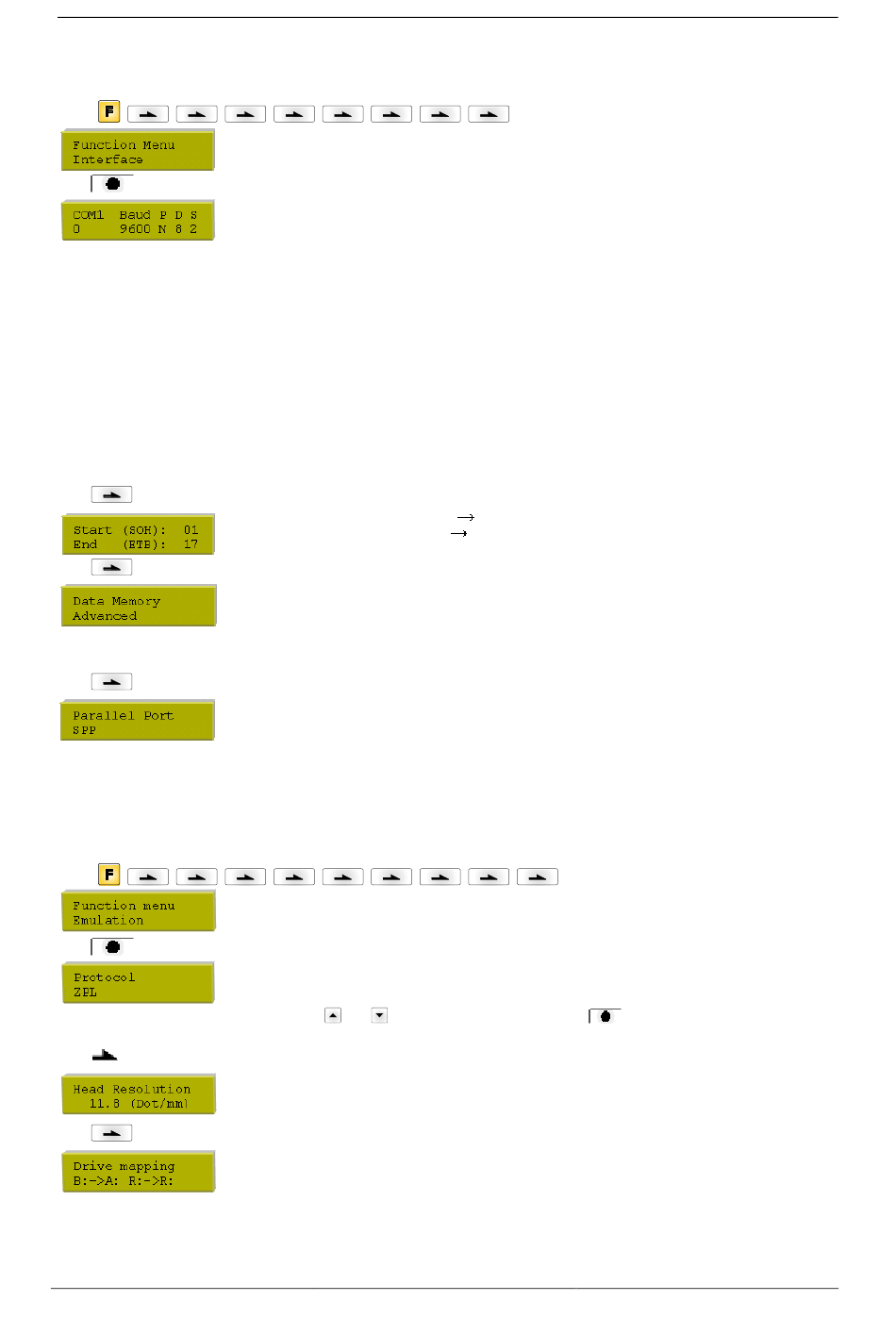

Interface

Keys: , , ,
Key:
Key:
Key:
Key:

Emulation

Keys: , , ,
Key:
Key:
Key:
, , , ,
COM1:
0 - serial interface Off.
1 - serial interface On.
2 - serial Interface On, no error message occurs in case of a transmission error.
Baud rate:
Indication of bits which are transferred per second.
Following values are possible: 1200, 2400, 4800, 9600 and 19200.
P = Parity:
N - No parity
E - Even
O - Odd
Please observe that the settings correspond to those of the direct print module.
D = Data bits:
Setting of data bits.
Value range: 7 or 8 Bits.
S = Stop bits:
Indication of stop bits between bytes.
Value range: 1 or 2 stop bits.
SOH: Start of data transfer block
ETB: End of data transfer block
Data memory:
Standard: After starting a print order the direct print module buffer receives data as long as it
is filled.
Advanced: During a current print order data is received and processed.
Off: After starting a print order no more data is received.
Parallel port:
SPP - Standard Parallel Port
ECP - Extended Capabilities Port (enables a fast data transmission but it is only to set at PCs
of newer version).
Observe that the settings correspond to those of the PC.
, , , ,
Protocol:
CVPL: Carl Valentin Programming Language
®
ZPL: Zebra Programming Language
Press keys and to select the protocol. Press key
printer is restarted and ZPL II
Printhead resolution:
®
At activated ZPL II emulation the printhead resolution of the emulated printer must be set.
Drive mapping:
®
The access to Zebra drives is rerouted to the corresponding Valentin drives.
English
,
Hex format 01
Hex formal 17
, ,
®
commands are transformed internally into CVPL commands.
DPM III xi
to confirm the selection. The
