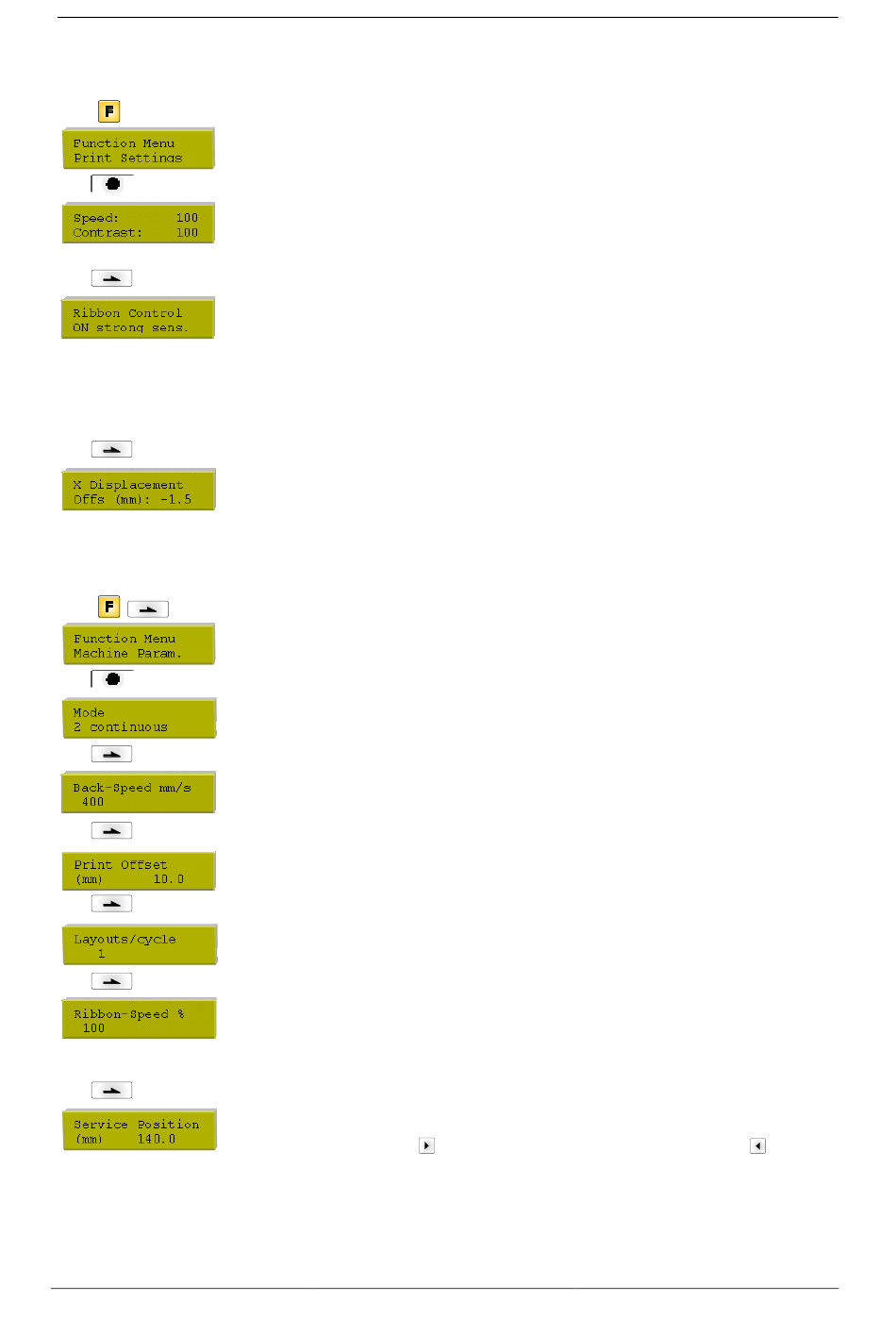

Print Settings

Keys:
Key:
Key:
Key:

Machine Parameters

Keys: ,
Key:
Key:
Key:
Key:
Key:
Key:
Speed:
Value range: 50 mm/s ... 450 mm/s.
Contrast:
Value range: 10 % ... 200 %.
Ribbon control:
Examination if the transfer ribbon roll is to end or if the ribbon was torn at the unwinding roll.
Off: The ribbon control is deselected, i.e. the printer continues without an error message.
On, weak sensibility: The current print order is interrupted and an error message appears at
the display of the printing system. The printing system reacts at approx. 1/3 more slowly to the
end of the transfer ribbon (default).
On, strong sensibility: The current print order is interrupted and an error message appears at
the display of the printing system. The printing system reacts immediately to the end of the
transfer ribbon.
X displacement:
Indication of displacement in X direction. The fields on the layout are moved.
Value range: −90.0 ... +90.0.
Mode:
Selection of operating mode.
Back-Speed:
Indication of back speed of the print mechanics after print end in mm/s.
Value range: 50 ... 500 mm/s.
Print Offset:
Distance of the layout to the zero point of machine.
Value range: 1 ... 999 mm
Layouts/cycle:
Indication of number of printed layouts per print start (cycle).
Value range: 1 ... 25 layouts per cycle.
Ribbon speed:
Indication of ribbon speed in %.
The transfer ribbon speed can bea adjusted relative to the print speed. Because of a less
speed of the ribbon you can reduce the consumption of ribbon.
Value range: 50 % ... 100 %.
Service position:
Indication of position in 1/10 mm steps in which the print unit can be moved in times of service.
In the main menu click key
the print unit again to zero point of machine.
English
to move the print unit in service position. Press key
DPM III xi
to move
