GB
Assembly instructions
for drawbar Models R4, Ausf. A1, A3, A4, Models K4, Ausf. A1, A2

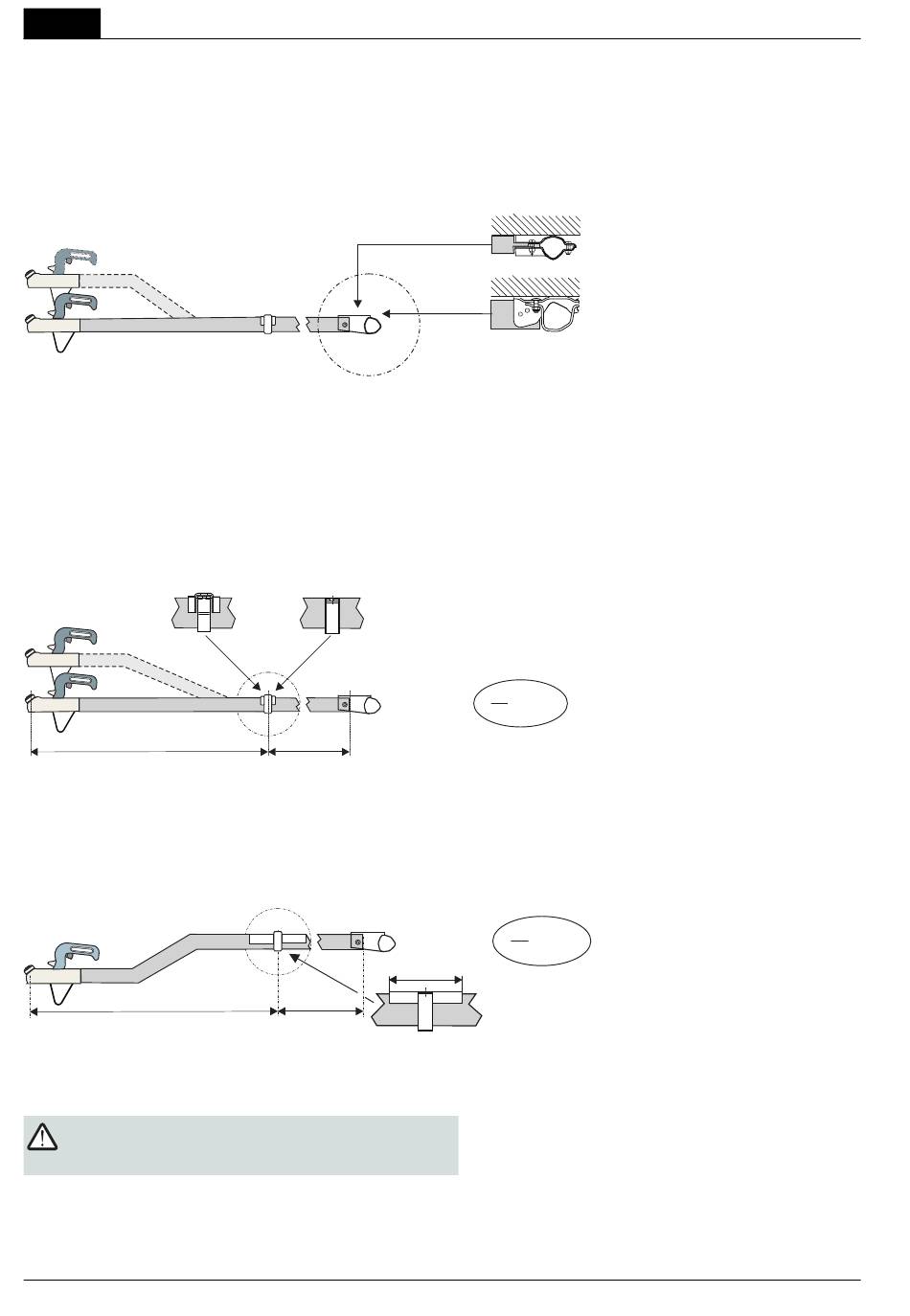

Bolting the drawbar to the axle and clamp connection
„ Drawbar connection profile (a)
Fit the clamping bracket with four M12 hexagon bolts.
„ Drawbar connection profile (b)
Fit the drawbar using an M12 hexagon bolt.
Bolting the drawbar to the trestle and clamping bracket Model R4, Ausf. A1, A3, A4, Model K4, Ausf. A1, A2
L1
„ Attach the clamping bracket to the frame (front edge of the assembly) using two M12 bolts
Assembly procedure is the same for trestle a and b.
Optional: Model K4, Ausf. A2
max. zul. L1 = 1040
Caution!
Observe the length ratio (L1 : L 2 < 2,5) .
4
a
b
L2
L2
a
b
L1
< 2,5
L2
L1
< 2,5
L2
200
Translation of original user instructions
Drawbar
