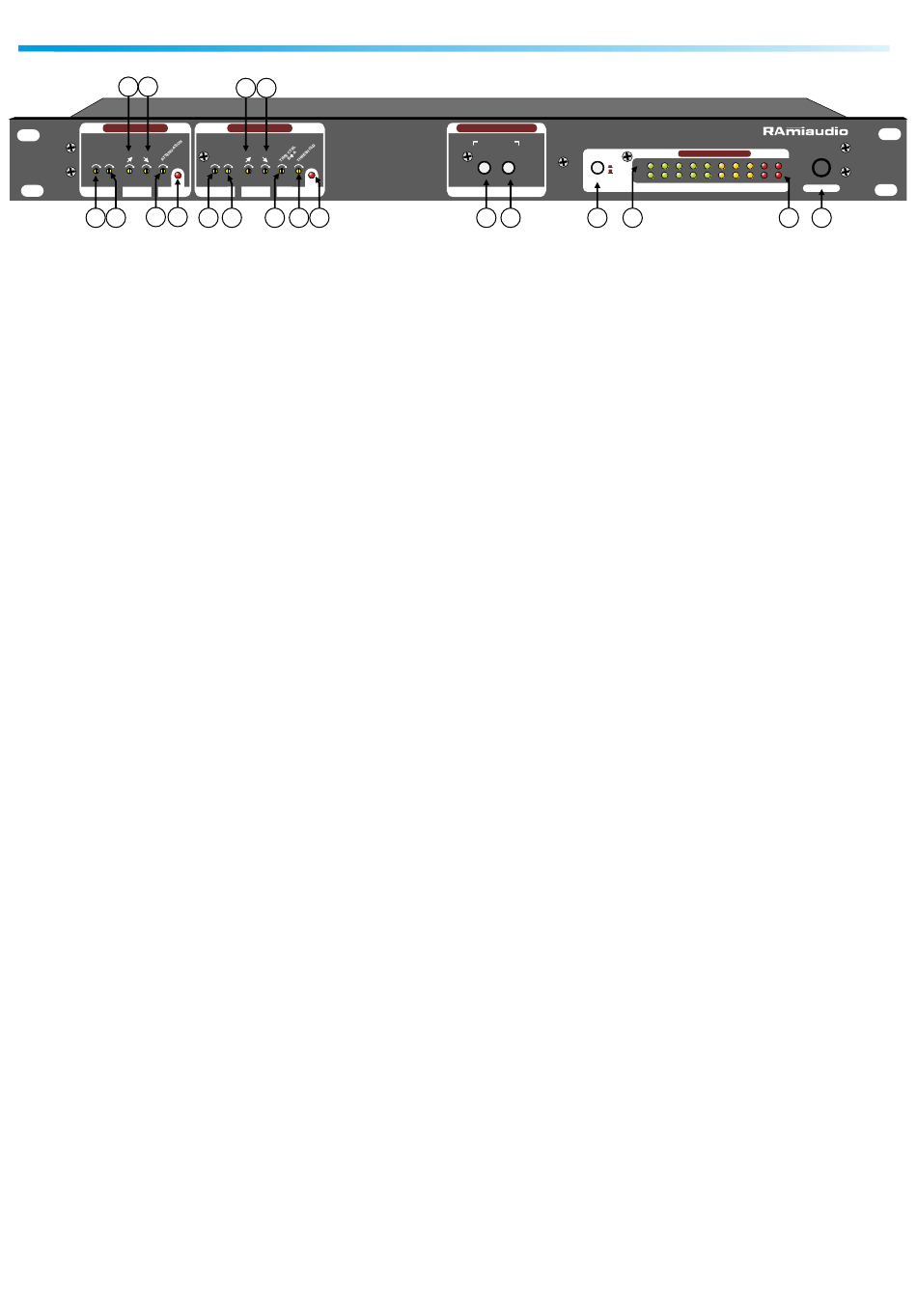

FRONT PANEL
3
4
CHANNEL A
L
R
+
+
+
+
+
SENS
VCA
ON
5
6
1 2
CHANNEL A:
The ChannelA is attributed to the general modulation. (Satellite channel, output deck, automatic
external musical program).
1 - Multi-turn cermet potentiometer for sensitivity calibration on left level of A channel
Variable from + 12 dBu to - 10 dBu. The sensitivity ( gain of input level ) increases clockwise.
2 - Multi-turn cermet potentiometer for sensitivity calibration on right level of A channel
Variable from + 12 dBu to - 10 dBu. The sensitivity ( gain of input level ) increases clockwise.
3 - Multi-turn cermet potentiometer for VCA rising time calibration of A channel ( fade in time from
0 to 100% of the audio modulation ). Variable from 0 to 4 seconds. The time increases
clockwise.
4 - Multi-turn cermet potentiometer for VCA falling time calibration of A channel ( fade out time
from 0 to 100% of the audio modulation ). Variable from 0 to 4 seconds. The time increases
clockwise.
5 - Multi-turn cermet potentiometer to reduce A channel when this one is closed ( B channel open ).
Adjustable from 4 dB to 96 dB. The reduction increases clockwise
6 - Warning light indicating that A channel is open ( audio proceeding ).
Note: the VCA is an electronic component with the gain determined by a continuous voltage.
(Voltage Controlled Amplifier)
CHANNEL B
The channelB is attributed to the replacement modulation. ( Advertisement, jingle, identification,
priority message ).
7 - Multi-turn cermet potentiometer for the sensitivity calibration on left level of B channel
Variable from + 12 dBu to - 10 dBu. The sensitivity ( gain of input level ) increases clockwise.
8 - Multi-turn cermet potentiometer for the sensitivity calibration on right level of B channel
Variable from + 12 dBu to - 10 dBu. The sensitivity ( gain of input level ) increases clockwise.
9 - Multi-turn cermet potentiometer for VCA rising time calibration of B channel ( fade in time from
0 to 100% of the audio modulation ). Variable from 0 to 4 seconds. The time increases
clockwise.
10-Multi-turn cermet potentiometer for VCA falling time calibration of B channel ( fade out time
from 0 to 100% of the audio modulation ). Variable from 0 to 4 seconds. The time increases
clockwise.
RAMI
9
10
CHANNEL B
L
R
+
+
+
+
+
+
SENS
VCA
ON
7 8
11 12 13
CUE INPUTS / OUTPUT
CHANNEL
A
B
PPM
RMS
MODE VU
OUTPUT: ALL RELEASE
14 15
16
17
16
2 Channel Audio Fader
IN / OUT CONTROL
-dB
+dB
L
R
-12
-9
-6
-3
O
+3
+6
+9
+12 +15
PHONES
18
19
AUF200S
