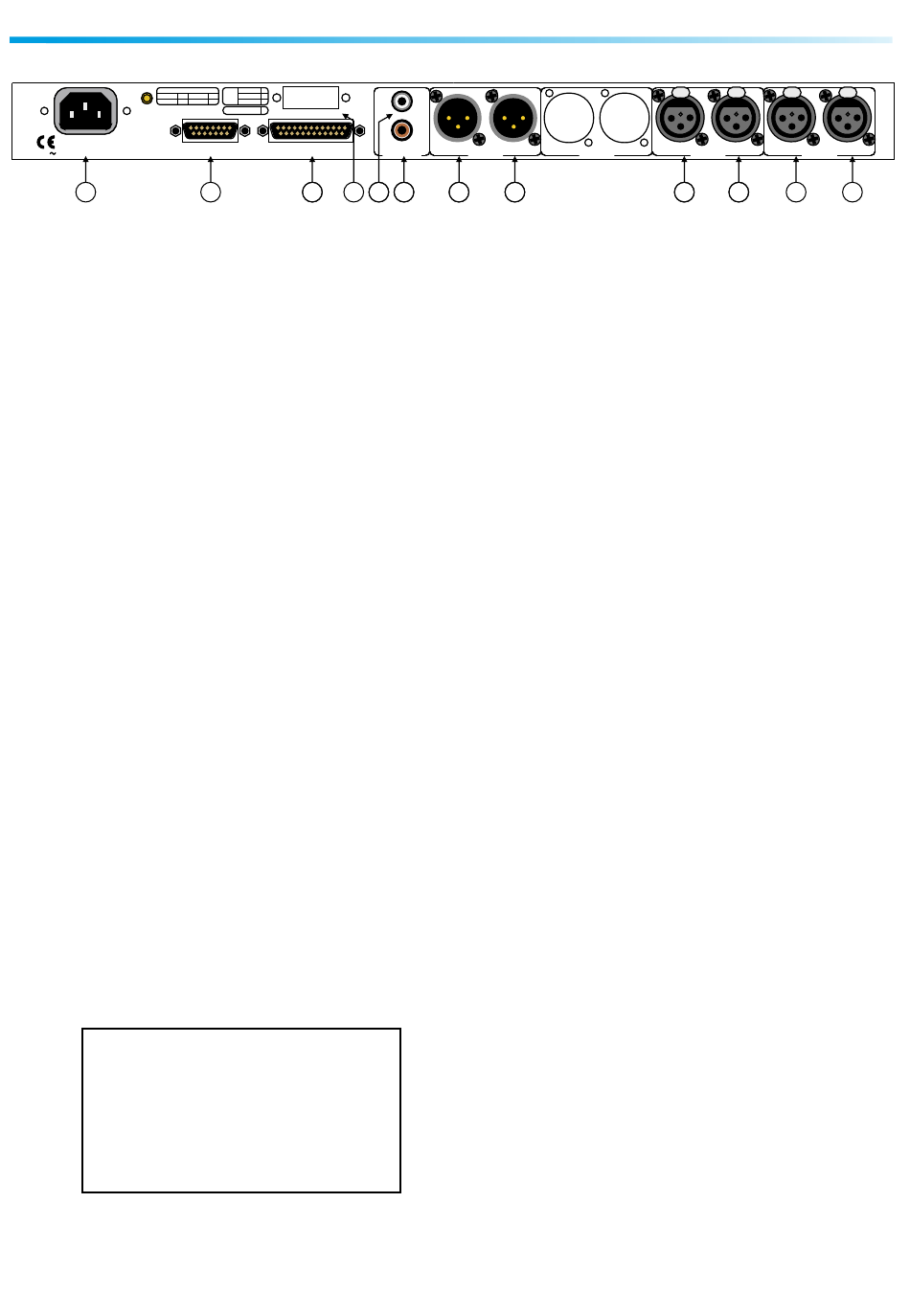

REAR PANEL

TRANSFORMER
IN A
IN B
Made in France (Fr)
230V 50/60Hz 12W T 250mA L REMOTE RELAY OUTPUT
L
A - 3 pin female balanced input XLR for left channel A
(Level included from - 10 dBu to + 12 dBu
B - 3 pin female balanced input XLR for right channel A
(Level included from - 10 dBu to + 12 dBu
C - 3 pin female balanced input XLR for left channel B
(Level included from - 10 dBu to + 12 dBu
D - 3 pin female balanced input XLR for right channel B
(Level included from - 10 dBu to + 12 dBu
E - 3 pin male balanced XLR for left main output
(Nominal level at +6dBu ; for other levels, contact us)
F - 3 pin male balanced XLR for right main output
(Nominal level at +6dBu ; for other levels, contact us )
G - Balanced output RCA connector for left monitoring (same modulation as the bargraph and
the headphones)
Nominal Level 0dBu
H - Balanced output RCA connector for right monitoring (same modulation as the bargraph and
the headphones)
Nominal Level 0dBu
I - Option.
XLR Input / Output Wiring
1 : Ground
2 : Hot signal
3 : Cold signal
RAMI
0dBu
0Vu
IN C +4dBu
REF
OUT +6dBu
BYPASS
OPTION
REMOTE CONTROL INPUT
K J I
RIGHT LEFT
MONITOR OUTPUT
H G F E
18
PUSH
RIGHT LEFT RIGHT LEFT
INPUT C INPUT B
D
Clipping at + 26 dBu)
Clipping at + 26 dBu)
Clipping at + 26 dBu)
Clipping at + 26 dBu)
PUSH PUSH PUSH
RIGHT LEFT
INPUT A
C B A
AUF200S
