1.8 m (4') cable extensions are available, for Connector A imager only, to increase the length of
your cable up to 9 m (35') in length. To install an extension, first remove the imager cable from
the handheld device by loosening the knurled nut. Connect the extension(s) to the handheld
device as described above (Figure 2). The keyed end of the imager connects to the slotted end of
the extension.
3.4

To Install Module ROLOC PLUS

Figure 4 shows the procedure for installing the ROSCOPE 1000/i2000 handheld unit to the moun-
ting cradle on the Module ROLOC PLUS (line detector).

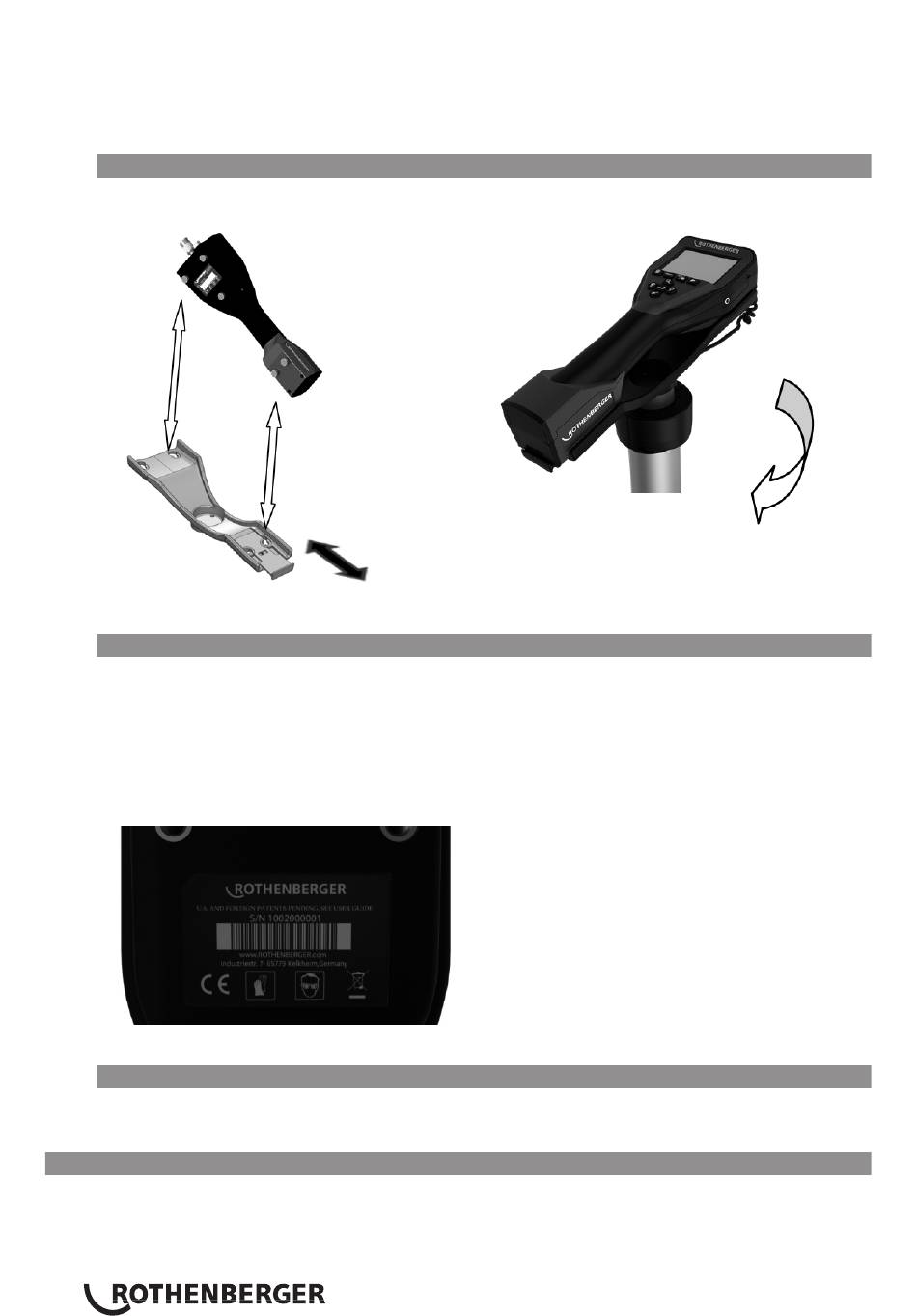

Figure 4 – Installing ROSCOPE 1000/i2000 handheld unit to the mounting cradle
3.5

Werkzeugkontrolle

1. Keep connectors clean.
2. Inspect Battery for signs of wear or damage.
3. Inspect Battery Charger for signs of wear or damage.
4. Clean any foreign contaminants (grease, dirt, oil or sewage) from the device. Imager glass
must be free of any debris to ensure optimal performance.
5. Be aware of all warnings on label as shown in Figure 5.
Figure 5 – Warning Label
3.6

Tool and Work Area Set-Up

• Check work area for proper lighting,
• Flammable liquids, vapors or dust are not present in the work area.
4.

Operating Instructions

• Read the entire manual.
• Charge battery and install.
• Battery should be removed during storage to promote battery life.
18
Rotate Handheld unit into position when
removing from case, and back to original
position to store back in case.
ENGLISH
