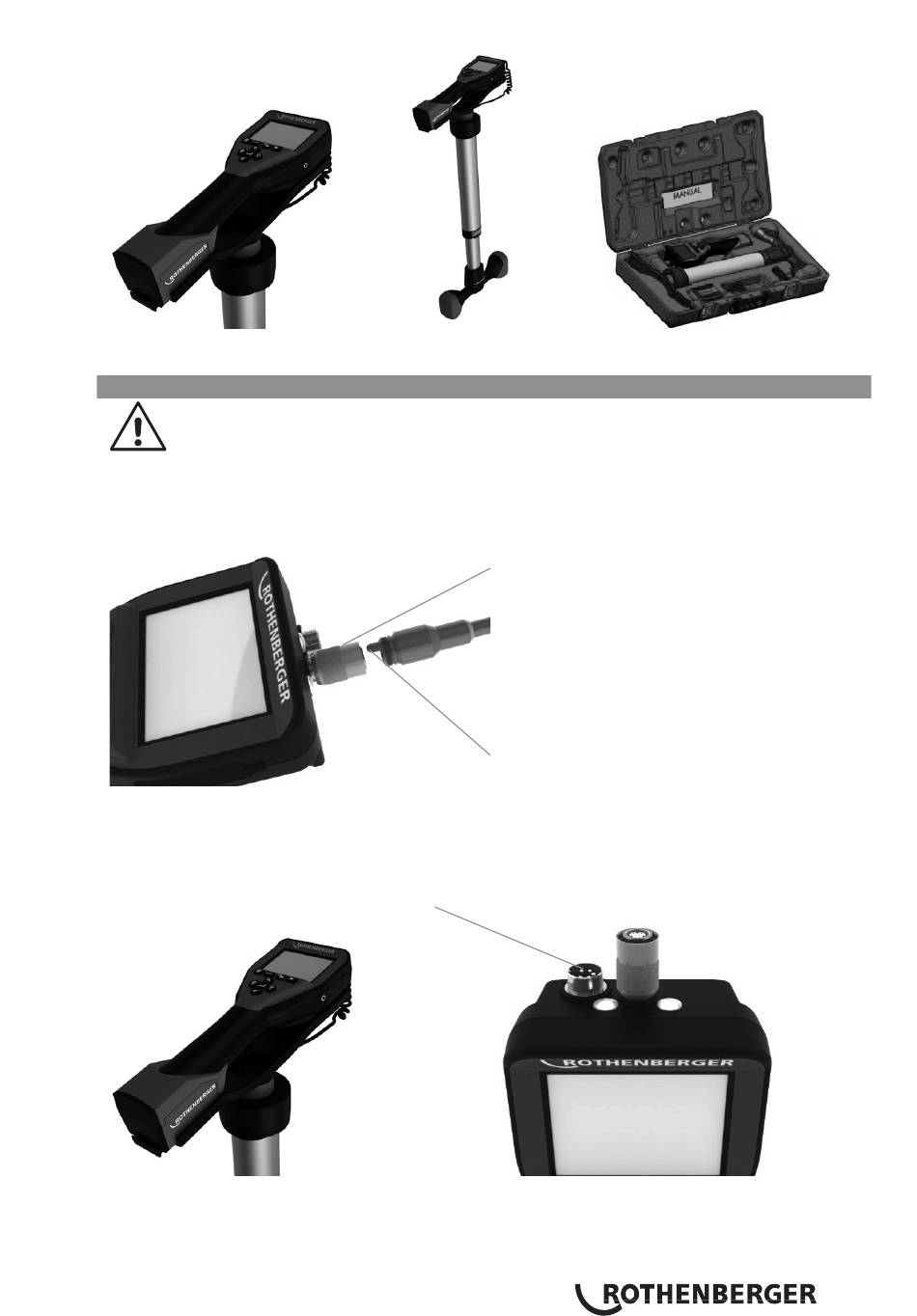

Figure 1 – ROLOC PLUS (No. 1500000057) System Components
3.3

Installing ROSCOPE 1000/i2000 Imager / Module ROLOC PLUS

Only one device should be connected to the unit at a time. Always make sure the unit is
off when installing or removing imagers or other accessories.
To use the ROSCOPE 1000/i2000 inspection device, the 17mm imager or the Module ROLOC
PLUS must be connected to the handheld device. To secure connector to the handheld device,
make sure the key and slot (Figure 2 and 3) are properly aligned. Once they are aligned, hand-
tighten the knurled nut to hold the connection in place.
Figure 2 - Cable Connections (Connector Style A, Black Color)
NOTE: Connector is the same for either ROSCOPE 1000/i2000 imager (or) Module ROLOC PLUS.
Figure 3 – Cable Connections (Connector Style B, Silver Color)
NOTE: Connector Style B is used to attach previous versions of the ROSCOPE Imager Cable.
Slot
Key
Slot for Connector Style B
