2.10. Sauna heater safety clearances
Corner and wall installations: The OLET 31 sensor is installed 40 mm from the ceiling on the centre line of the heater on a
wall. Alternatively, the sensor can be installed on the ceiling above the centre of the heater – see 'middle installation' for instruc-
tions. The heater must be secured to the floor or the sauna bench structure in order to keep the safety distances the same.
OLET 31
A
60
Wall support
Heater mounting point to
wall or sauna bench
This is an accessory
0043272
Middle installation: If the sauna heater is installed further
than 60 mm off a wall or a corner, the installation method is
always middle installation. The heater must be attached to
the benches or to a similar structure using a wall support.
The OLET 31 sensor is always installed on the ceiling.
OLET 31
A
60

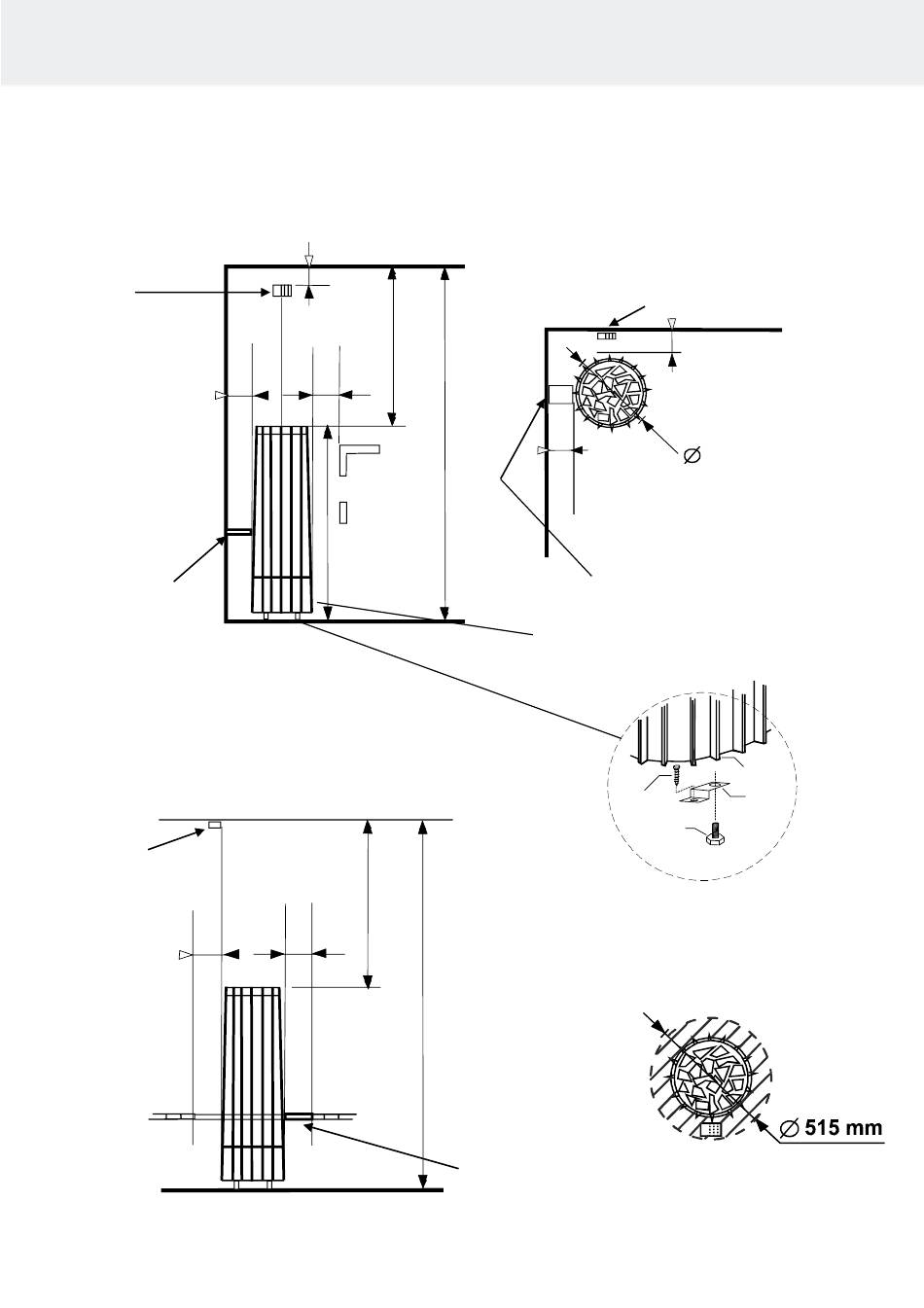

Figure 2 Safety clearances
40 *)
mm
F
D
770
60
H
1900
1130
mm
F
770
A
60
H
1900
*)
Absolute measurement! (must not be exceeded
60
Wall support
Heater mounting point to
wall or sauna bench
This is an accessory
Safety clearances between the bottom of
the sauna heater and a wall.
Floor fastener
Adjustable leg
Fixing the sauna heater
on the floor. NOTE fixing
of two (2) legs
Wall support Heater
mounting point to wall
or sauna bench
This is an accessory
or undershot)
OLET 31
*)
60
425 mm
mm
Hearters leg
Metal fastener
OLET 31 sensor position in a
ceiling installation above the
heater within the 515 mm
diameter.
