Design and function

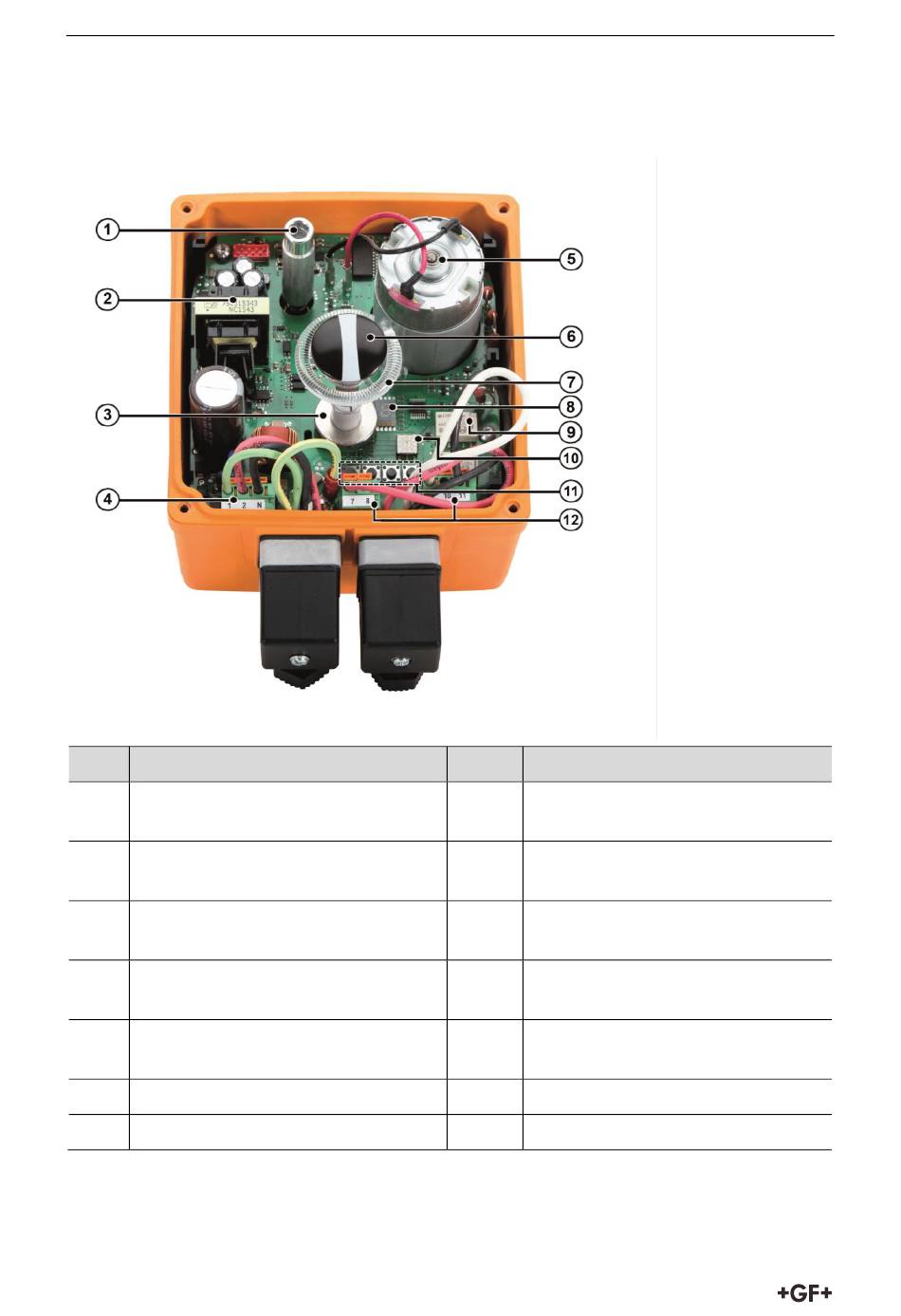

5 Design and function
5.1

Design

Item Name
1 Shaft for emergency manual
override hand crank
2 Power supply with cover (100 – 230 V
version shown)
3 Digital position detection
4 Control power for OPEN/CLOSE
5 DC motor
6 Optical position indicator
7 Light tube for LED status feedback
38
Item Name
8 7 segment error display
9 Relays for position feedback
OPEN/CLOSE
10 Heating element (temperature
threshold control)
11 Buttons for end position
adjustment
12 Terminal block to connect position
feedback"
