Cube
A
TV
B
CD OUT
CD OUT
SERIAL NO . .
External Source
Only use the AC adaptor that was originally
supplied with your rCube. Other adaptors
may damage the rCube.

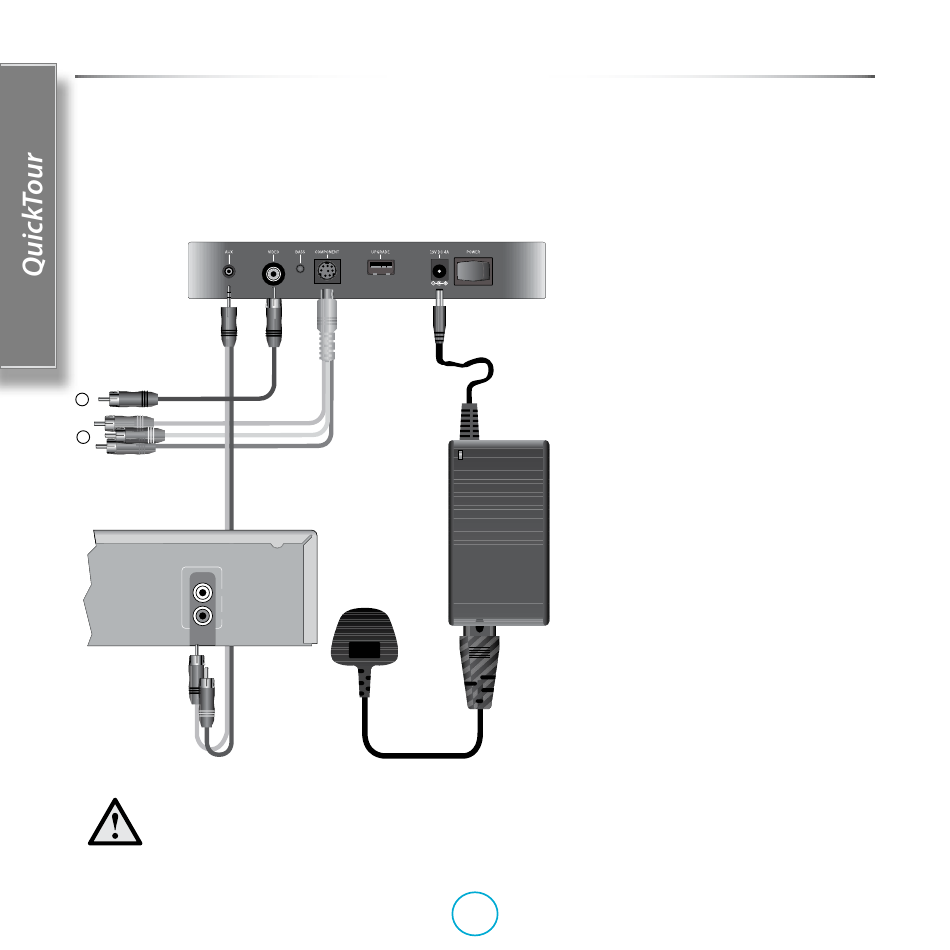

Connections Overview

L L
R R
Power
Power
Your rCube can be powered from the mains
or from the integral rechargeable battery.
Connect the power supply to power the unit
from the mains and/or to charge the battery.
O I
Connecting to external sources
There are two types of sources that can be
connected to the rCube's AUX-in input: line-
level analogue (e.g. from a hi-fi CD player
or a TV) and headphone jack analogue (e.g.
MP3 player). For more details on a specific
connection please see the 'Playing from a
... ' in the Table of Contents to locate your
scenario.
Connecting to a TV (iPod video playback)
Video-enabled iPods can be connected to
a television with either composite video
A or component video B connectors
(see figure). To connect to a display with
component video (3 wires) use the optional
break out cable. For a list of currently
compatible iPod products that output video
see http://support.apple.com/kb/HT1454.
Please note that Apple devices do not output
any menu graphics or any application
graphics to a connected display — the video
out is used only for playback of video files.
E-8
