Playing From A Headphone Jack - Arcam rCube Mode D'emploi

1
Connect the headphone jack to AUX-in
Almost all audio equipment has a headphone
jack. This is an easy way to connect to the
rCube. Early iPods, other MP3 players, TVs
and laptops can be connected this way via a
double-ended 3.5mm mini-stereo cable. Usually
headphone outputs produce a higher maximum
voltage than line level outputs so set the source
to 75% volume.
2
Power up
Plug the power supply into the AC mains wall
supply and the DC power input jack on the
rear panel of the rCube. Switch on the rCube
by pressing power switch on the rear panel, and
press the standby button on the top panel or on
the remote. The blue power LED should light.
3
Select AUX-in as the source
Press the 'Source Select' button on the remote
control or press the source button on the top panel until the source LED
turns red. Red indicates AUX is chosen as the source.
4
Make sure the external source is playing
Use the controls on the source device to start playback. Remember to set
the volume to 75% on the headphone source device, signals that are too
high can produce distortion. You can verify the device is playing properly
by using a pair of headphones.
5
Adjust volume
Use the + and - volume buttons on the remote or on the top panel to
adjust the volume to desired level.

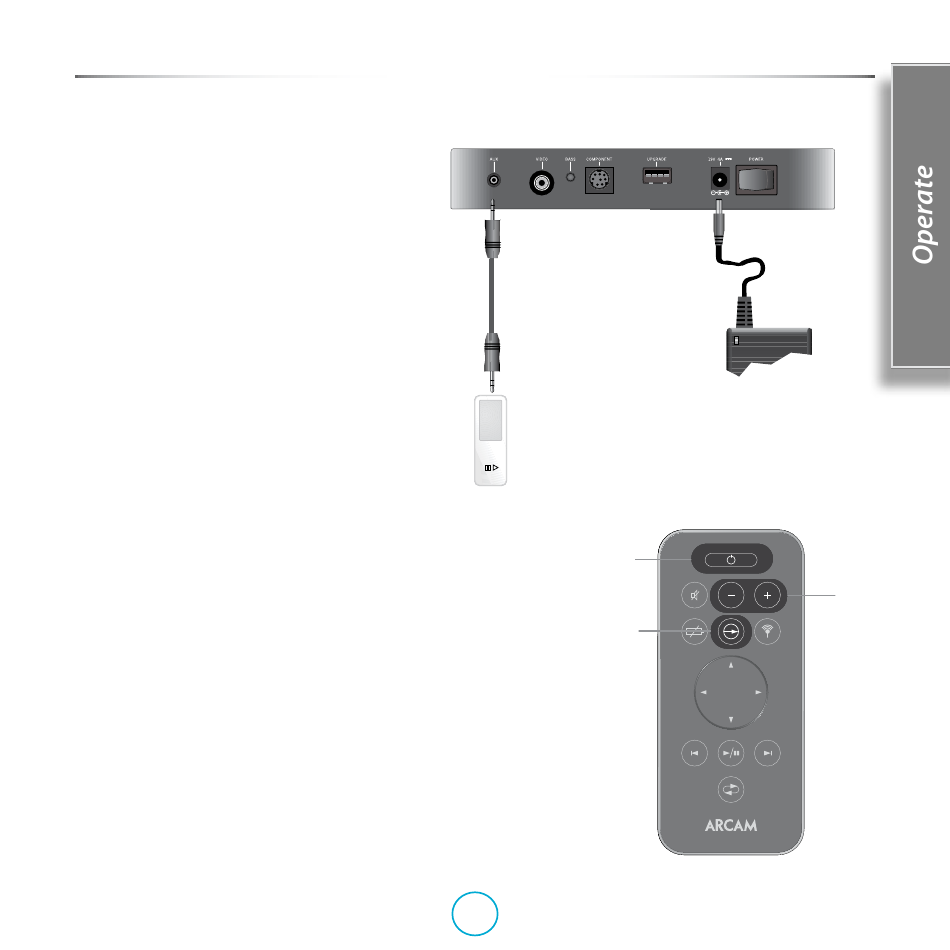

Playing from a Headphone Jack

1
1
Headphone
Source
