Pump With Tote Mount; Drum Mount Option - FILL-RITE DEF Mode D'emploi

The Tote Mount package includes a DEF pump, digital meter, hoses, nozzle, mounting
platform, and hose support retractor. The Tote Mount is designed to fit snuggly against the
top framework of most tote tanks, and latches into position using two locking pins that connect
to the tote tank framework (figure 3).
Once installed, use the hand knob at the rear of the mount platform to tighten the mount firmly
against the tote rails (assembly instructions are included
with the Tote Mount Kit).

Drum Mount Option

Fill-Rite offers an optional Drum Mount package that works
in conjunction with the Tote Mount to provide pumping
ability from barrels and drums. This package provides a
stable, secure platform for the Tote Mount, positioning it
over the container for convenience and efficiency (figure
4).
The Tote Mount fits on top of the Drum Mount, securing to
the framework as it does a tote tank. Latch it securely into
place with the latching pins (as in figure 3 above), and use
the knob at the rear (item A) to tighten the platform to the
Drum Mount.
The Drum Mount features a base plate that will accept up
to a 55 gallon drum in the base, allowing it to move freely
with the entire unit. Lift the lock bar (item B) off the
positioning posts and slide the drum into position. Reinstall
the bar. Connect the suction side hose (not included) to
the drum adapter (not included). Be certain the connection
is sealed to insure proper draw of fluid and to maintain the
integrity of the DEF.

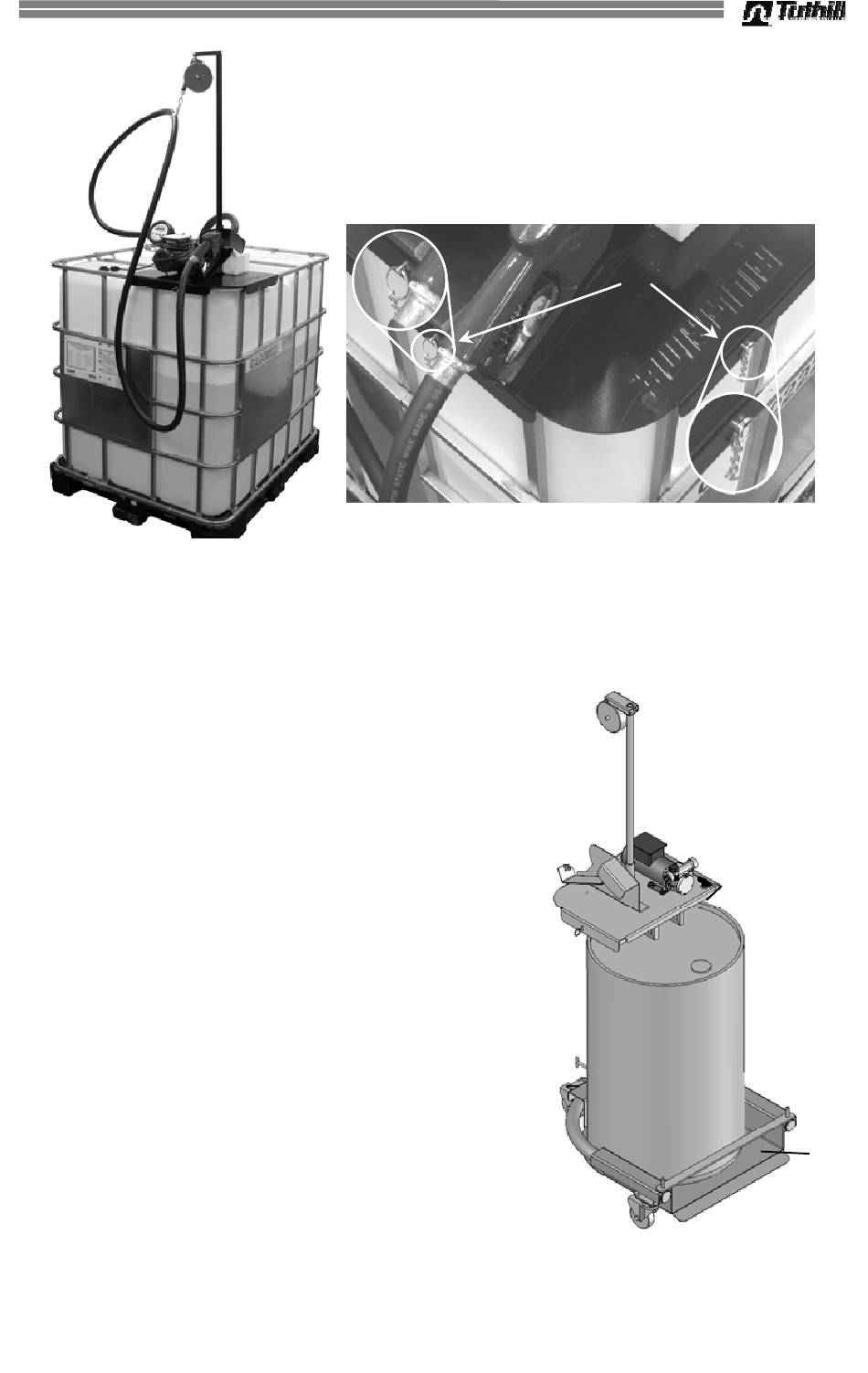

Pump with Tote Mount

For convenience and ease of exchange, Fill-Rite offers
a Tote Mount package that provides a solid, easy to
use dispensing platform for your DEF needs while
allowing quick, easy moves from one tote tank to the
next.
5
Latch Pins
Figure 3
Figure 4
A
B
