Instructions for installation and use – only for experts
P. 6/10

2.2 Minimum distances

DIR-350R / WIR-350R / DIR-500R / WIR-500R in wall installation
There must be a distance of at least 15mm between the reverse of the radiator and the nearest wall. The
underside and top must be open to enable the hot air to escape!
The distance between the front of the radiator and the nearest combustible object must be at least 150mm.
If the radiator is installed in the cabin ceiling
the minimum distances from Fig. 3 apply to
15 min
the reverse of the radiator.
If the radiator is installed in the field of vision,
a minimum distance of 800mm must be
complied with between the face of the user
50 min
and the radiator surface.

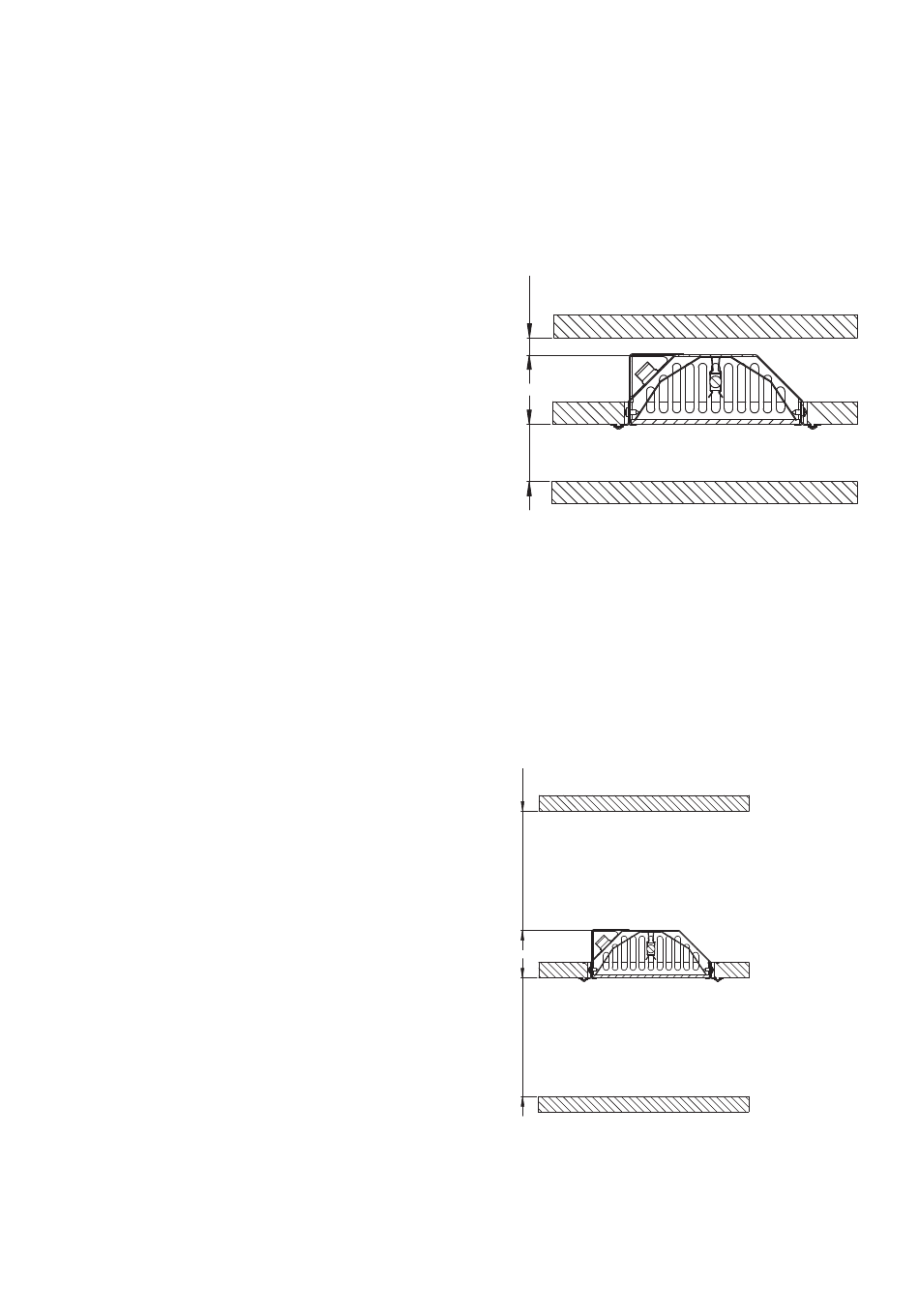

Fig. 2 – Minimum distances wall installation
DIR-750R / WIR-750R in ceiling installation
The radiator types DIR-750R and WIR-750R must only be installed in the cabin ceiling at a height
which is not easily reachable (>1.8m).
There must be at least 150mm of free, well ventilated space above the radiator. The distance from
the front of the radiator to the nearest combustible object must be at least 150mm.
f the radiator is installed in the field of vision, there
must be a minimum distance of 1200mm
between the face of the user and the
150 min
radiator surface.
150 min
Fig. 3 – Minimum distances ceiling installation
