5.2 Changing the wire-end ferrule reel

► Turn the lock on the front plate to open it.
► Swing the front plate downwards.
► Press the transport bolt fully upwards, and pull the wire-
end ferrule belt out of the transport unit.
► See section 5.2.

5.3 Setting the stripping length (only RS)

A letter is assigned to each wire-end ferrule:
16 mm = A 14 mm = B
► Check whether the applicable letter (A or B) is set to the
following four components:
1. Ferrule stop (Figure 3.2, 4)
2. Release device (Figure 3.2, 8)
3. Stranded wire fixing unit (Figure 3.2, 11)
4. Opening wedge (Figure 3.2, 1)
Configuring the ferrule stop

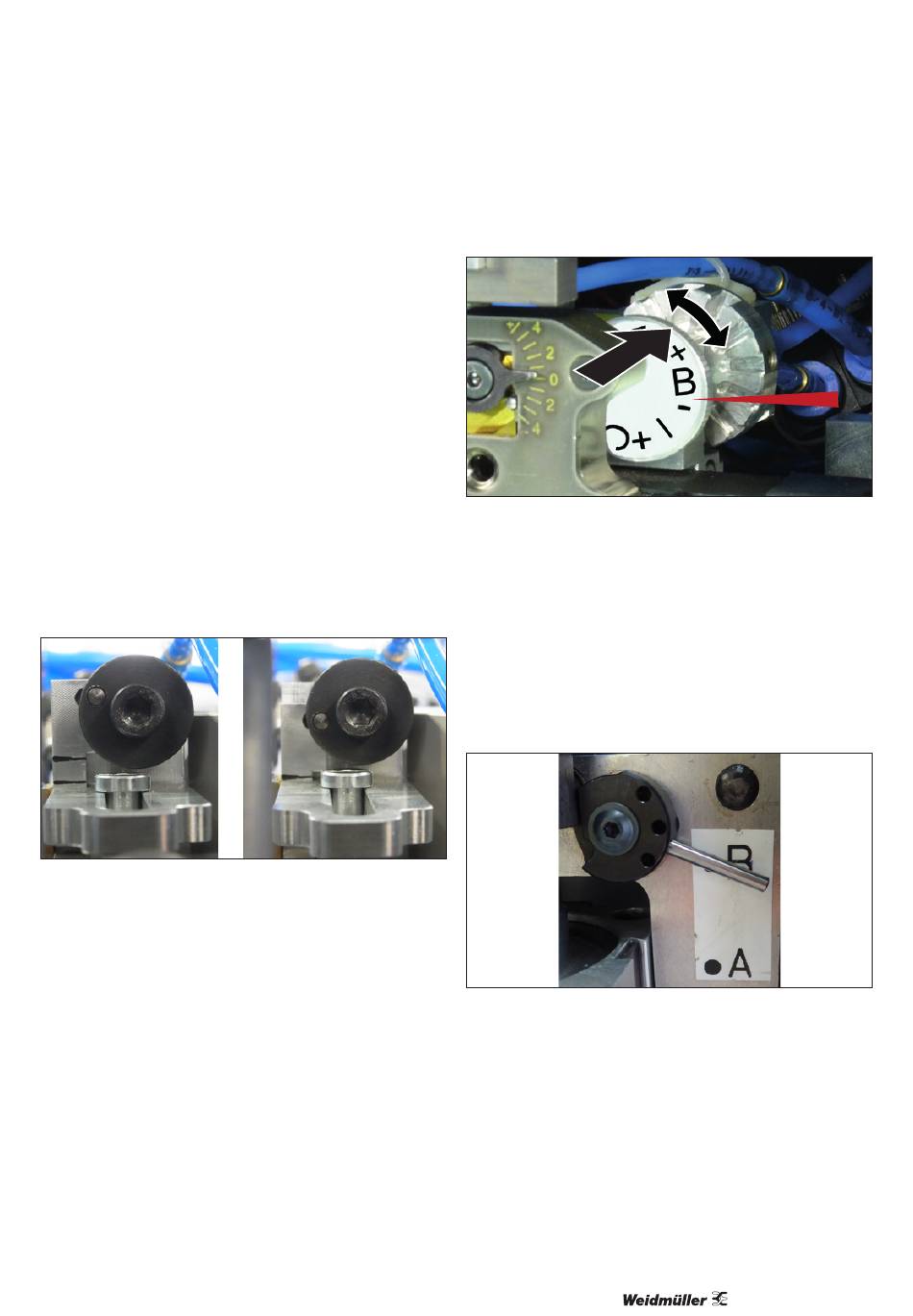

Figure 5.1 Ferrule stop configuration
► Turn the adjusting wheel with the hex key (5 mm) so that
the required value is visible.
Two dashes=A, one dash =B.
2549630000/00/09.2017
Adjusting the stripping length on the release device
Figure 5.2 Release device adjustment (set: B)
You can vary the stripping length using the setting.
► Press the adjusting wheel backwards and turn it so that
the required value is at the marked position.
► Release the adjusting wheel so that it latches in.
You can perform fine adjustments within the selected con-
figuration range (A or B):
► To increase the stripping length, turn toward "+"; to re-
duce the stripping length, turn toward "–".
Configuring the stranded wire fixing unit
Figure 5.3 Stranded wire fixing unit configuration (set: B)
► Pull the tool unit forwards and set the lever to the re-
quired value.
Setting up the machine
