PW12C3... Single point load cells

2.1 Connecting in four-wire and six-wire configurations

When load cells in a six-wire configuration are connected to amplifiers with a
four-wire configuration, the sense leads of the load cells must be connected to
the corresponding excitation leads.
6-wire cable connection (a choice of lengths: 1.5 m; 3 m; 6 m; 12 m)

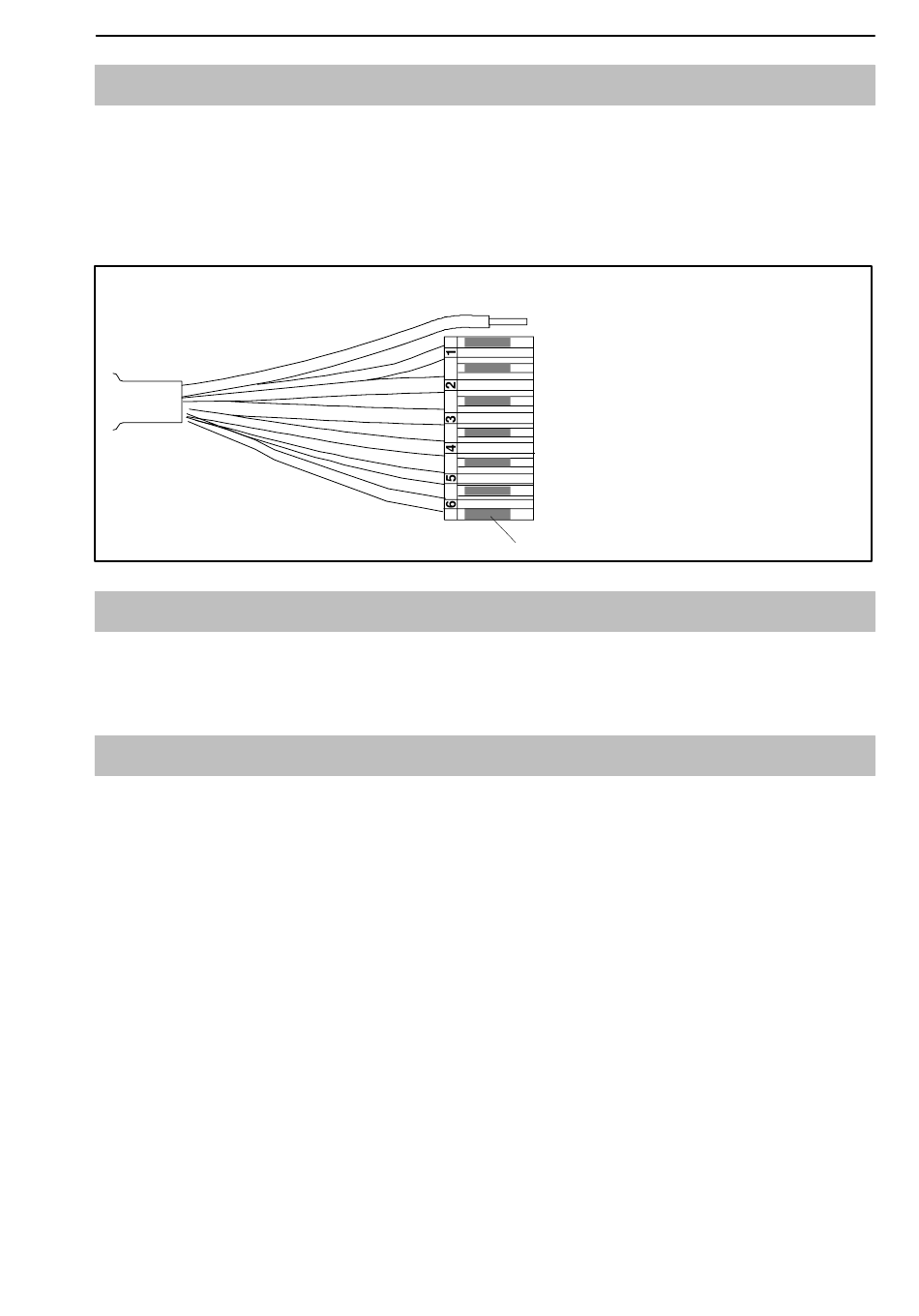

Schematic diagram of a Pancon connector (CE100F26-6), 6-pin

2.2 Shortening the cable

When the 6−wire configuration is used, the load cell's 6−wire cable can be cut
off without impairing measurement accuracy.

2.3 Cable extensions

You must only use shielded, low-capacitance measurement cables to extend
the cables, making sure that there is a proper connection with minimal contact
resistance.
The cable of a six-wire load cell can be extended with a cable of the same type.
A2422-2.0 en/de/fr
Shield (yellow) = cable shield
connected to load cell body
Contact 1 (white) = Signal (+)
Contact 2 (red) = Signal (−)
Contact 3 (black) = Excitation (−)
Contact 4 (blue) = Excitation (+)
Contact 5 (green) = Sense +)
Contact 6 (gray) = Sense (−)
blue marking
