ASSEMBLY PREPARATION

• Assemble the storage cabinet on a clean, level surface.
• Remove all items from the packaging box and ensure that all parts listed on page
4 are included.
• When installing parts that have more than one screw, tighten all screws by hand
before tightening them with the screwdriver.
ASSEMBLY INSTRUCTIONS

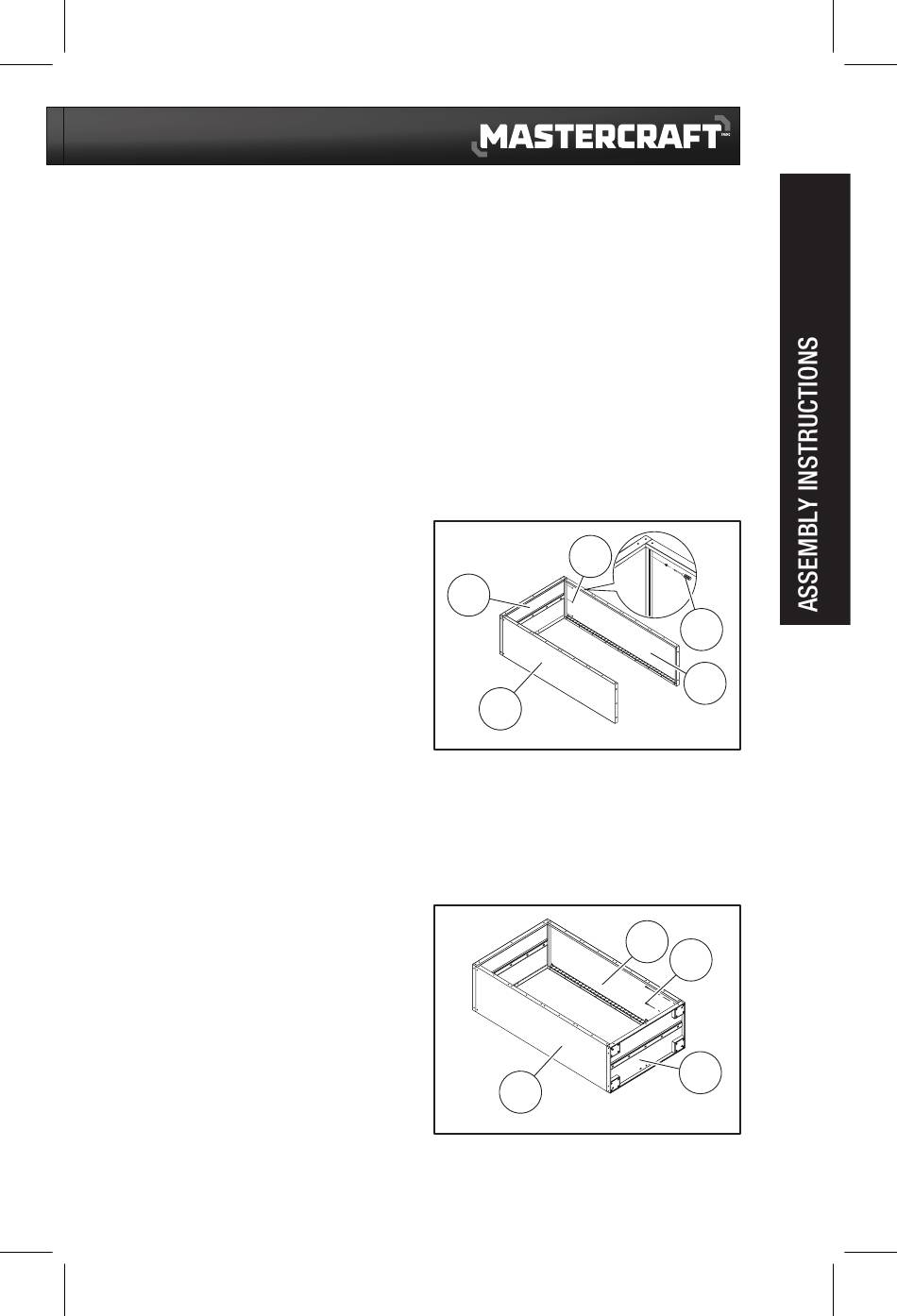

1. Attach the left panel (Part 1) and
right panel (Part 2) to the top panel
(Part 3). Insert three M4 x 8 screws
(Part 19) into each of the side panels
and tighten them using the screwdriver
(Part 21) (Fig. A).
Note:
Make sure the front of the cabinet frame
is facing down. Once the cabinet frame is
assembled, turn the cabinet frame to the upright
position to attach the back panels.
Note:
As the cabinet frame is assembled
upside down, use carpet or blanket while
assembling the cabinet so that cabinet front
does not get scratched.
2. Attach the left panel (Part 1) and
right panel (Part 2) to the bottom panel
(Part 4). Insert three M4 x 30 screws
(Part 20) into each of the side the
panels and tighten them using the
screwdriver (Part 21) (Fig. B).
Fig. A
19
3
2
Fig. B
2
4
21
1
1
20
4
