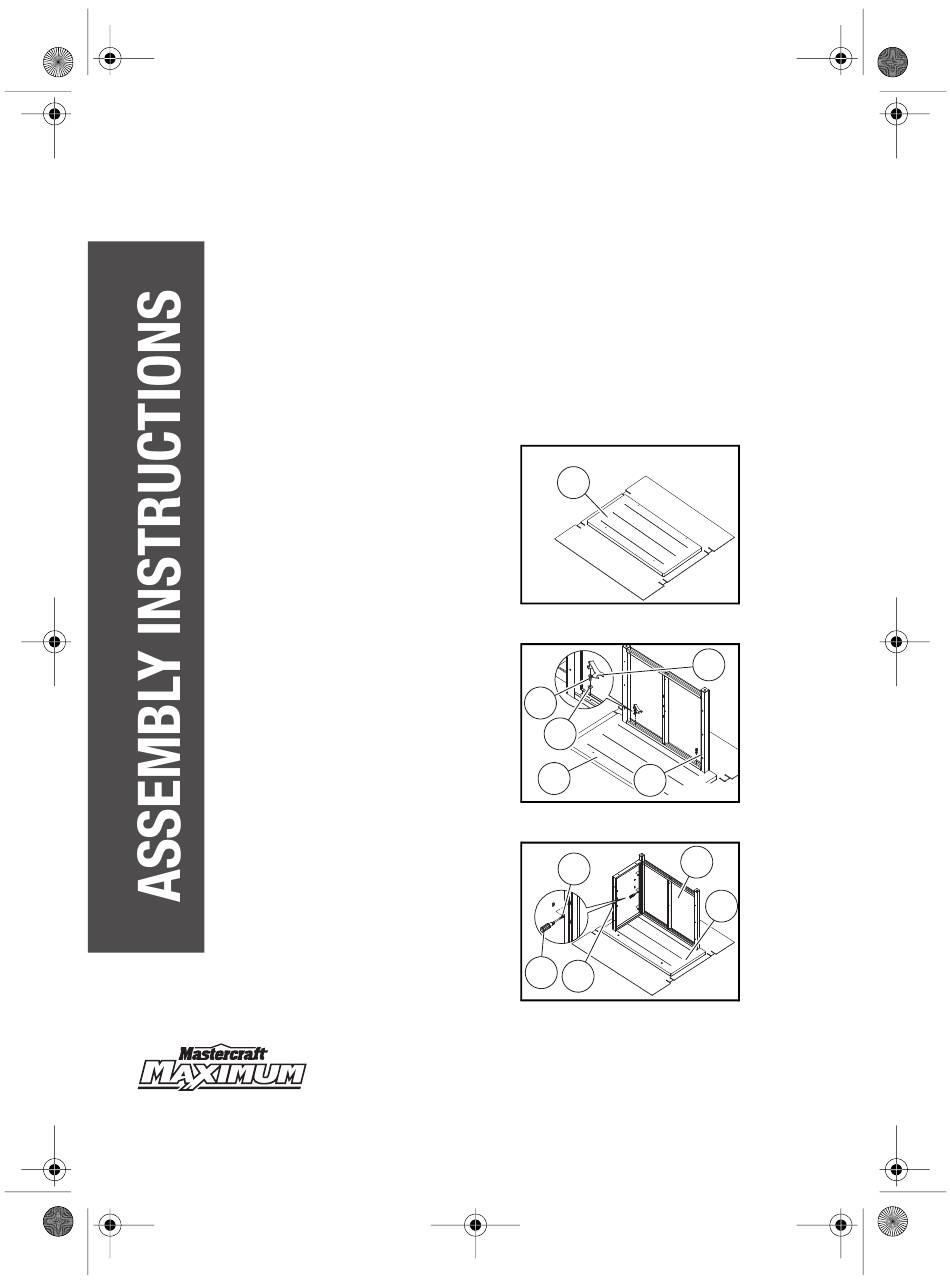

Assembly preparation

• Assemble the cabinet on a clean, level surface.
• Remove all items from the packaging box and ensure that all parts listed above are available.
• When installing parts that have more than one screw, tighten all screws by hand before
tightening them with the screwdriver and the wrench provided.
Note: A 13 mm socket wrench (not included) may be required to assemble the cabinet.
To assemble cabinet frame
1. Open the cardboard box containing the
wood board (1). Remove all parts packed
on top of the wood board
Note: The cabinet frame is assembled upside
down.
2. Attach the back panel (3) onto the back
side of the wood board (1) by securing a
bolt (14) and an M8 flat washer (15) on
each end of the panel. Tighten the bolt
with the provided wrench (19)
3. Set the right panel (5) at the right side of
the back panel (3) by placing the top of
the right panel on the wood board (1).
Attach the right panel to the back panel
by securing three M4 X 8 screws (16).
Tighten the screws with the provided
screwdriver (18)
(fig A)
.
(fig B) .
(fig C)
.
WORK & STORAGE CENTRE 068-1224-2
fig A
1
MC-681224-02
fig B
19
14
15
1
3
MC-681224-03
fig C
3
16
18
5 5
MC-681224-04
1
