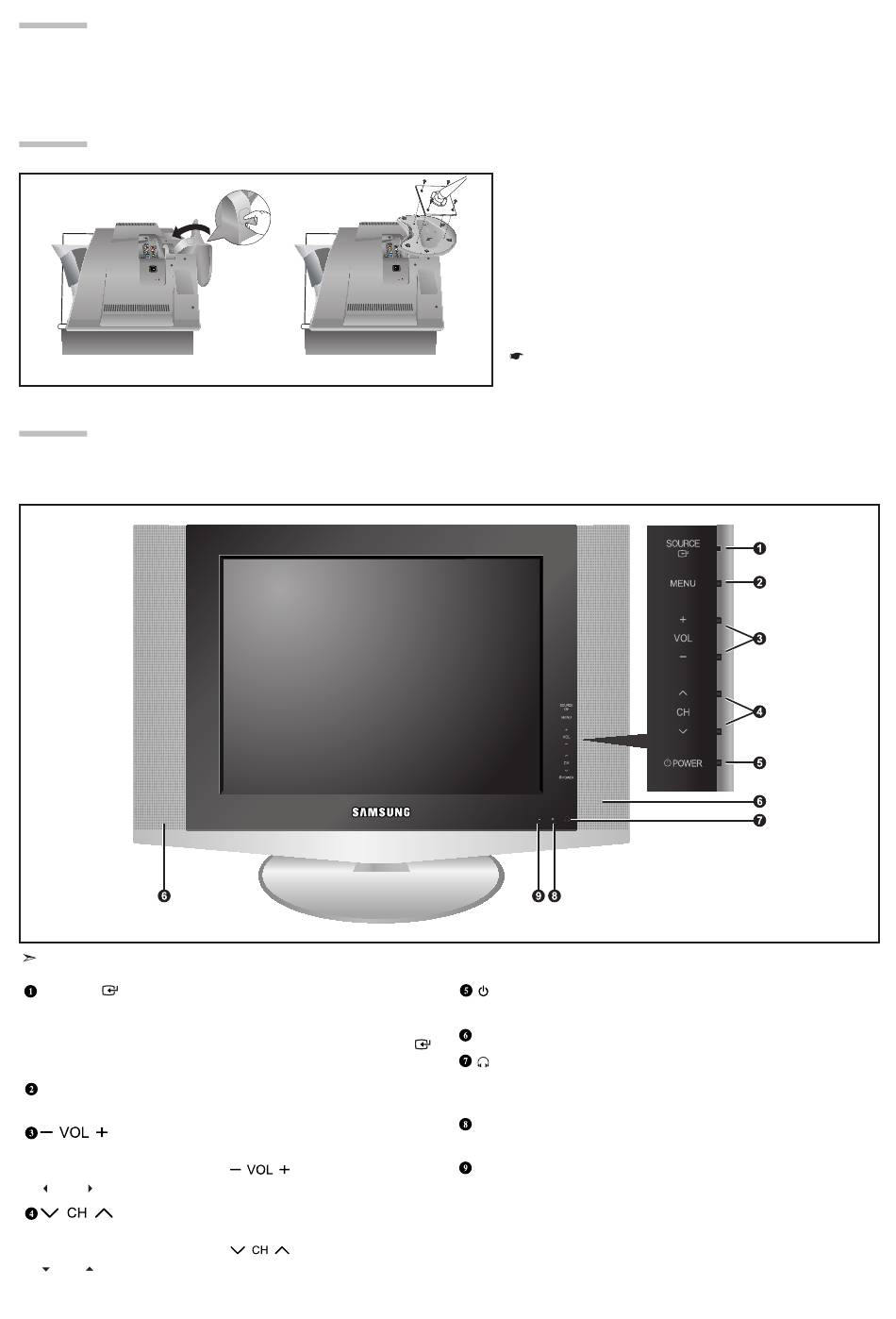

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall. For the detailed information on installing the Wall Mount,
see the instruction in the Wall Mount items. Contact a technician for installing the wall bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Installing VESA compliant mounting devices

(2)

Viewing the Control Panel

The buttons on the lower-right panel control your TV's basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
The product color and shape may vary depending on the model.
SOURCE
Toggles between all the available input sources
(TV, AV, S-Video, Component, PC).
In the on-screen menu, use this button as you use the ENTER
button on the remote control.
MENU
Press to see an on-screen menu of your TV's features.
Press to decrease or increase the volume.
In the on-screen menu, use the
and buttons on the remote control.
Press to change channels.
In the on-screen menu, use the
and buttons on the remote control.
Mounting pad
(Sold separately)
PUSH button
(3)
buttons as you use the
buttons as you use the
1. Place the TV faced down on a soft cloth or cushion
on a table.
2. Adjust the stand, pressing the "PUSH" button on the back
of the stand.
3. Align the mounting interface pad (not supplied) with the
holes in the stand bottom and secure it with the four
screws that come with the arm-type base, wall mount
hanger or other bases (not supplied).
When you adjust the stand, press the "PUSH" button on the back
of the stand.
POWER
Press to turn the TV on and off.
SPEAKERS
(HEADPHONE JACK)
Connect a set of external headphones to this jack for private
listening.
REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV.
POWER INDICATOR
Lights up when you turn the power off.
(The Power indicator is red in stand-by mode, blinks red when
you turn the power on, and turns off after the power comes on
fully. The indicator is green when you set the Timer on or off.)
English-3
