26 www.electrolux.com

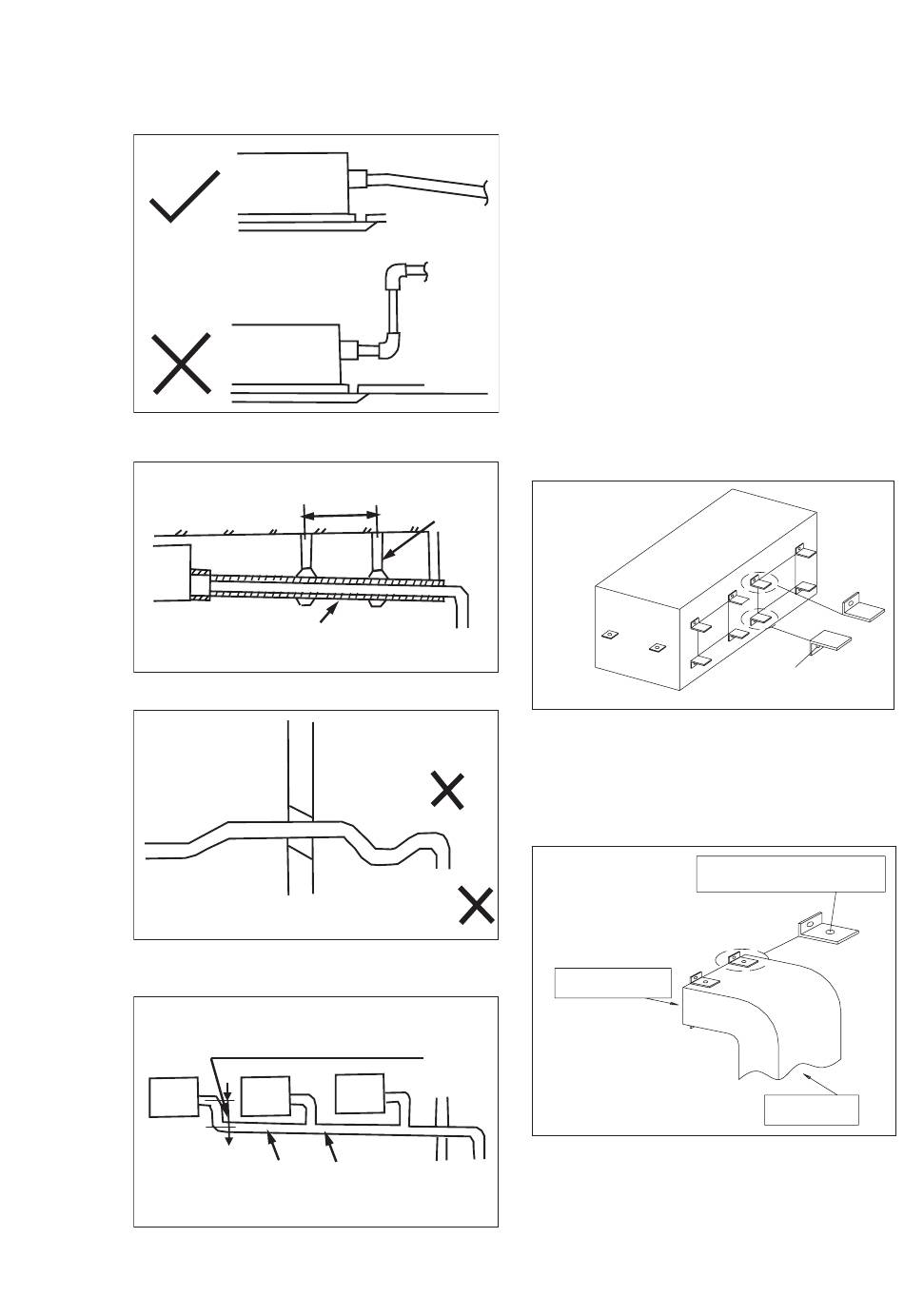

Fig.40
Fig.41
Fig.42
Fig.43
Lean Downward
over 1/100
1.5m~2m
Lean Downward over 1/100
Fold
Bend
As long as possible (10cm)
VP30
4.5 Instructions for duct

Duct design

Make the duct as short as possible due
to the low static pressure (nearly 0 pa) of
this unit.
Fix installation board
Fix the installation board on duct outlet
with the bolts in accessories. If the bolt is
self-provided, the length of bolt should be
appropriate and make sure not to damage
the inside of unit.
Fig.44
Supporting
Unit

Duct installation

Fix the duct on installation board with rivet.
Fig.45
Indoor unit
installation accessories
Fixation bolt
rivet (fix the duct)
Air outlet
