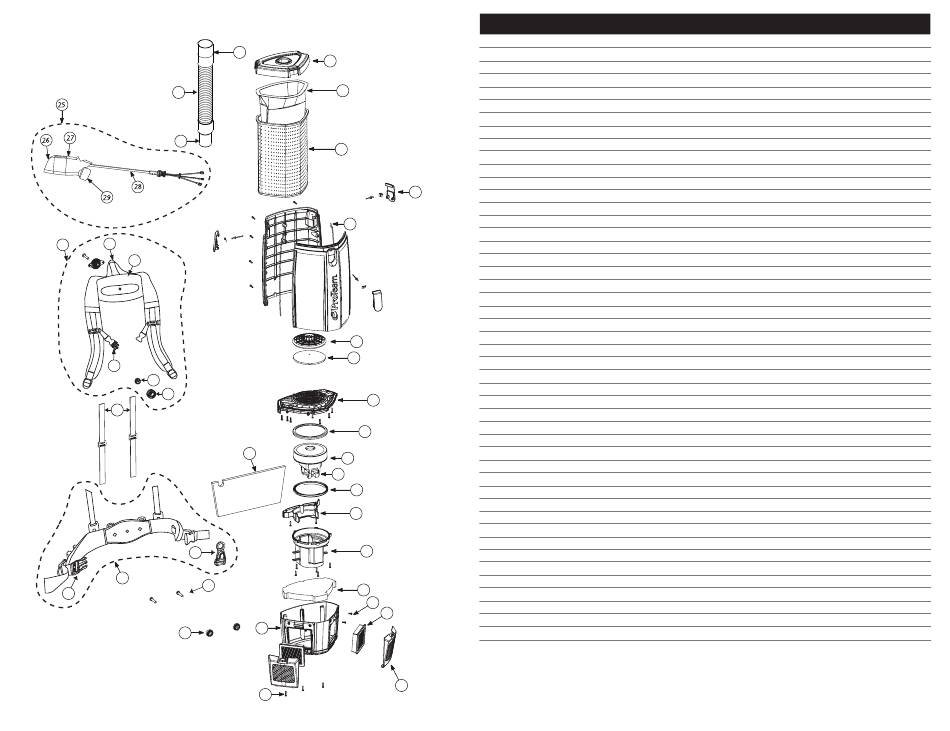

SERVICEMASTER 6/SERVICEMASTER 10 ASSEMBLY
No.
Product Name
1
101437
Replacement Fixed Hose Cuff (Black) 1 ½" - 1 ¼"
2
101705
Stretch Hose w/Cuffs (Black) 1 ½"
3
107220
Replacement Swivel Cuff (Black) 1 ½"
4
833948-2
Teal Cap
5
107313
Intercept Micro Filter (ServiceMaster 10)
107314
Intercept Micro Filter (ServiceMaster 6)
6
834000
Micro Cloth Filter (ServiceMaster 10)
834072
Micro Cloth Filter (ServiceMaster 6)
7
510179
Latch and Retainer w/Lock Nut & Screw
8
510180
Gasket for Tank (ServiceMaster 10)
510181
Gasket for Tank (ServiceMaster 6)
7
9
510183
Dome Filter w/Foam Media (Includes: 10)
10
510184
Foam Filter Media for Dome Filter
11
510193
Upper Motor Support w/Gasket
12
833951
Upper Motor Gasket
13
834036
Motor/Fan (120 V)
14
101720
Carbon Brush Set
15
833952
Lower Motor Gasket
16
510185
Cover Wire w/ 2 screws
17
510194
Lower Motor Support (5 screws)
18
834042
Triangular Lower Foam Pad
19
834043
Rectangular Upper Foam Pad
20
808380-0
Screw Pan CR #8 x ½"
21
510188
Housing Assembly Lower w/Screws
22
107315
HEPA Filter (2 pack)
23
833954
Exhaust Filter Door
24
808380-22 Screw Pan CR #8 x ¾"
25
836225
Switch Cord and Power Cord Assembly (Includes: 26-39)
26
106066
On/Off Switch
27
836554
Switch Box
28
836480
Power Cord Assembly
29
836479
Power Plug Assembly
30
840112
Upper Harness Assembly (Includes: 31-35)
31
510191
Sternum Strap Buckle (latch and keeper)
32
101737
Carry Handle w/Rivet Set
33
834049
Upper Pad Harness
34
834050
Pivoting Ball
35
834053
Outer Support Retainer
36
510192
Tensioning Straps
37
840114
Lower Harness Assembly (Includes: 38, 39)
38
102604
Cord Holder
39
510301
Waist Belt Buckles and Straps Set
840011
Harness Assembly Complete (includes 30, 36, 37)
40
834051
5
/
" - 18x1 -
16
41
510186
Harness Spacers
101678
50' Extension Cord (Not Shown)
23
3
/
" Lock Screw (2 screws)
8
Qty
1 ea.
1 ea.
1 ea.
1 ea.
10/pk
10/pk
1 ea.
1 ea.
1 set
2 ea.
2 ea.
1 set
1 ea.
1 set
1 ea.
1 ea.
1 set
1 ea.
1 set
1 set
1 ea.
1 ea.
1 ea.
1 set
1 set
1 ea.
1 ea.
1 set
1 ea.
1 set
1 set
1 set
1 set
1 set
1 set
1 set
1 ea.
1 ea.
1 set
1 set
1 ea.
1 set
1 set
1 set
2 ea.
1 ea.
