Disassembly

REMOVING THE FRONT PANEL

!
Electric Shock Hazard
Unplug unit before servicing or cleaning. The
agitator is operated by a timer and can agitate at
anytime.
1. Shut off water to ice machine.

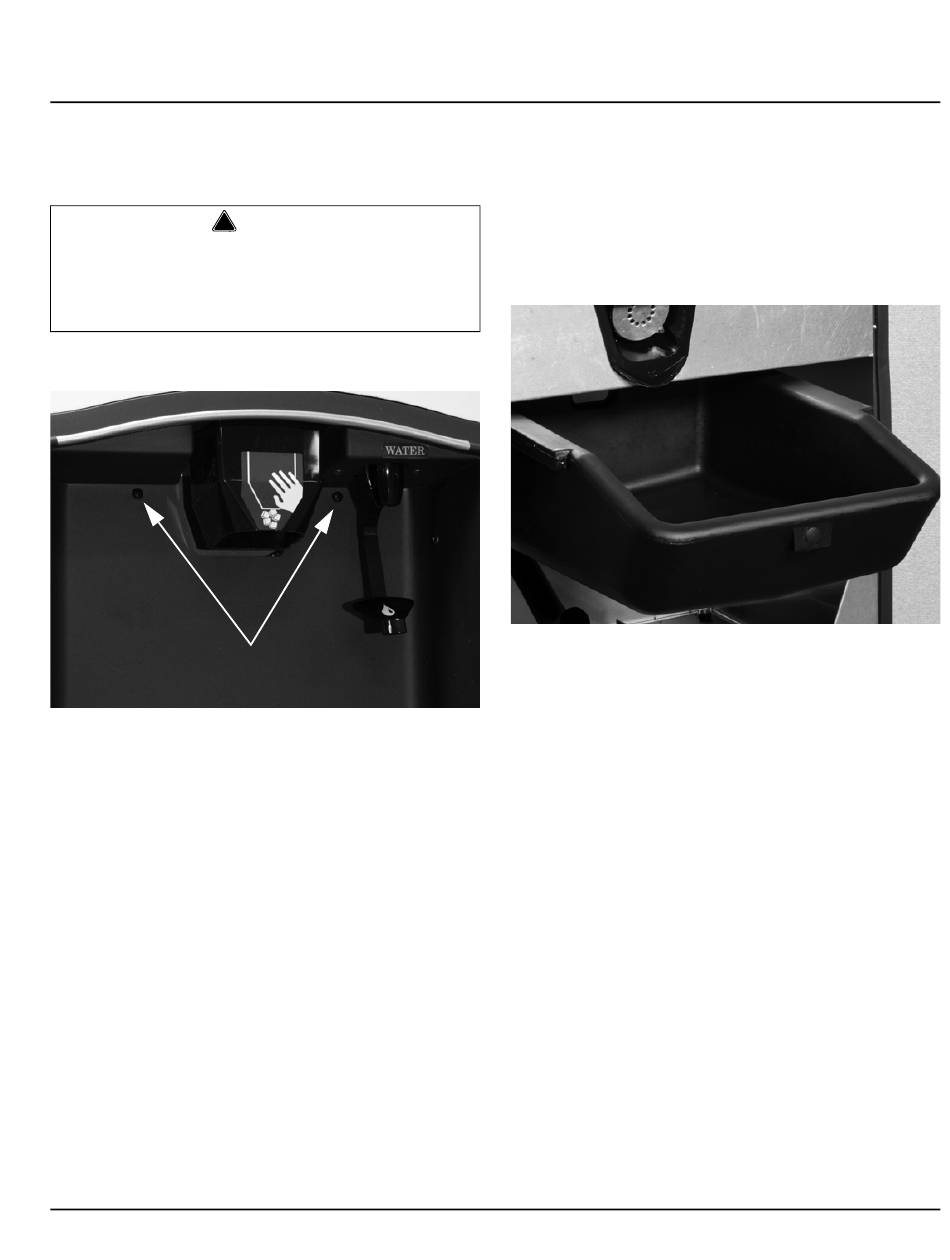

Remove Screws to Disengage Door
2. The 2 screws are retained by o-rings. Loosen the
2 screws with a Phillips screwdriver.
3. Hold the front panel of the dispenser on both sides,
pull top forward to release top catch and then tilt the
panel forward. The front panel will be resting on the
catch hooks at the bottom of the panel.
4. SFA-191/291 ONLY – A water line is attached to the
front panel. If complete removal is required,
disconnect main water supply, relieve water
pressure and remove water line from water valve.
5. Lift the front panel off the catch hooks and set the
panel aside.
Part Number 000007646 11/10

Maintenance

Warning
Section 4

REMOVING THE DRAIN PAN

1. The drain pan is visible when the front panel of the
dispenser is removed.
2. Loosen clamp and remove drain hose from drain
pan.
3. Slide the drain pan forward and pull out.
4. Remove scrap ice if any scrap ice has accumulated.
5. After cleaning, slide drain pan back into place.
